HHO Plus DC2000 - Battery to Relay Connection

DC2000 – Installation Manual 34
HHO Plus, Alternative Energies, Lta – Travessa das Serras 33, Vieira de Leiria, Portugal – Tel. 00351244697116 – Email: info@hhhoplusgas.com

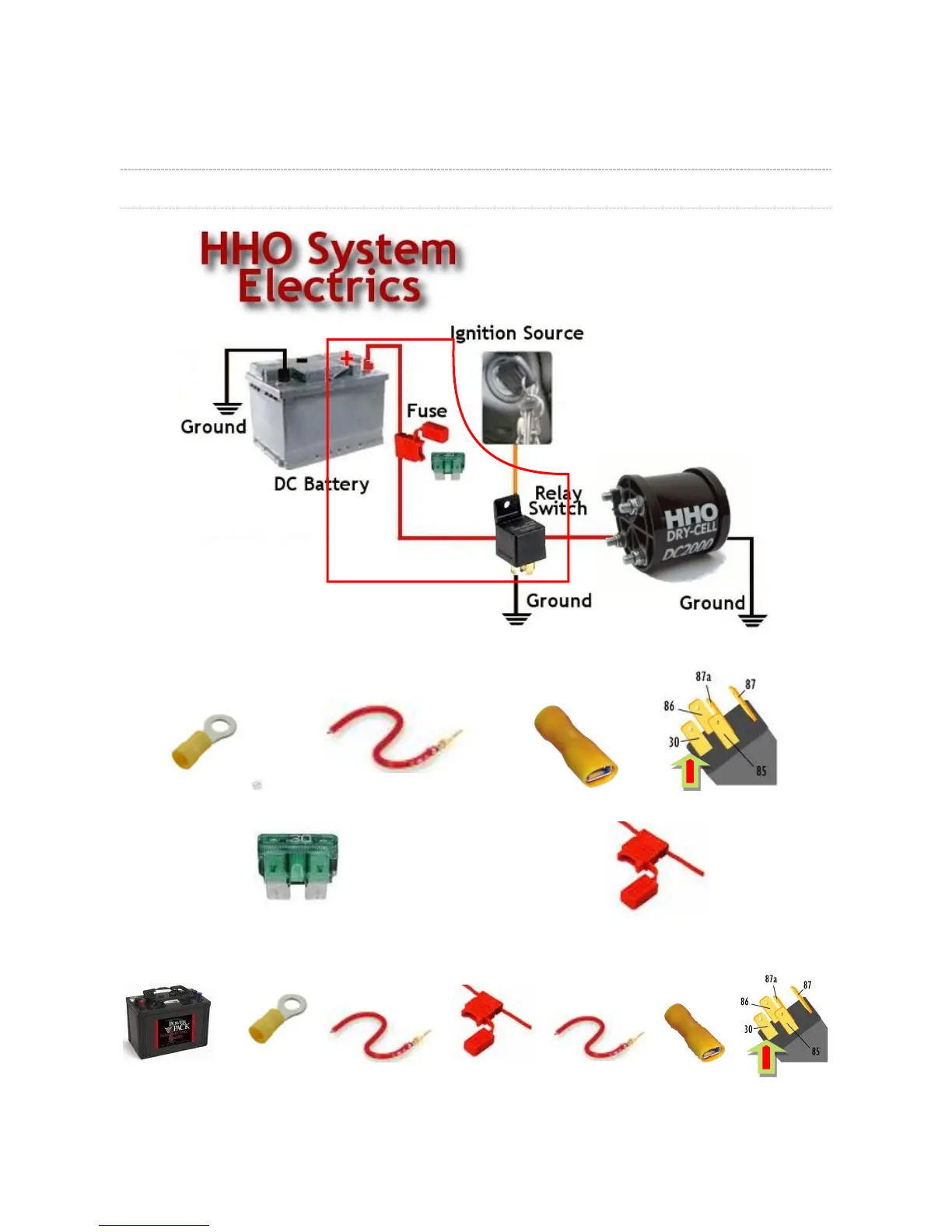

Electric connection from the battery to the relay (Position 30)
Materials to make the connection
1
1
1
1
Ring crimp terminal
Red electric cable
Female crimp
Relay
1
1
Blade type car fuse
Blade fuse-holder
Sequence of parts to make the connection
+ + + + + +
