HHO Plus DC2000 - Relay to Ground Connection

DC2000 – Installation Manual 36
HHO Plus, Alternative Energies, Lta – Travessa das Serras 33, Vieira de Leiria, Portugal – Tel. 00351244697116 – Email: info@hhhoplusgas.com

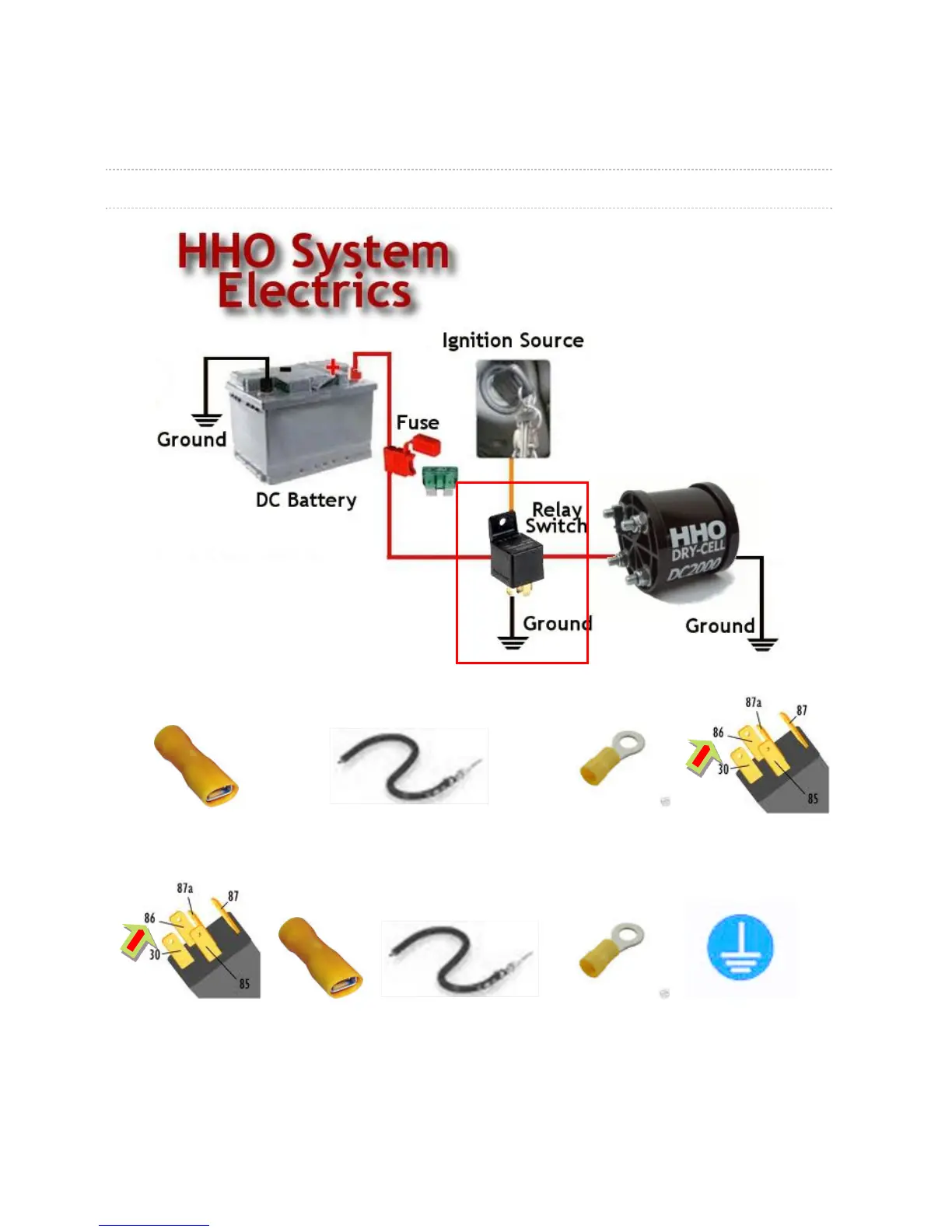

Electric connection from the relay (Position 86) to the Ground
Materials to make the connection
1
1
1
1
Female crimp terminal
Red electric cable
Ring crimp terminal
Relay
Sequence of parts to make the connection
+ + + +
