4.5 Backup
This unit supports backup by external SATA DVD Writer and USB Flash, through the USB port on the front
panel. User also can make backup by IE browser via internet. Refer to 7.3.2 Remote backup.
Step1: enter into backup configuration; refer to Fig 4-4:

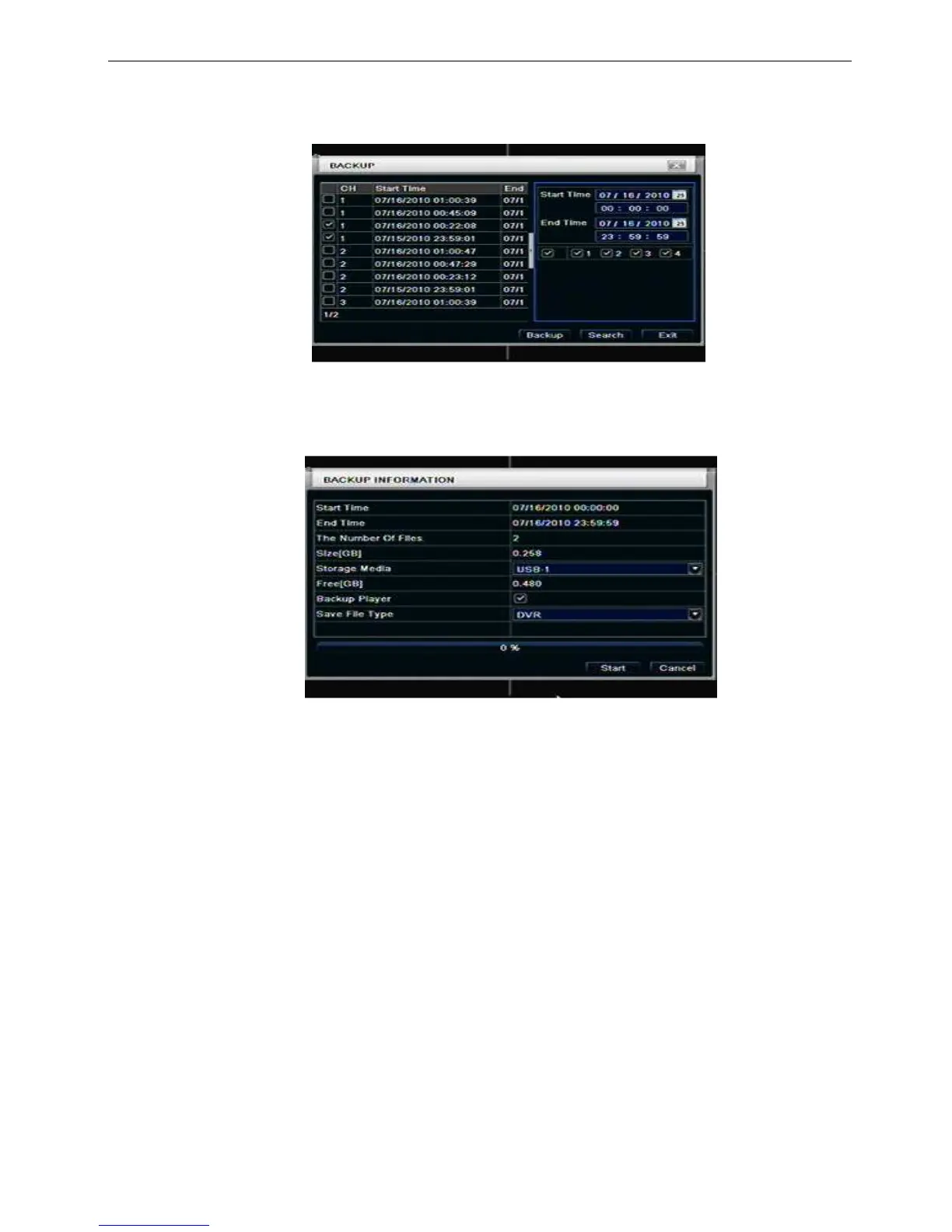

Fig 4-4 backup configuration
Step2: set the start & end time, select channels, click Search button, the searched data will be displayed in
the data backup list box
Step3: checked a data file or tick off “All” to select all data files , click Backup button, a dialog box will
pop-up as Fig 4-5:
Fig 4-5 backup information
Step4: in the backup information interface, user can check the relevant information of backup files, storage
type, save file type, etc. click Apply button to starting backup.
Note: when the monitor resolution is VGA800*600, the file manager interface will appear a hide
button, click this button, the whole interface can be expanded.
