A8 GNSS RTK System Operation Manual
Control Panel

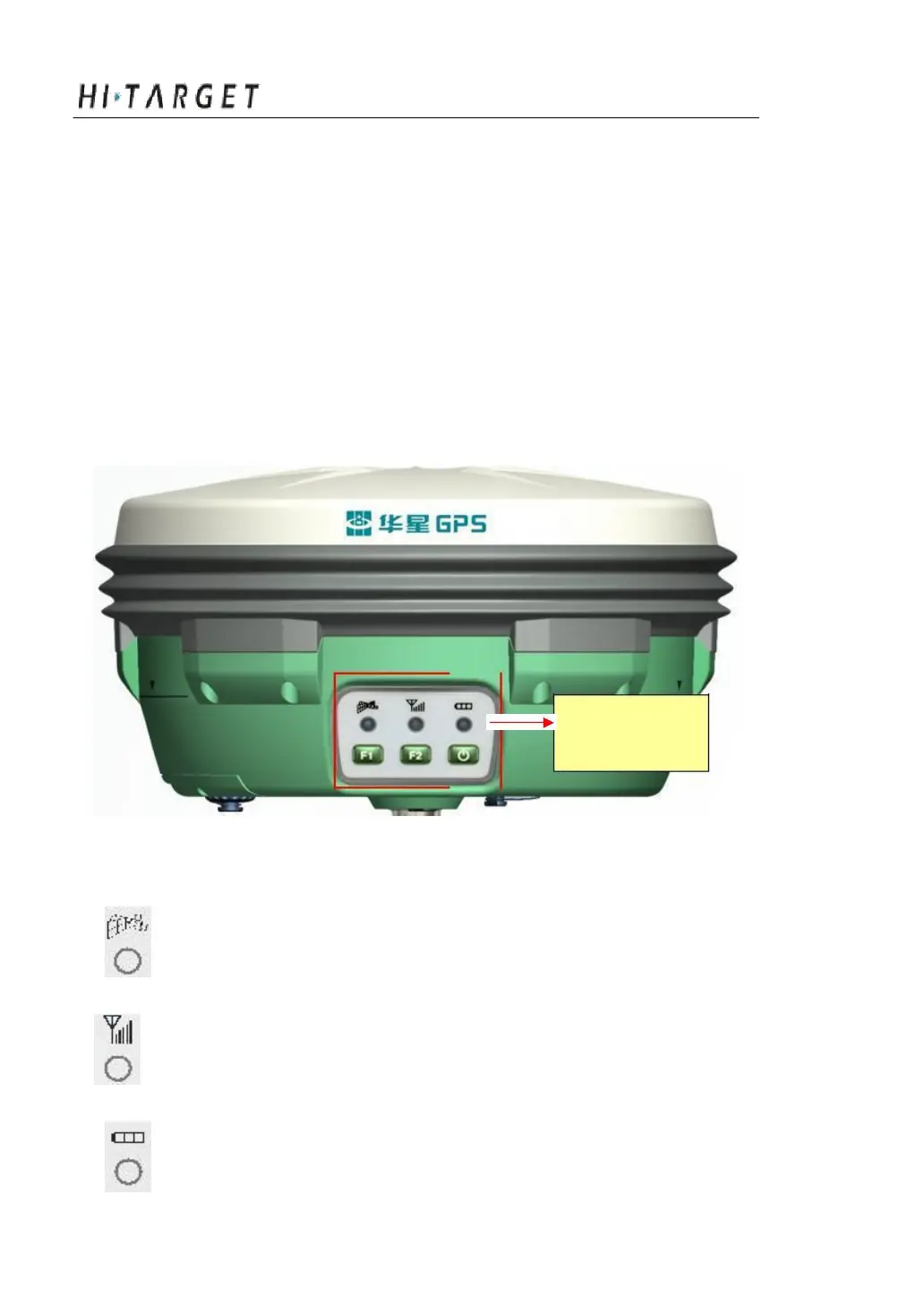

Figure 3-2, in the middle of red frame of A8 receiver is control
panel. And the control panel contains the F1 key (function key 1), F2
key (function key 2) and the power button, 3 indicator leds which are
respectively satellite led, the status led (dual-color led ), the power led
(dual-color led). The simple three buttons include all th e features
setting of the A8 receiver.
Control Panel
Figure 3-2 Control Panel
Satellite led（green led）
Status led（red-green dual-color led）
Power led(red-green dual-color led)
9
