Hi-Target A8 Series User Manual

Introduction
This Section will introduce t e outlook and operation for the main
ports and accessory of A8 GNSS RTK system. The Technical Parameters
will be a little different according to your purchase order. Please make
sure about your configuration then find out Technical Parameters
correspondingly.
Five-pin Port and Eight-pin Port

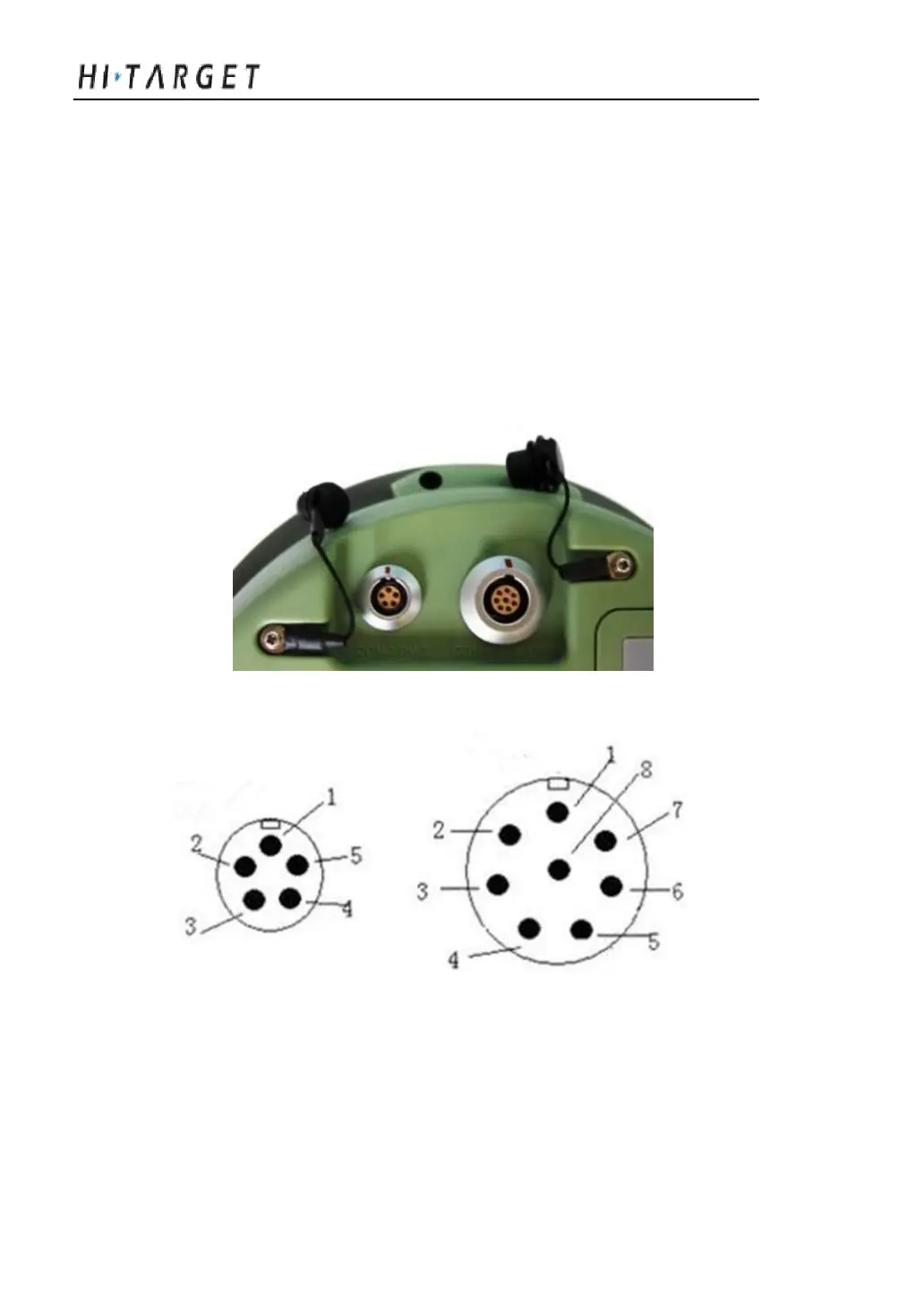

Figure 8-1 Five-pin Port and Eight-pin Port
Figure 8-2 Five-pin Port Eight-pin Port
1. Five-pin port: named as COM 2/PW2, Generally used for the
connection between the receiver mainframe and the external data
link or the external power supply
64
