VertX V1000 (CS) Quick Installation Guide
St e p 2 Cont act

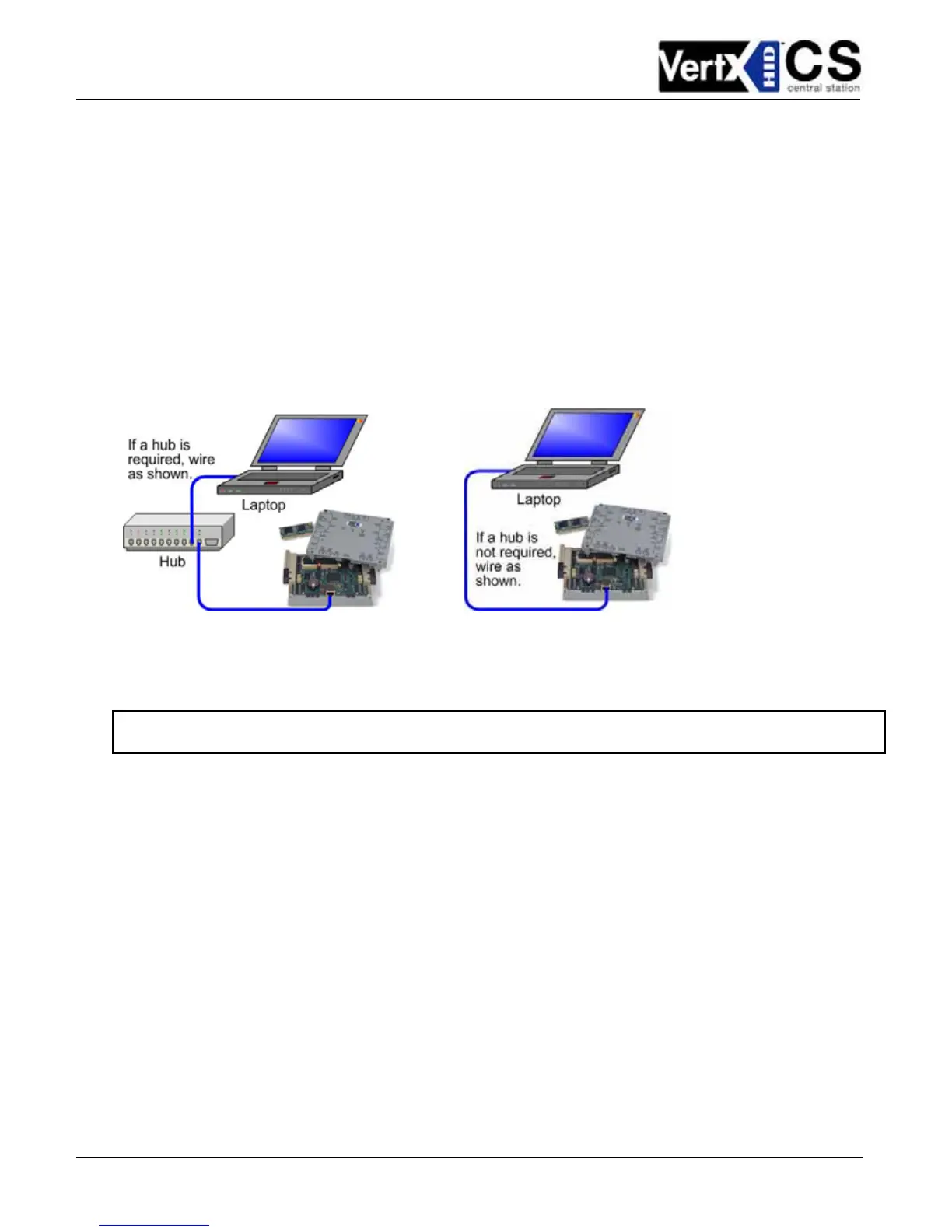

Contact the VertX controller through two methods.
• Discovery Client (DHCP or Static TCP/IP Configurations Only)
• Virtual Port
2 .1 Discover y Client
The Discovery Client provides a technician with a method of locating all of the VertX controllers that are
connected to a network. Controller information is displayed providing the ability to ‘blink’ the VertX controller
Comm LED and configure the unit by launching a browser pointed at the Configuration GUI of the targeted
controller. When the Discovery Client is launched, a discover command is issued and the Configuration GUI
screen is populated with the results. Also provided is the ability to refresh the Configuration GUI screen on
command.
Use this feature when the VertX controllers and network have been installed and are operational, but before the
VertX controller(s) has been configured. At this point, all of the controllers on a network will have the same host
name and unknown IP addresses (assuming a DHCP environment). In this scenario, the only mechanism
available to configure a controller is the serial debug port or by only placing one controller on the network at a
time. The Discovery Client provides an easy to use mechanism to configure controllers.
2 .1 .1 I nst alla t ion
®
An operating system of Windows XP with .NET Framework v2.0 installed is a requirement for the Discovery
Client to function properly.
1. The Discovery Client can be downloaded by placing the following path in an Internet browser.
http://www.hidcorp.com/downloads/DiscoveryClient.zip
2. The File Download Open dialog will display, click
setup.exe3. When the contents of the zip file display, double-click
Run4. If a security warning is received, click
Next 5. From the Discovery Client Welcome page, click
Next 6. Select the Installation folder and who should have access to the Discovery Client, click
Next7. Confirm the installation location, click
8. Click Close
2 .1 .2 Use
The following provides information on how to access and use the Discovery Client.
1. Enable VertX controllers on the network
2. Click Start > Programs > VertX Tool Box > Discovery GUI to access the Discovery Client
3. Returned is a list of controllers attached to the network. If there is more than one controller listed,
controllers can be identified using the MAC Address label on the unit
Blink ON
4. If unsure of a controllers physical location click
to start the Comm LED blinking on the
controller. Note the name on the button will change to
Blink OFF. When verification of the controller
is complete, click
Blink OFF
5. Click Configure Unit Basic Configuration to open the page of that controller
6. Go to Step 3 Configure, page 12
October 2006 Page 11 of 20
© 2006 HID Global Corporation. All rights reserved.
