VertX V1000 (CS) Quick Installation Guide

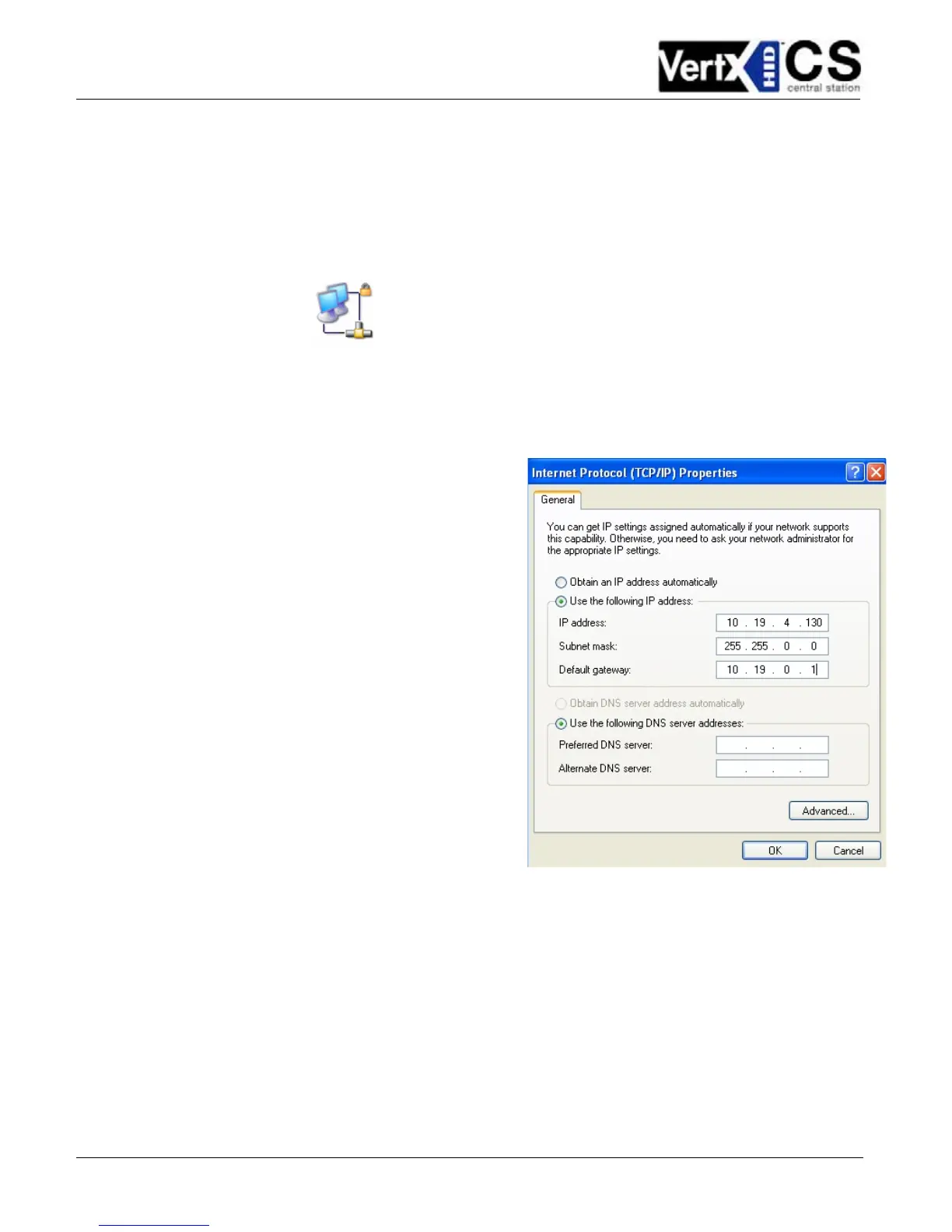

2 .2 Virt ual Port
Contact a VertX controller by directly connecting the computer to the controller using an Ethernet cable. By
default, every controller is configured to respond to a fixed address:
169.254.242.121.
1. Ensure you are running a Windows 2000 or XP computer
2. Disconnect your Windows computer from its hub or network
3. Connect the Windows computer to the controller with an Ethernet cable
Start Start4 Using the Windows™ button, click > Run
5. Enter ipconfig /renew -- wait for DHCP to timeout (approximately 60 sec). The computer will
acquire a 169.254.x.x address
6. Access a web browser and enter
169.254.242.121 Address into the field. The controller is now
accessible through this Virtual Port
St e p 3 Configure
This section describes the communications configuration that enables the controller to communicate with the
central station host automation software.
There are three methods of communication possible on a V1000 controller:
• Dynamic Host Configuration Protocol (DHCP) TCP/IP Addressing
• Static TCP/IP Addressing (see
Configuration Checklist, page 18 for a list of criterion needed for a Static
TCP/IP configuration)
• Modem (see
Configuration Checklist, page 18 for a list of criterion needed for a modem configuration)
Enter only the configuration that relates to your sites specific installation.
Note: Review the
central station automation software, page 16 for requirements before continuing.
3 .1 Vert X Com m unicat ions
The VertX communications configuration is provided through a browser-based application called the
Configuration GUI (Graphic User Interface).
3 .1 .1 Configur ation GUI Login
The Login screen for that controller will display.
User name admin In the field, enter (leaving the Password OK field empty). Click .
3 .1 .2 Basic N etw ork Setu p
Connection SelectionSelect the radio button to establish your systems specific communication type.
Choices include:
• Network
• Modem
• Network with Modem Backup
Default network information will load. Before making changes, review the default network information.
October 2006 Page 12 of 20
© 2006 HID Global Corporation. All rights reserved.
