DOS

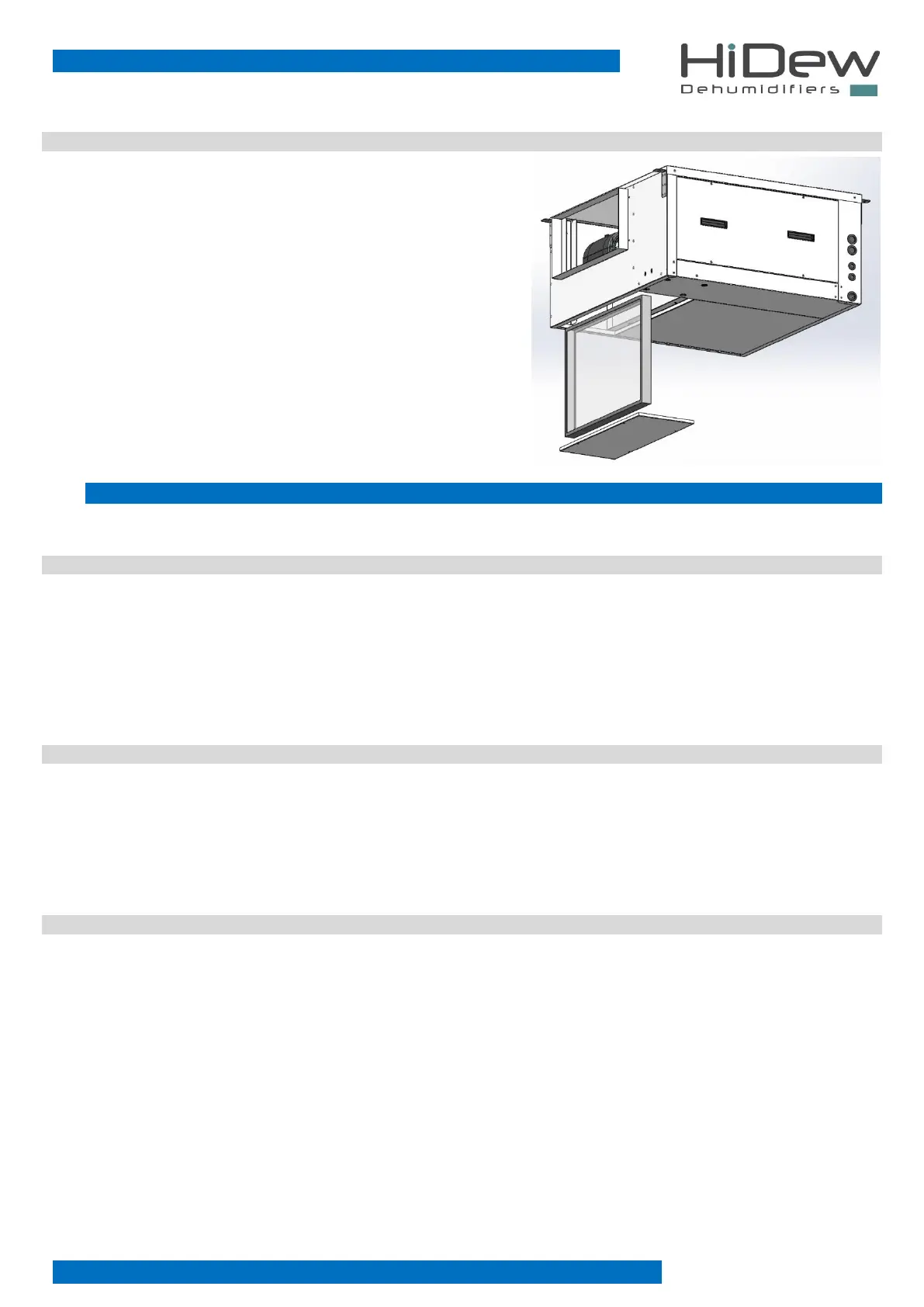

For routine maintenance simply remove the lower panel as shown in the
figure by unscrewing the screws and the filter will also descend with the
panel.
5.3 EXTRAORDINARY MAINTENANCE
5.3.1 Cleaning of the condensate collection tray and condensate drain pipe
DDS - DCS
1. Completely loosen the screws at the top, lift the hood and remove it (DDS only)
2. Loosen the screws and remove the right angled panel that closes the compartment containing the electrical panel and
compressor
3. Loosen the screws and remove the left panel that closes the compartment containing heat exchange coils, fan and tank
4. Clean the condensate collection tray with a damp cloth and check that the condensate drain is not blocked
5. Reassemble everything following the procedure in reverse
DVS
1. Remove the lower front panel as for filter cleaning
2. Loosen the visible screws and remove the upper front panel
3. Loosen the visible screws and remove the front plugging
4. Clean the condensate collection tray with a damp cloth and check that the condensate drain is not blocked
5. Reassemble everything following the procedure in reverse
DOS
1. Loosen the screws that hold the filter panel and remove it together with the filter closing panel the filter itself will also
descend
2. Loosen the screws of the side access panel to the compressor compartment and remove the panel
3. Accessing from the compressor compartment and from the rear of the machine, remove the screws that hold the lower
panel of the machine to access the tank
4. Remove the lower panel by pushing it towards the machine outlet
5. Disconnect the condensate drain hose from the tray
6. Loosen the screws that hold the tank. First proceed with those that connect the tank to the access panel to the resistances,
then from inside and outside the machine remove those that support it
7. Remove the tray
8. Clean the condensate collection tray with a damp cloth and check that the condensate drain is not blocked
9. Reassemble everything following the procedure in reverse
