2-CHANNEL AMPLIFIERS: X3-ZEUS / X3-COLOSSUS
24
LINE INPUT
REMOTE IN REMOTE OUTBALANCED INPUT
POWER
PROTECT
SUBSONIC LOW PASS
STEREO
MONO
12dB
24dB
LINE OUTPUT
L
R
HIGH PASS LEVEL BASS BOOST
X-OVER MODE
VICE VERSA
LINE OUTPUT SIGNAL
HI PASS LEVEL
REMOTE
10Hz 1.2 kHz 6V 0.2V
POWER
PROTECT
CH 2
LINE INPUTLINE OUTPUT
CH 1
LOW PASS
30Hz 150Hz
X-OVER
LP/BP HP FULL
BASS BOOST
0dB 18dB
LOGO
BADGE
WHITE
BLUE
ZXi9002
2x 450 Watts
HI PASS LEVEL
REMOTE
10Hz 1.2 kHz 6V 0.2V
POWER
PROTECT
CH 2
LINE INPUTLINE OUTPUT
CH 1
LOW PASS
30Hz 150Hz
X-OVER
LP/BP HP FULL
BASS BOOST
0dB 18dB
LOGO
BADGE
WHITE
BLUE
ZXi9002
2x 450 Watts
LINE INPUT
REMOTE IN REMOTE OUTBALANCED INPUT
POWER
PROTECT
SUBSONIC LOW PASS
STEREO
MONO
12dB
24dB
LINE OUTPUT
L
R
HIGH PASS LEVEL BASS BOOST
X-OVER MODE
VICE VERSA
LINE OUTPUT SIGNAL
VICE VERSA
The so-called VICE VERSA outputsignal is a special crossover configuration, which is only applicable, if the LINE OUT of the HIFONICS
X3-ZEUS or X3-COLOSSUS amplifier is used to provide an audiosignal to an additional amplifier. The complete crossover modifications
for both amplifiers are only done by the HIFONICS X3-amplifier. On amplifier 2 no crossover modifications are necessary, because amplifier
2 gets a already modificated signal by the HIFONICS X3-amplifier.
In LP/BP-Mode (Example 1) a highpass signal will be transferred to amplifier 2.
In HP-Mode (Example 2) a lowpass signal will be transferred to amplifier 2.
Here are two examples for the VICE VERSA function:

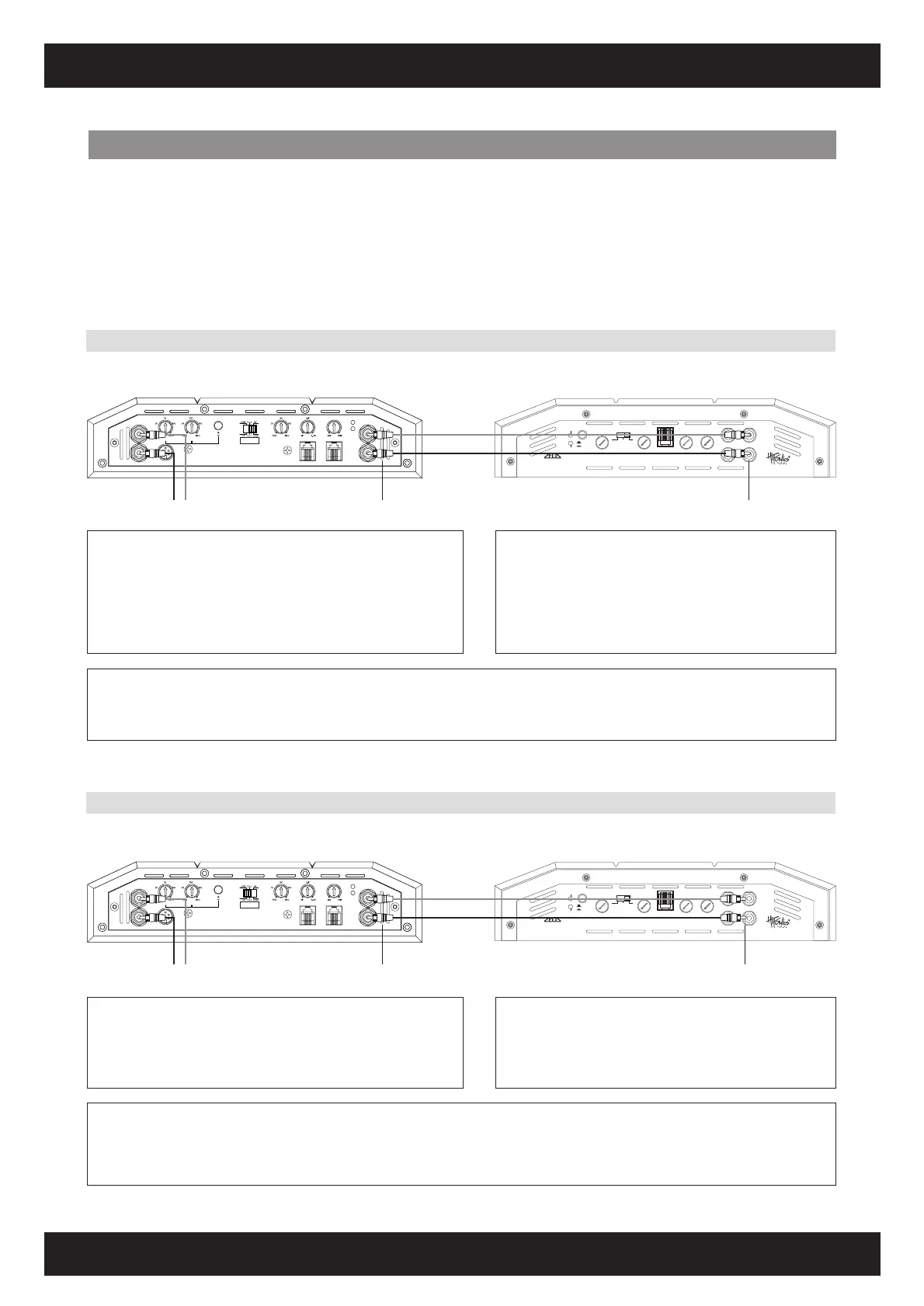

INTERCONNECTION EXAMPLES: VICE VERSA
HiFONICS X3-ZEUS / X3-COLOSSUS
for subwoofer operation (mono)
AMPLIFIER 2 (any device)
for stereo-speaker-system (high pass-mode)
Connect to head unit CINCH/RCA LINE OUT CINCH/RCA LINE IN
Settings HiFONICS X3-Amplifier:
The X3-Amplifier must be in LP/BP mode, this means the on this amplifier interconnected
speaker or subwoofer is provided with a lowpass/bandpass-signal.
Now the VICE VERSA outputsignal on LINE OUT could be modified by the HIGH PASS-
controller of the X3-amplifier.
Settings amplifier 2:
The additional amplifier must be switched to FULL operationmode (Fullrange)
for the regular loudspeaker operation.
The crossover settings will be taken over by the X3-Amplifier. Only the level
controllers needs to be aligned accordingly. Attend in this case the owner’s manual
of the regarding amplifier.
NOTE: If amplifier 2 owns a variable lowpass-filter, it’s possible to generate a
bandpass-signal (e.g. for providing kickbass woofers).
ADVANTAGE:
This VICE VERSA-constellation affords you to use the high power effciency of a X3-ZEUS or X3-COLOSSUS amplifier for the interconnected subwoofer and to use at the same
time the very high-valued highpass filter (variable between 10 - 4000 hz) also as the audiophile sound characteristics for the to amplifier 2 transferred and already modified audiosignal.
Thereby amplifier 2 works as pure power-amplifier without any pre-amplifier modifications and provides the usual X3-amplifier high-end-sound for the interconnected speakers,
without beeing a X3-model. As a matter of course this constellation also works with two X3-models.
Settings HiFONICS X3-Amplifier:
The X3-Amplifier must be in HP mode, this means the on this amplifier interconnected
speakers are provided with a highpass-signal.
Now the VICE VERSA outputsignal on LINE OUT could be modified by the LOWPASS-
and SUBSONIC controller of the X3-amplifier.
Einstellungen Verstärker 2:
The additional amplifier must be switched to FULL- or FLAT operation mode
(Fullrange).
The crossover settings will be taken over by the X3-Amplifier. Only the level
controllers needs to be aligned accordingly. Attend in this case the owner’s manual
of the regarding amplifier.
ADVANTAGE:
This VICE VERSA-constellation affords you to the very high-valued highpass filter (variable between 10 - 4000 hz) also as the audiophile sound characteristics of a X3-ZEUS or
X3-COLOSSUS amplifier for the interconnected speakers and to use at the same time the very dynamic high-valued bass-filters (lowpass 40 - 4000 Hz and subsonic 10 - 150
Hz) for the to amplifier 2 transferred and already modified audiosignal. Thereby amplifier 2 works as pure power-amplifier without any pre-amplifier modifications and provides the
usual X3-amplifier high-end-bass-sound for the interconnected subwoofer, without beeing a X3-model. As a matter of course this constellation also works with two X3-models.
VICE VERSA 1
VICE VERSA 2
HiFONICS X3-ZEUS / X3-COLOSSUS
for stereo-speaker-system (high pass-mode)
AMPLIFIER 2 (any device)
for subwoofer operation (mono)
Connect to head unit CINCH/RCA LINE OUT CINCH/RCA LINE IN
