5. Servo operating
5-7
5.2.4. Jog operation

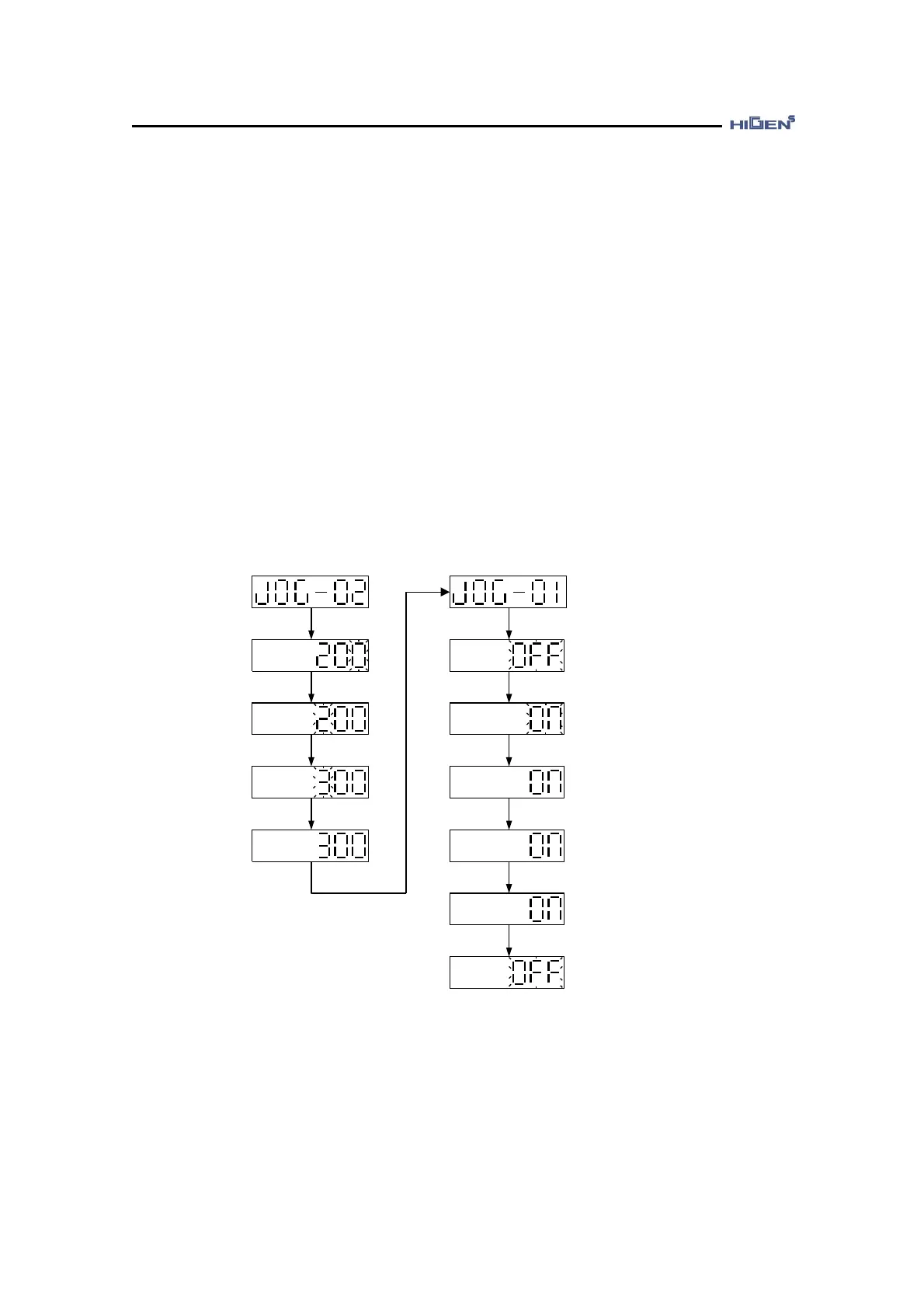

1) Key jog mode setting (JOG-01)
UP : Positive direction mode change, increase blinking value
DOWN : Negative direction mode change, decrease in blinking value
LEFT : Command reverse direction revolution, move blink to left when entering key jog speed
(JOG-02)
RIGHT : Command positive direction revolution, move blink to left when entering key jog
speed (JOG-02)
ENTER : Indicates parameter value, start and end of parameter change
ENTER, ENTER
LEFT, LEFT
UP
ENTER
LEFT
ENTER, ENTER
UP
ENTER
LEFT
RIGHT
Key JOG speed
reverse direction
operation
Key JOG speed
positive operation
ENTER
Key JOG operation ON
Key JOG operation OFF
Key JOG speed setting Key JOG operation
