2. Wiring and connection
2-8
2.2.3. Large type servo drive
U
V
W
S
T
R
B
P
r
t

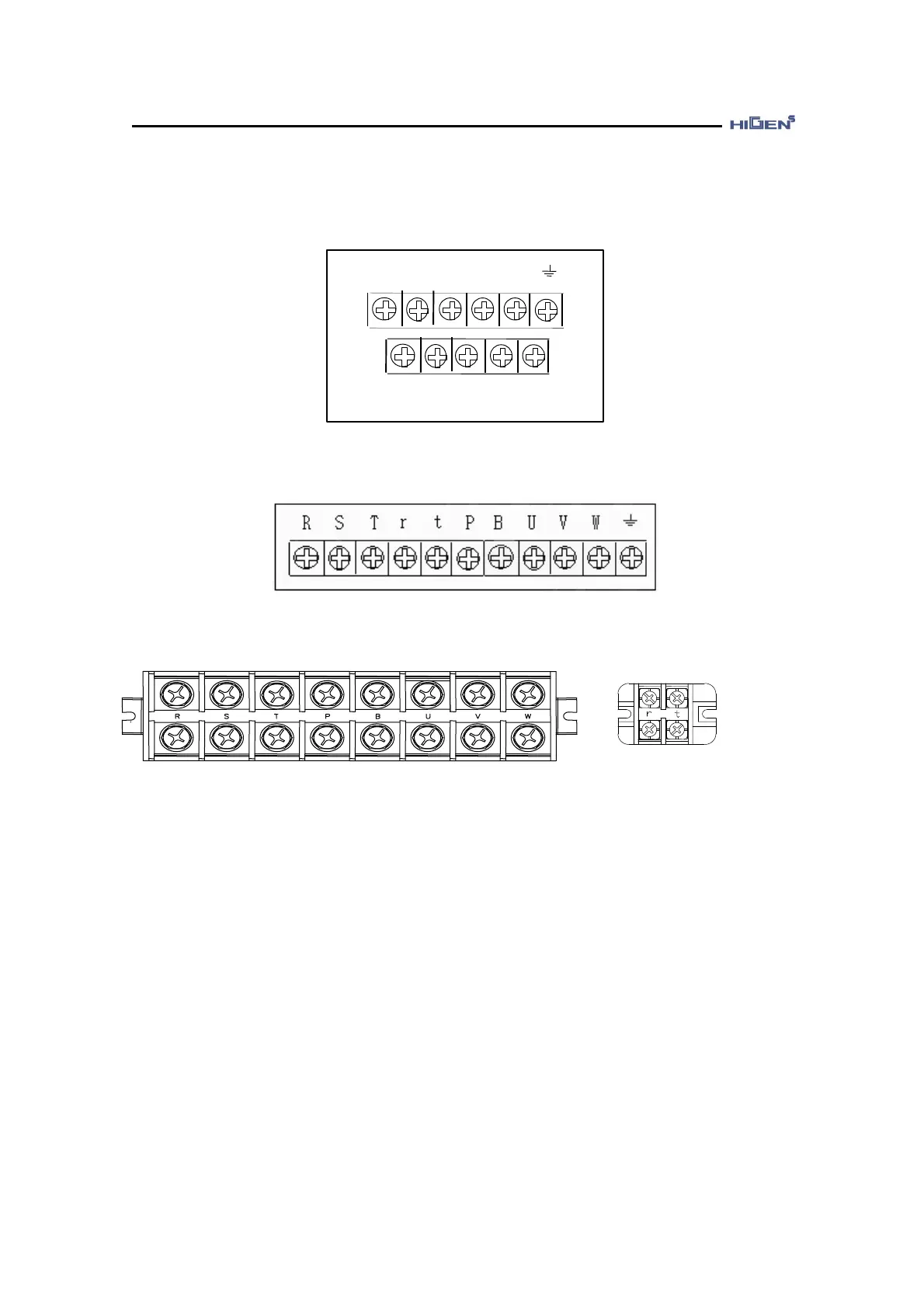

[ FDA7015 ~ FDA7045 Terminal]
[ FDA7015B ~ FDA7030B Terminal]
(a) Main Circuit Terminal (b) Control Circuit Terminal
[ FDA7075 ~ FDA7150 Terminal]
The usage and wiring method of FDA7015~7150, FDA7015B~7030B are as follows.
1) As the main power of the power circuit, connect the R,S and T terminal to 3 phase
AC200~230[V].
2) As the auxiliary power of the power circuit, connect the r and t terminal to single phase
AC200 ~ 230[V].
3) Connect the regenerated resistance between the terminals P and B.
4) At the U, V and W terminal, connect the U, V and W phase of the servo motor.
5) Ground the FG terminal. Connect the grounding wire of the servo motor with this
terminal.
