5. Servo operating
5-8

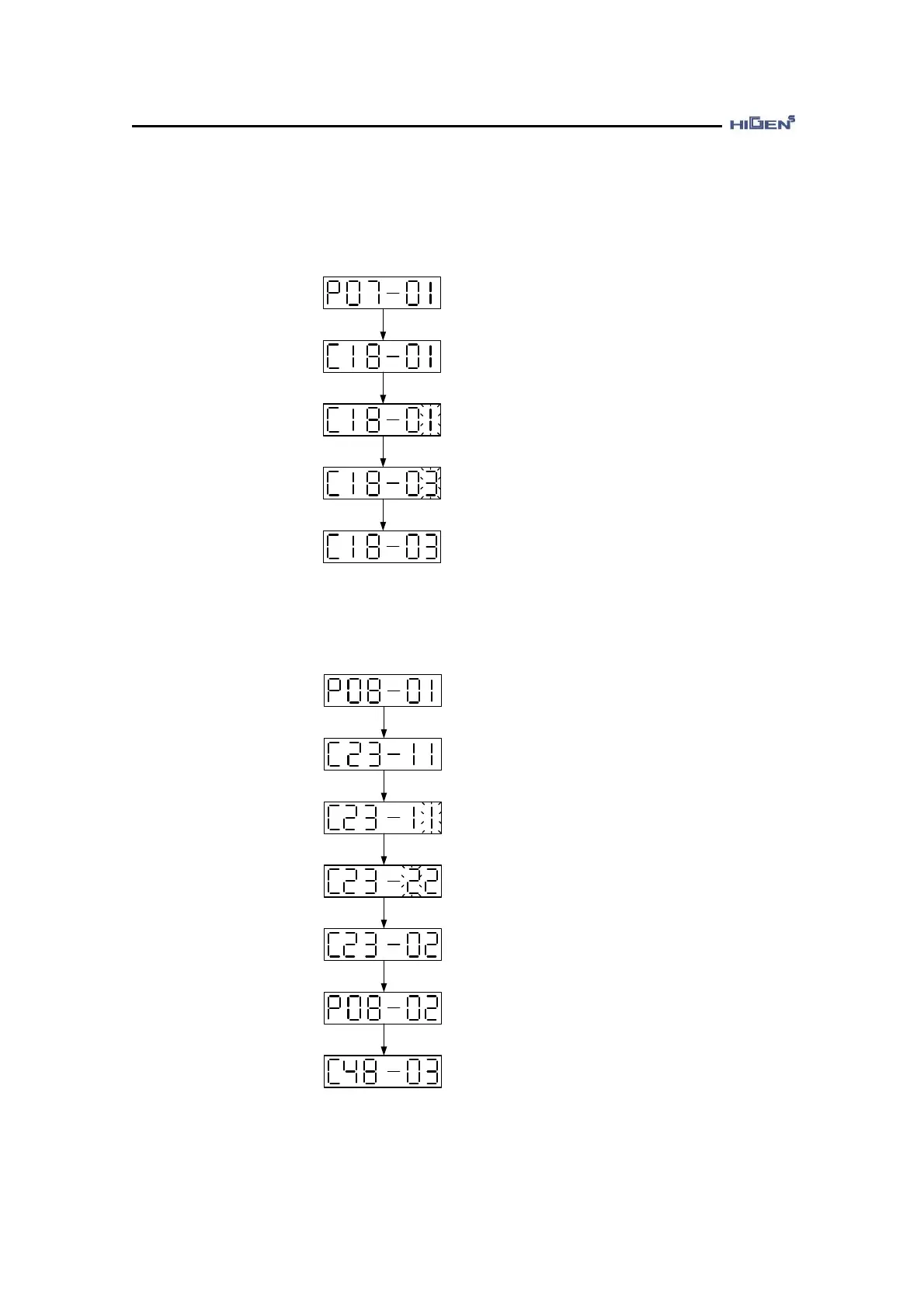

5.2.5 I/O contact point function parameter setting
1) Input contact point function setting (P07 mode)
ENTER
CN1_18 pin is set to
“01(SVONEN)” input function
ENTER
UP, UP
ENTER
CN1_18 pin is changed to
“03(DIR)” input function
2) Output contact point function setting (P08 mode)
ENTER
ENTER
UP, LEFT, UP
ENTER
CN1_23 pin is changed to
“02(TYPEOUT)” input function
Set to SETUP 5
(Speed/torque multi control
mode output fuction)
RIGHT
ENTER
CN1_48 pin is changed to
“03(BRAKE)” input function
