Higen FDA7030 User Manual

5. Servo operating
5-7

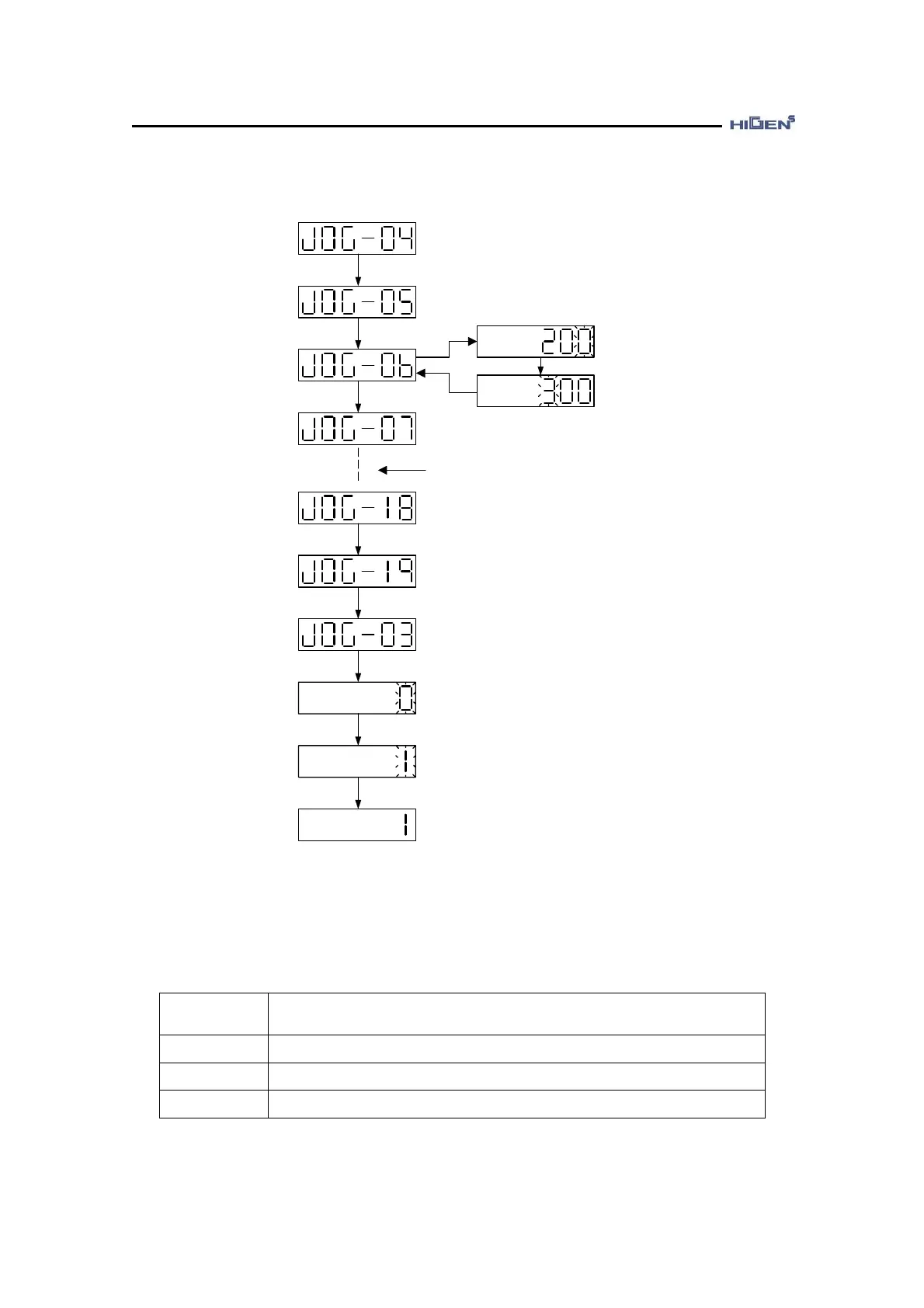

2) Auto jog mode setting
ENTER, ENTER
Auto JOG
mode setting
UP
ENTER
Revolution speed-time
Execute auto JOG mode
JOG speed 1
setting
JOG time 1
setting
JOG speed 2
setting
JOG time 2
setting
JOG speed 8
setting
JOG time 8
setting
JOG 3 ~ 7
setting
ENTER, ENTER
LEFT, LEFT, UP
RIGHT
Auto jog mode supports 8-steps repeated pattern operations, and the 1
st
auto jog mode that
sets the revolution speed [rpm] and revolution time [sec] and 2
nd
auto jog mode that sets the
revolution time [rpm] and revolutions [rev] are supported.
JOG-03
Set value
Operation explanation
0 Do not use auto jog mode
1 Use auto jog mode for revolution speed – revolution time
2 Use auto jog mode for revolution speed – revolutions
