5

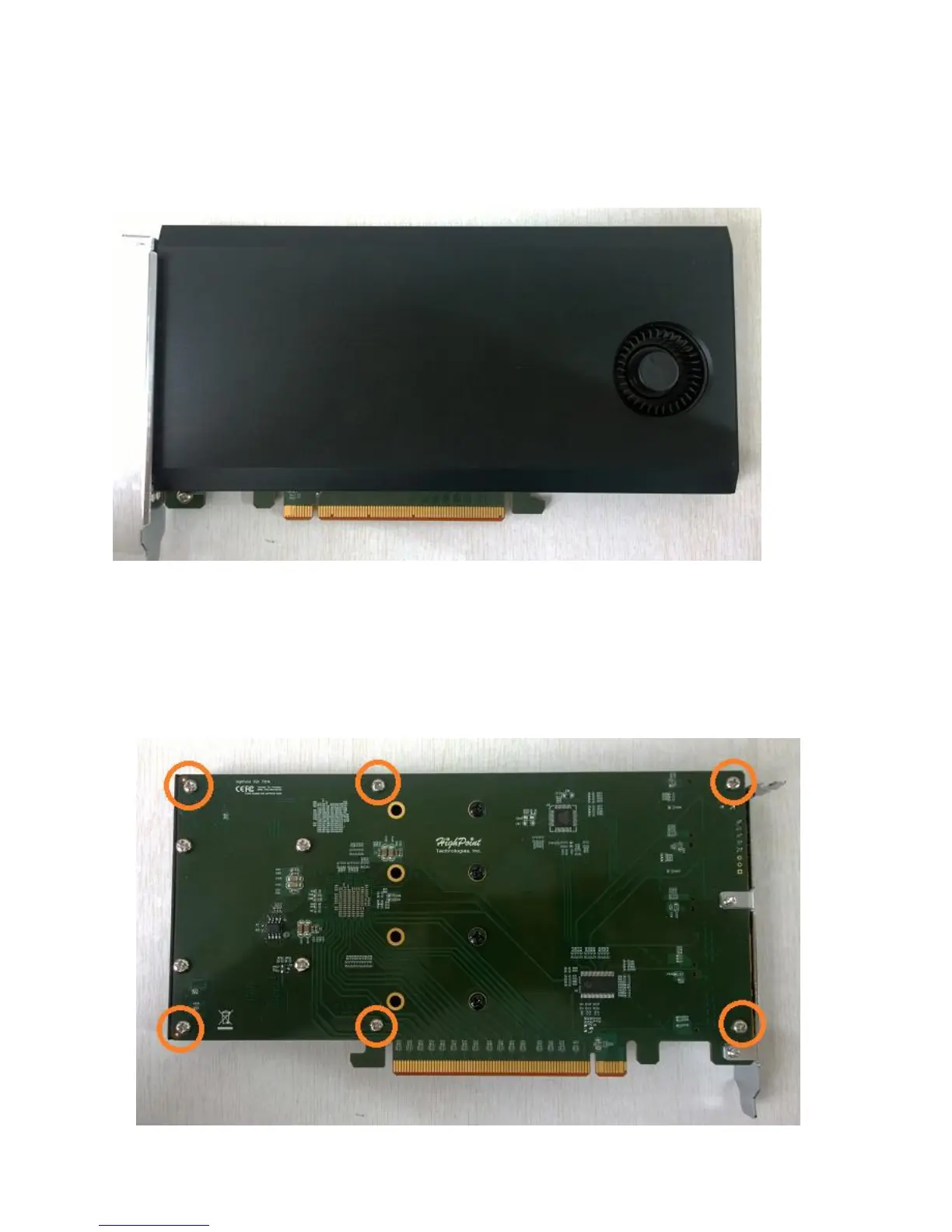

SSD7101A-1 Hardware
Front View
NVMe Drive Installation:
Step 1. Unscrew the two Thumbscrew in the back of the RS6661A
Step 2. Take out the SSD7101A-1 of the RS6661A
Step 3. On the rear of the SSD7101A-1, remove the six screws that secure the
unit’s front panel to the PCB.
