Hikmicro GRYPHON Series User Manual

Thermal Monocular User Manual
13

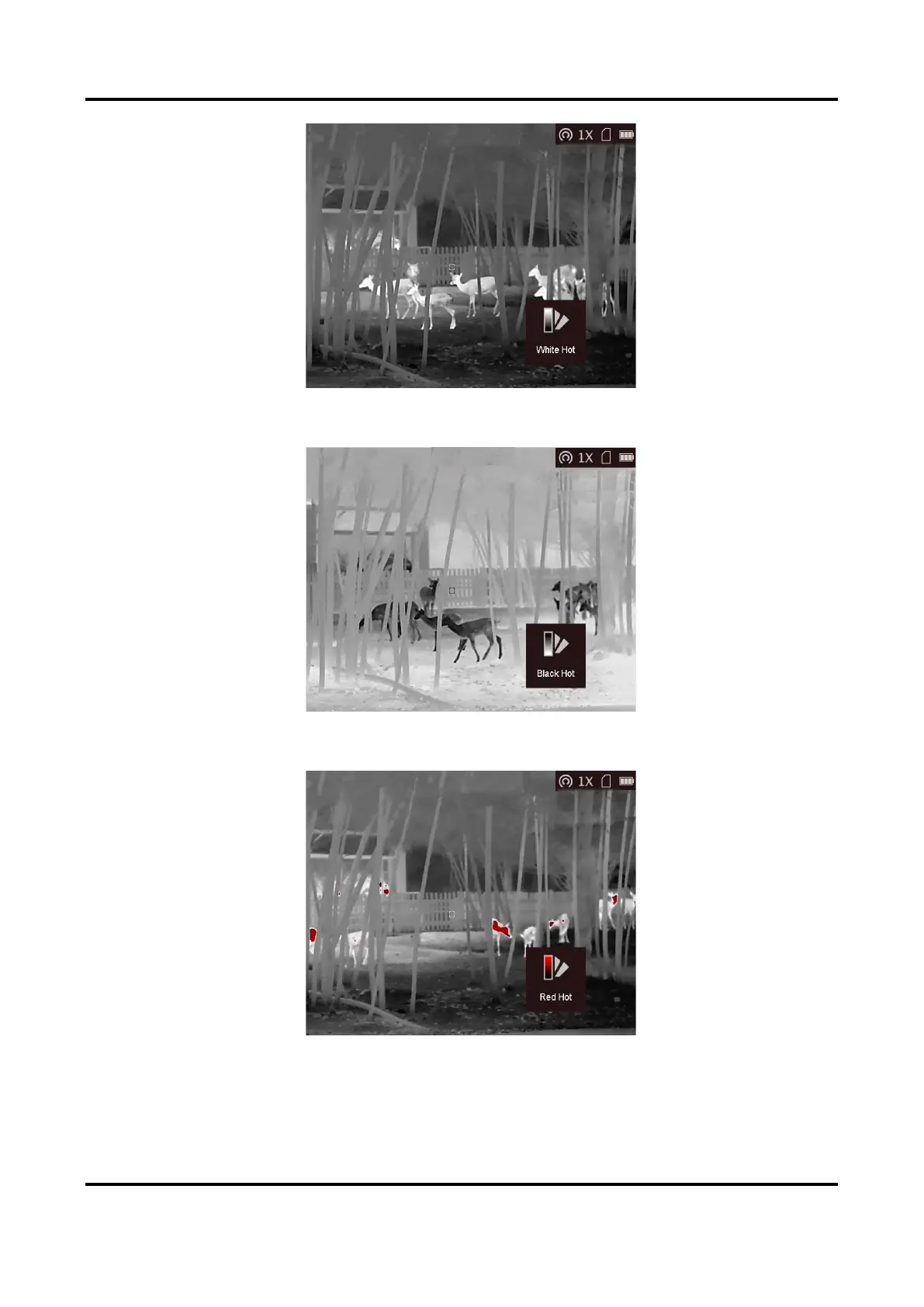

Black Hot
The hot part is black-colored in view. The higher the temperature is, the more black the color is.
Red Hot
The hot part is red-colored in view. The higher the temperature is, the redder the color is.
Fusion
From high temperature to low temperature, the image is colored in from white, yellow, red,
pink to purple.

Hikmicro GRYPHON Series Specifications

General

Detector Pitch	12 μm
Frame Rate	50 Hz
Video Recording	Yes
Photo Capture	Yes
Ingress Protection	IP67
Thermal Resolution	384 × 288 or 640 × 512
Detection Range	Up to 1800 m
Display	1024x768
Lens Options	35mm
Battery Type	Rechargeable Li-ion
Wi-Fi	Yes
Objective Lens Diameter	35mm
Operating Temperature	-20 °C
Digital Zoom	1 ×, 2 ×, 4 ×, 8 ×
