Hikmicro GRYPHON Series User Manual

Thermal Monocular User Manual
6

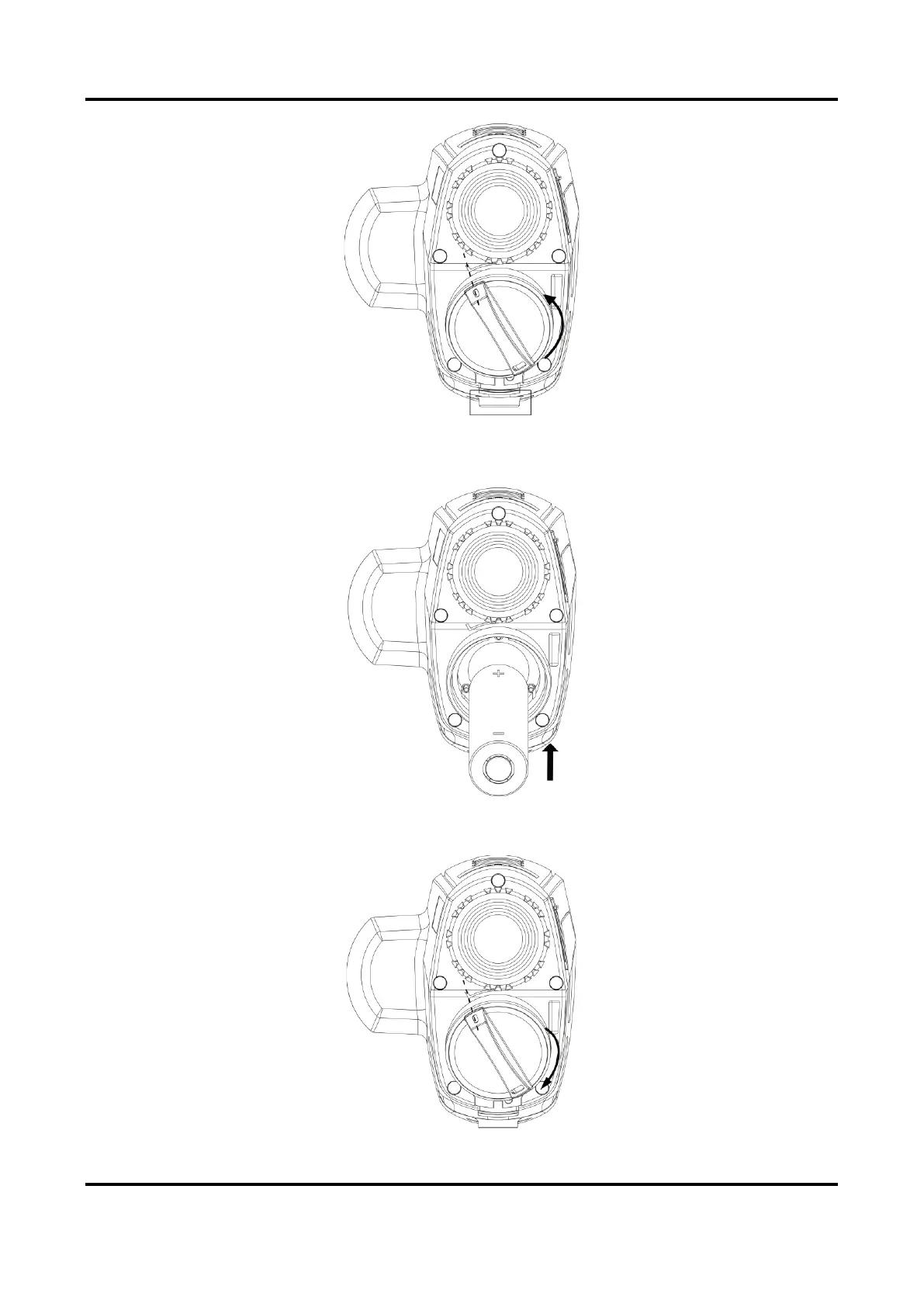

Figure 2-1 Disassemble the Battery Cover
2. Insert the battery into the battery compartment with the positive mark inward.
Figure 2-2 Install the Battery
3. Align the marks on the battery cover and the device, and put the battery cover on the battery.

Hikmicro GRYPHON Series Specifications

General

Detector Pitch	12 μm
Frame Rate	50 Hz
Video Recording	Yes
Photo Capture	Yes
Ingress Protection	IP67
Thermal Resolution	384 × 288 or 640 × 512
Detection Range	Up to 1800 m
Display	1024x768
Lens Options	35mm
Battery Type	Rechargeable Li-ion
Wi-Fi	Yes
Objective Lens Diameter	35mm
Operating Temperature	-20 °C
Digital Zoom	1 ×, 2 ×, 4 ×, 8 ×
