User Manual of 9600/8600/7700/7600 Series NVR
101
4. Export.
Click Export button and start backup.
Note: If the inserted USB device is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
You can also format USB flash drives or USB HDDs via the device.

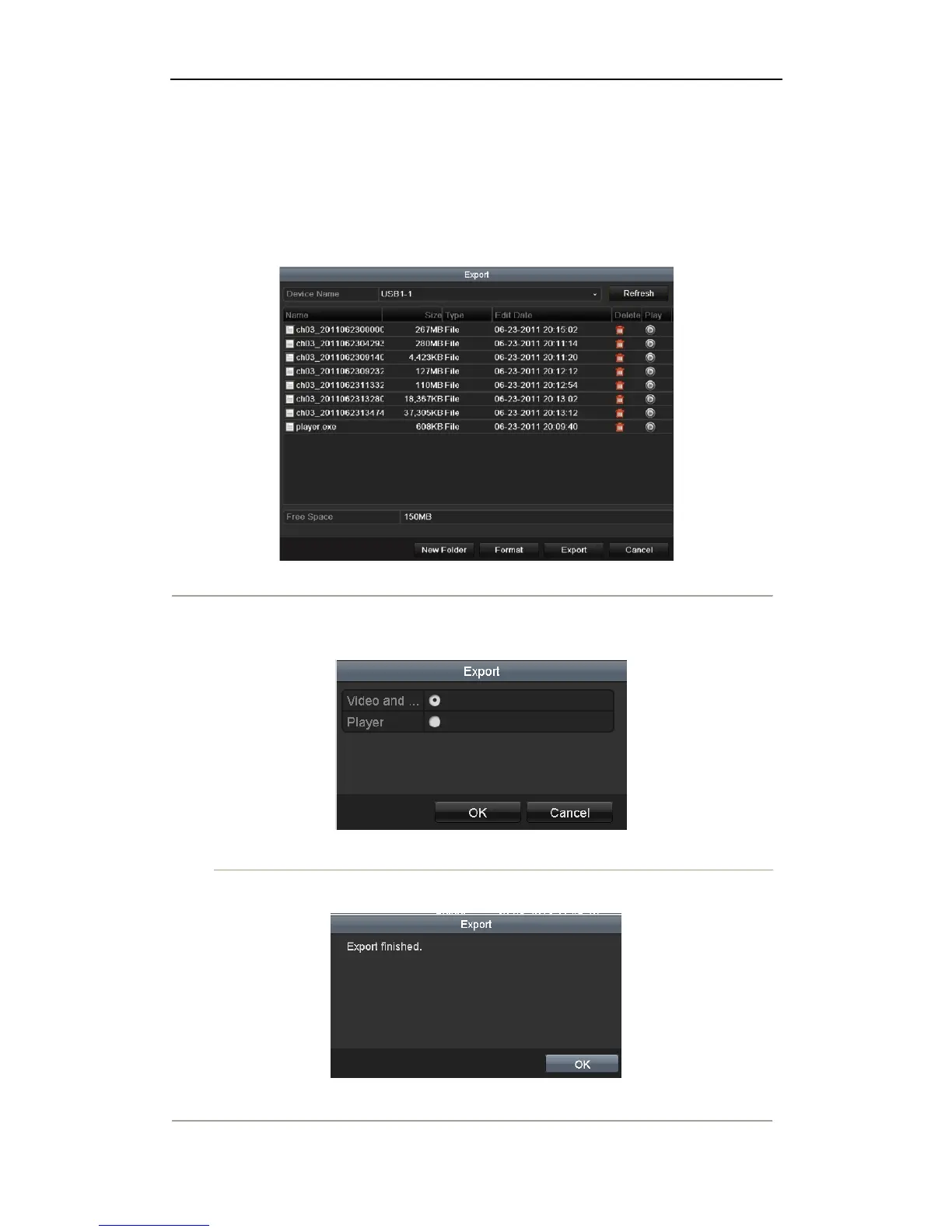

Figure 7. 3 Export by Normal Video Search using USB Flash Drive
5. Select the file type in the by clicking the icon of corresponding option and click the OK button to start
backup.
Figure 7. 4 Export Options
Stay in the Exporting interface until all record files are exported with pop-up message box “Export finished”.
Figure 7. 5 Export Finished
