User Manual of 9600/8600/7700/7600 Series NVR
117
8.1 Setting Motion Detection Alarm
Steps:
1. Enter Motion Detection interface of Camera Management and choose a camera you want to set up motion
detection.
Menu> Camera> Motion

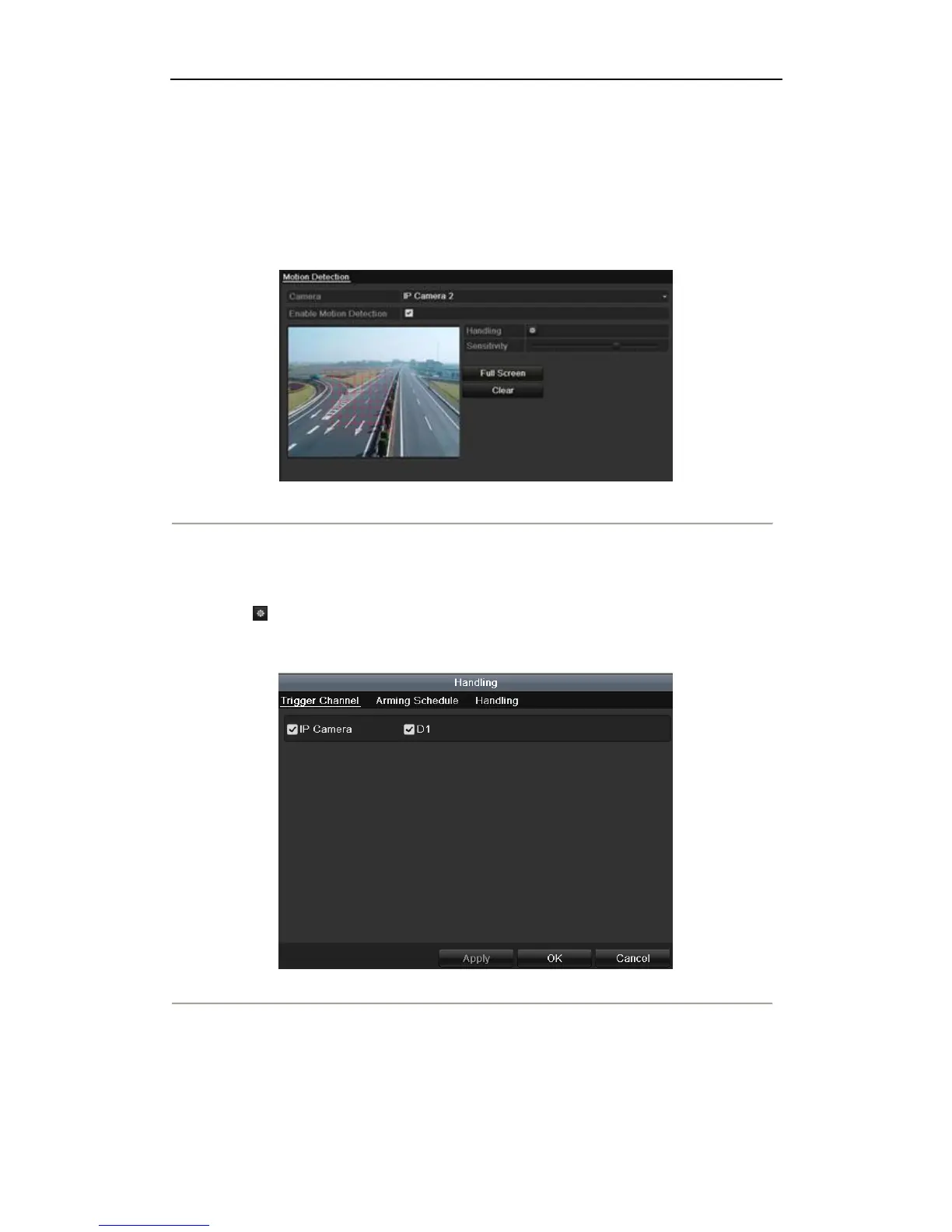

Figure 8. 1 Motion Detection Setup Interface
2. Set up detection area and sensitivity.
Tick “Enable Motion Detection”, use the mouse to draw detection area(s) and drag the sensitivity bar to
set sensitivity.
Click button and set alarm response actions.
3. Click Trigger Channel tab and select one or more channels which will start to record/capture or become
full-screen monitoring when motion alarm is triggered, and click Apply to save the settings.
Figure 8. 2 Set Trigger Camera of Motion Detection
4. Set up arming schedule of the channel.
1) Select Arming Schedule tab to set the arming schedule of handling methods for the motion detection.
2) Choose one day of a week and up to eight time periods can be set within each day.
3) Click Apply to save the settings
Note: Time periods shall not be repeated or overlapped.
