HIKVISION 9600 Series User Manual

User Manual of 9600/8600/7700/7600 Series NVR
38

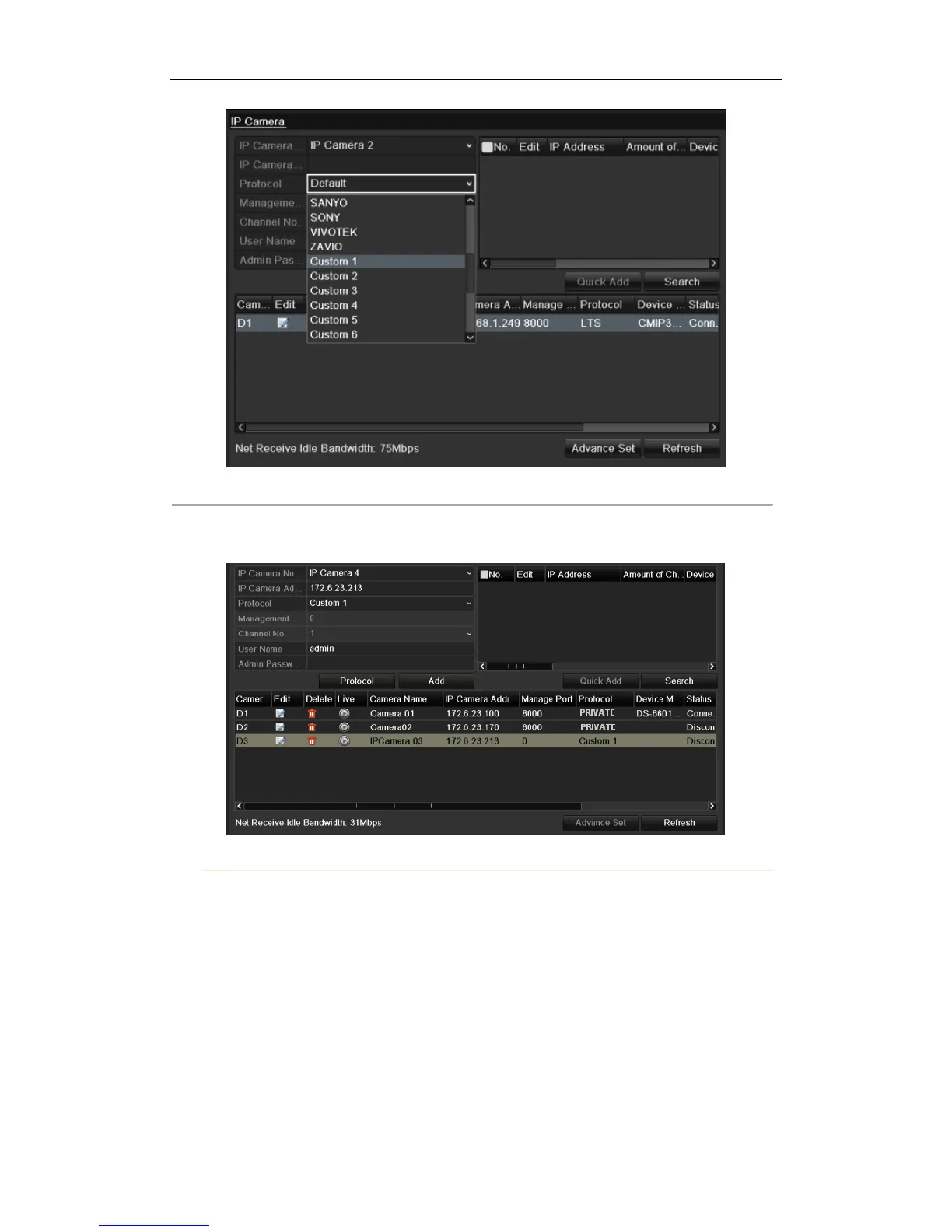

Figure 2. 17 Protocol Setting
4. Select the custom protocol and enter the IP address, user name and password of the camera.
5. Click the Add button to add the network camera.
Figure 2. 18 Adding an IP Camera through Customized Protocol
2.3.3 Editing IP cameras connected to the PoE interfaces
The PoE interfaces enables the NVR system to pass electrical power safely, along with data, on Ethernet cabling to
the connected network cameras.
The 7700/7600S-P8 series NVR provides 8 PoE interfaces which can connect to 8 network cameras directly; and if
you disable the PoE interface, you can also connect to the online network cameras. And the PoE interface supports
the Plug-and-Play function.
Example:
As for 7608/7708NI-SP NVR, when you want to connect 2 online cameras and connect 6 network cameras via
