User Manual of 9600/8600/7700/7600 Series NVR
163

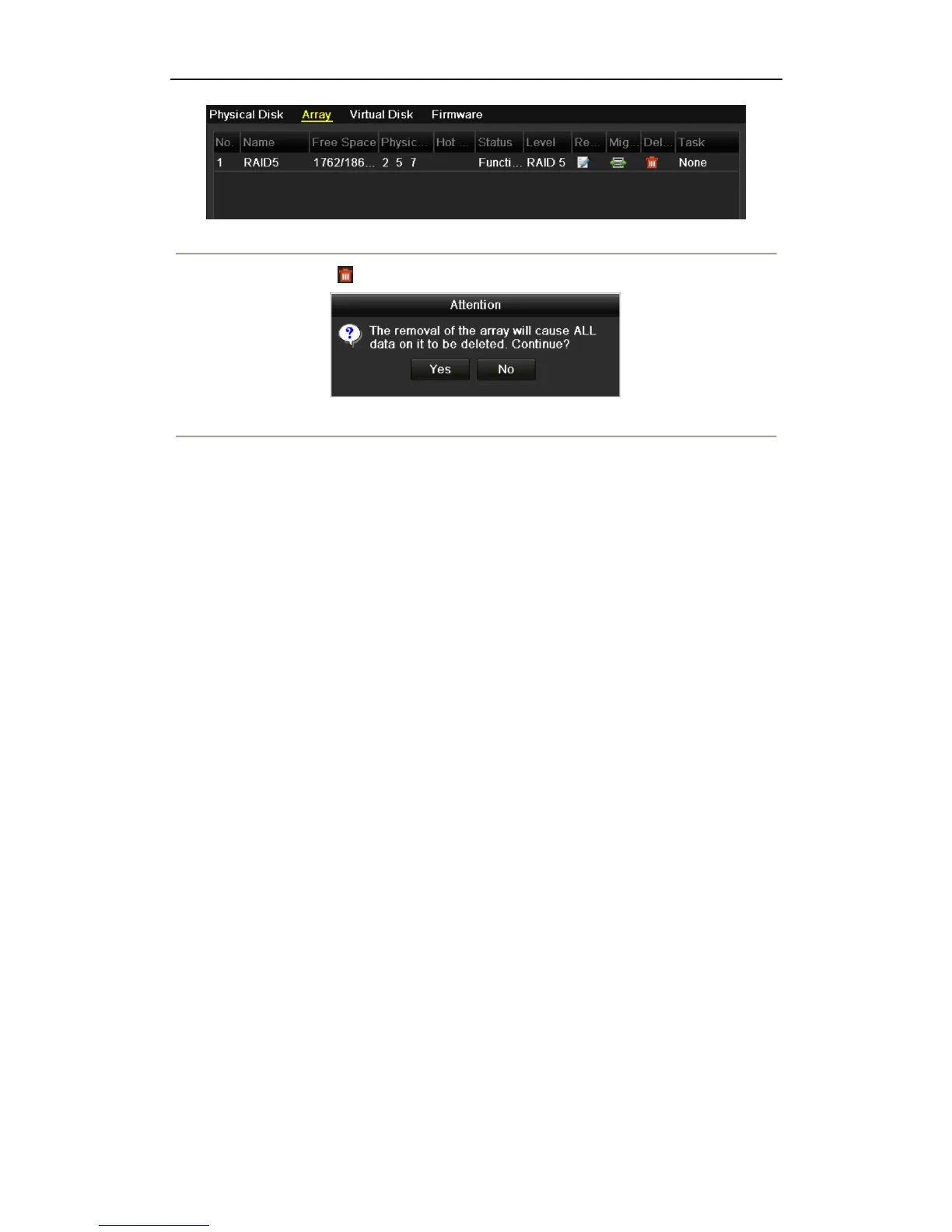

Figure 10. 27
A
rray Settings Interface
2.
S
elect an array and click
to d
elete the array
.
Figure 10. 28
C
onfirm Array Deletion
3.
I
n
th
e pop-up mess
age box, click
Yes
button
to confirm
the array deletion.
Note:
Deleting array will cause to delete all the data in the array
.
