User Manual of 9600/8600/7700/7600 Series NVR
78

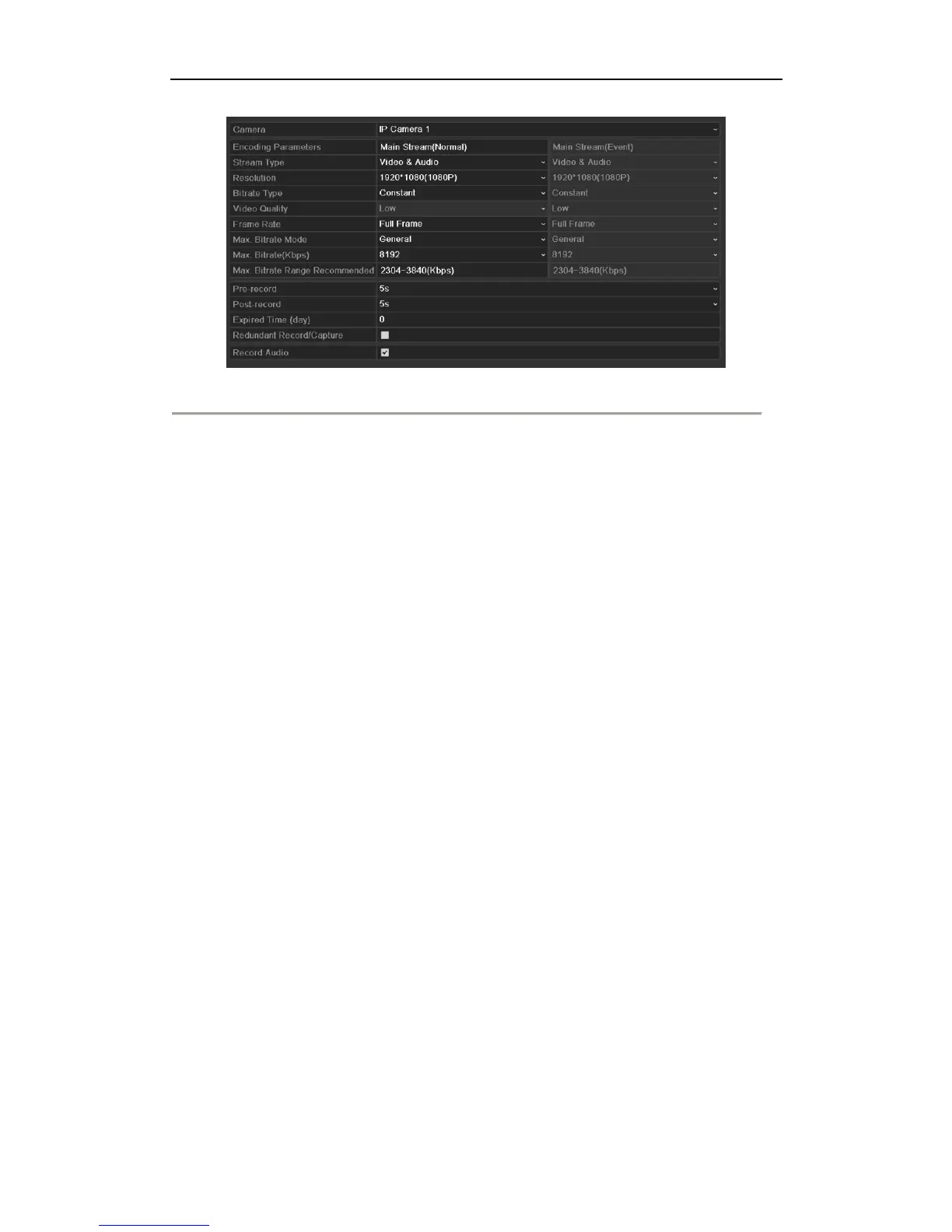

Figure 5. 26
E
ncoding Record
2)
Select Camera you want to configure in
the drop-down list.
3)
Check the checkbox of
Redundant Record/Capture
.
4)
Click
OK
to save settings and back to the upper level menu.
Repeat the above steps for configuring other channels.
