Quick Operation Guide of DS-1100KI Network Keyboard
12

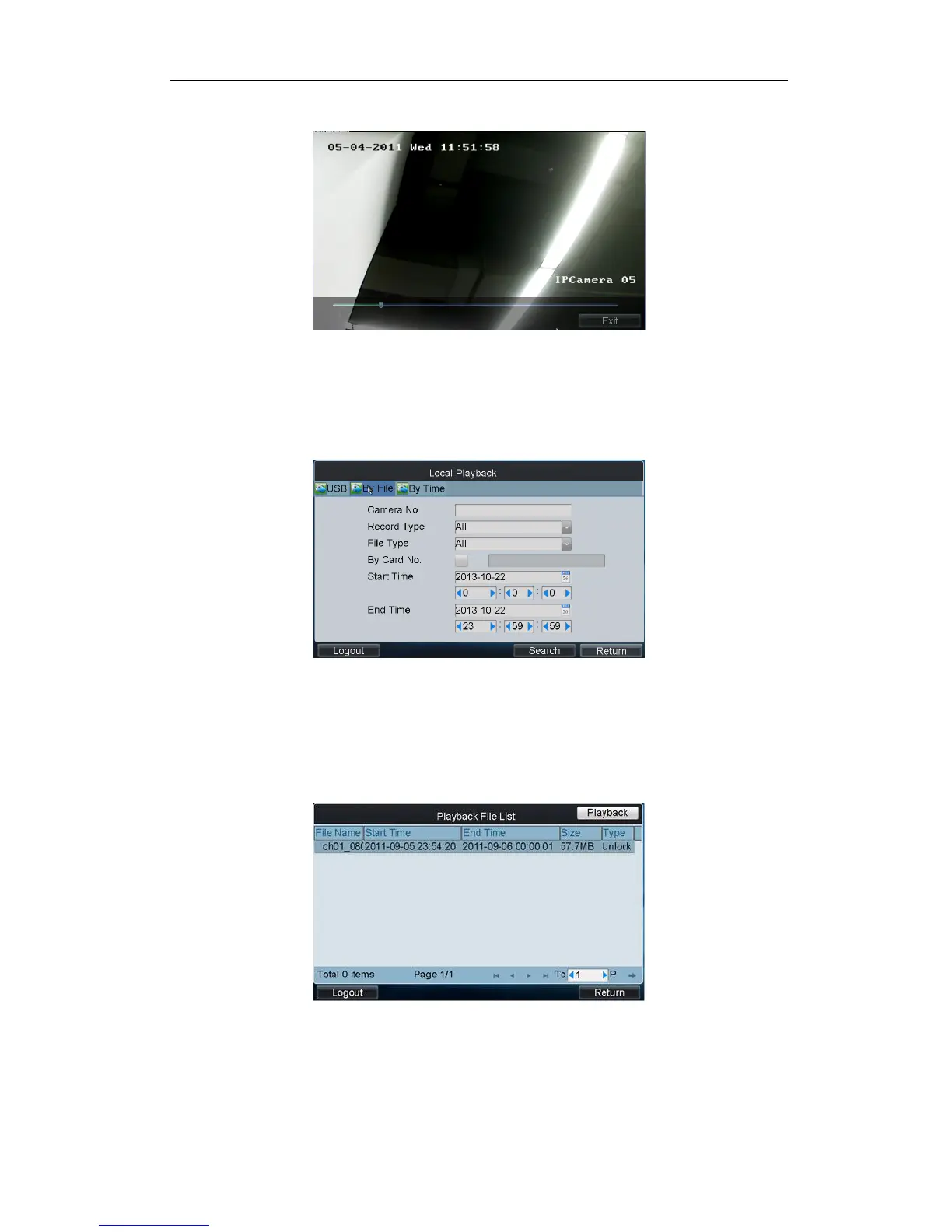

4. Click Playback to play the selected video file.
Playback by File
Steps:
1. Click the By File tab on the Local Playback interface to enter the Playback by File interface.
2. Input the Camera No. for playback.
If the encoding device is ATM DVR, you can input the Card No.
3. Select the record type and file type.
4. Set the start time and end time of the video files for playback.
5. Click Search to search the matched video files.
(1) The searching results can be viewed on the Playback File List interface.
(2) Select the file for playback from the list and click Playback to play back the video file.
Playback by Time
1. Click the By Time tab on the Local Playback interface to enter the Playback by Time interface.

Other manuals for HIKVISION DS-1100KI

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-1100KI and is the answer not in the manual?

HIKVISION DS-1100KI Specifications

General IconGeneral
Split keyboardNo
Keyboard layout-
Device interfaceRS-232 + RS-485 + RJ-45
Recommended usageOffice
Keyboard form factorMini
Connectivity technologyWired
Display typeTFT
Product colorBlack
Keyboard styleStraight
Ergonomic designYes
Product typeControl panel
Housing materialPlastic
Quantity per pack1 pc(s)
USB 2.0 ports quantity1
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Operating voltage12 V
Power source typeDC
Weight and Dimensions IconWeight and Dimensions
Depth110 mm
Width435 mm
Height193 mm
Keyboard weight2000 g
Keyboard dimensions (WxDxH)435 x 110 x 193 mm
