HIKVISION DS-2CD1143G0-I User Manual

Network Camera User Manual
109

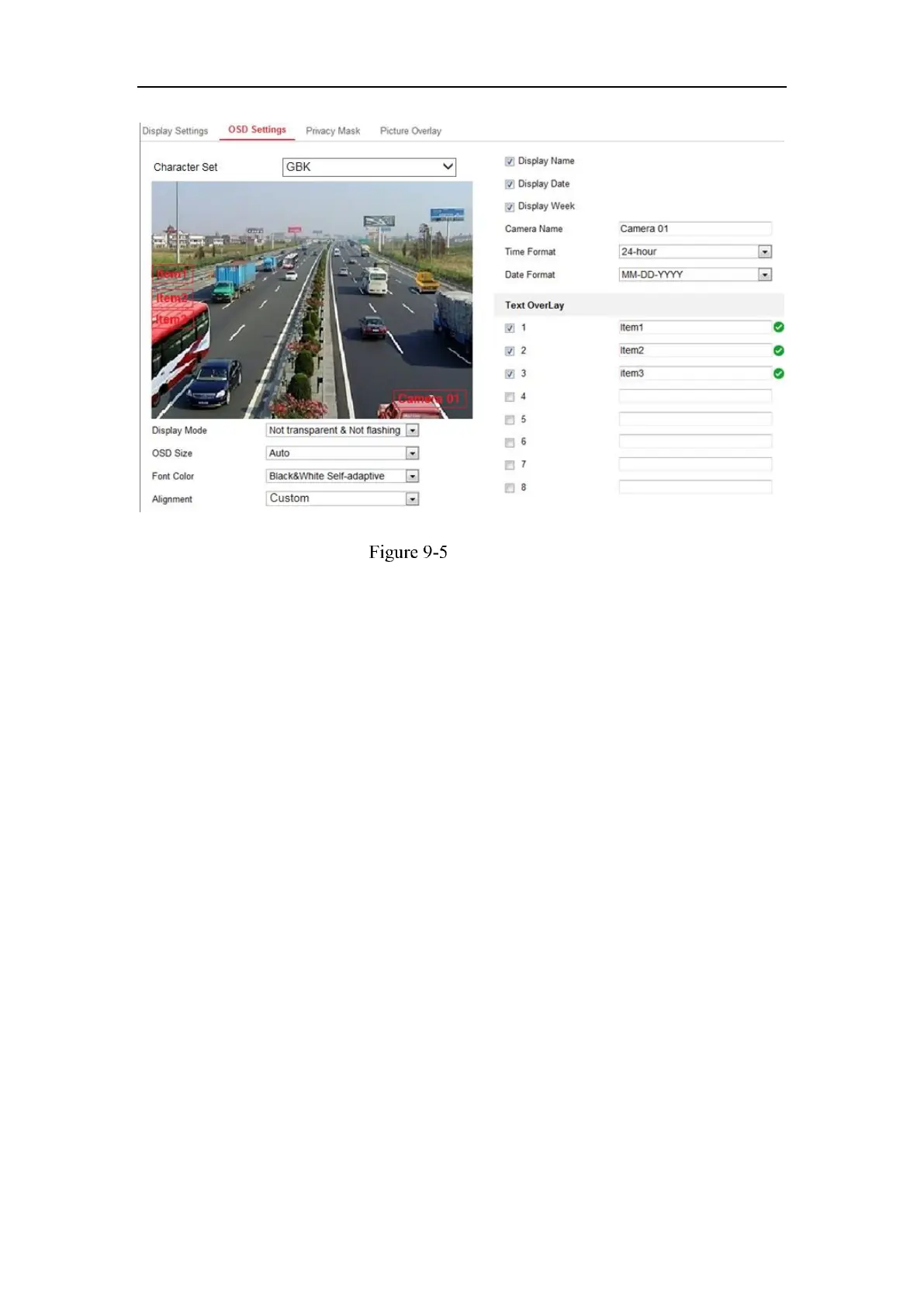

OSD Settings
Steps:
1. Enter the OSD Settings interface: Configuration > Image > OSD Settings.
2. Select the desired character set.
3. Check the corresponding checkbox to select the display of camera name, date or
week if required.
4. Edit the camera name in the text field of Camera Name.
5. Select from the drop-down list to set the time format and date format.
6. Select from the drop-down list to set the time format, date format, display mode,
OSD size and OSD color.
7. Configure the text overlay settings.
(1) Check the checkbox in front of the textbox to enable the on-screen display.
(2) Input the characters in the textbox.
Note: Up to 8 text overlays are configurable.
8. Adjust the OSD position and alignment.
9. Character align right, character align left, all align right, all align left and custom
are selectable. If you select character align right, character align left, all align left
or all align right, you can set the left and right margins and up and down margins.

HIKVISION DS-2CD1143G0-I Specifications

General

Video streaming	Yes
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Image quality adjustment	Brightness, Contrast, DNR, Saturation, Sharpness
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Sensor type	CMOS
Number of sensors	-
Optical sensor size	1/3 \
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Maximum operating distance	30 m
DC output current	0.4 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	5 W
Power consumption (Power over Ethernet (PoE))	7 W
IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black, White
Housing material	Metal, Plastic
International Protection (IP) code	IP67
Pan range	0 - 355 °
Tilt angle range	0 - 70 °
Camera shutter speed	1/3 - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	117 °
LED type	IR
Infra-red wavelength	850 nm
Wi-Fi	No
Number of users	32 user(s)
Networking standards	IEEE 802.3af
Ethernet interface type	10 Gigabit Ethernet, 100 Gigabit Ethernet
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Ethernet LAN (RJ-45) ports	1
Operating temperature (T-T)	-30 - 50 °C

Weight and Dimensions

Width	111 mm
Height	82.4 mm
Weight	410 g
Package weight	610 g
