HIKVISION DS-2CD1143G0-I User Manual

Network Camera User Manual
56

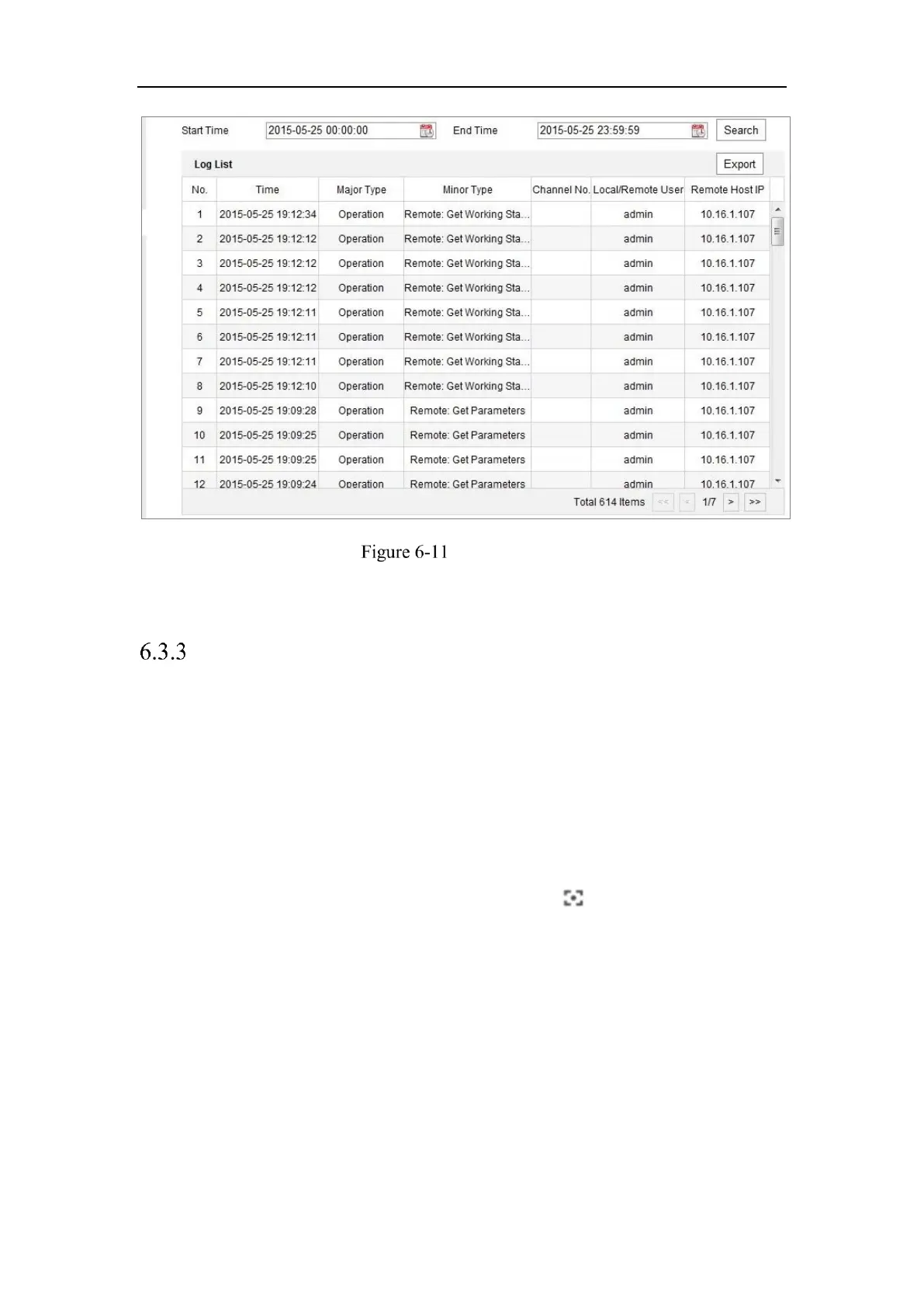

Log Searching
4. To export the log files, click Export to save the log files.
System Service
Purpose:
System service settings refer to the hardware service the camera supports. Supported
functions vary according to the different cameras. For the cameras support IR Light,
ABF (Auto Back Focus), Auto Defog, or Status LED, you can select to enable or
disable the corresponding service according to the actual demands.
ABF: When ABF function is enabled, you can click on PTZ control panel to
realize auxiliary focus.
Third Stream: For some models, third stream is not enabled by default. Check
Enable Third Stream to enable the function.
eMMC Protection: If you enable eMMC protection, the lifespan of the eMMC is
displayed.
Enable Motion Detection: Check Enable Motion Detection to enable the function.

HIKVISION DS-2CD1143G0-I Specifications

General

Video streaming	Yes
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Image quality adjustment	Brightness, Contrast, DNR, Saturation, Sharpness
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Sensor type	CMOS
Number of sensors	-
Optical sensor size	1/3 \
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Maximum operating distance	30 m
DC output current	0.4 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	5 W
Power consumption (Power over Ethernet (PoE))	7 W
IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black, White
Housing material	Metal, Plastic
International Protection (IP) code	IP67
Pan range	0 - 355 °
Tilt angle range	0 - 70 °
Camera shutter speed	1/3 - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	117 °
LED type	IR
Infra-red wavelength	850 nm
Wi-Fi	No
Number of users	32 user(s)
Networking standards	IEEE 802.3af
Ethernet interface type	10 Gigabit Ethernet, 100 Gigabit Ethernet
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Ethernet LAN (RJ-45) ports	1
Operating temperature (T-T)	-30 - 50 °C

Weight and Dimensions

Width	111 mm
Height	82.4 mm
Weight	410 g
Package weight	610 g
