HIKVISION DS-2CD1143G0-I User Manual

Network Camera User Manual
18
Activation Interface (Client Software)
6. Click OK button to start activation.

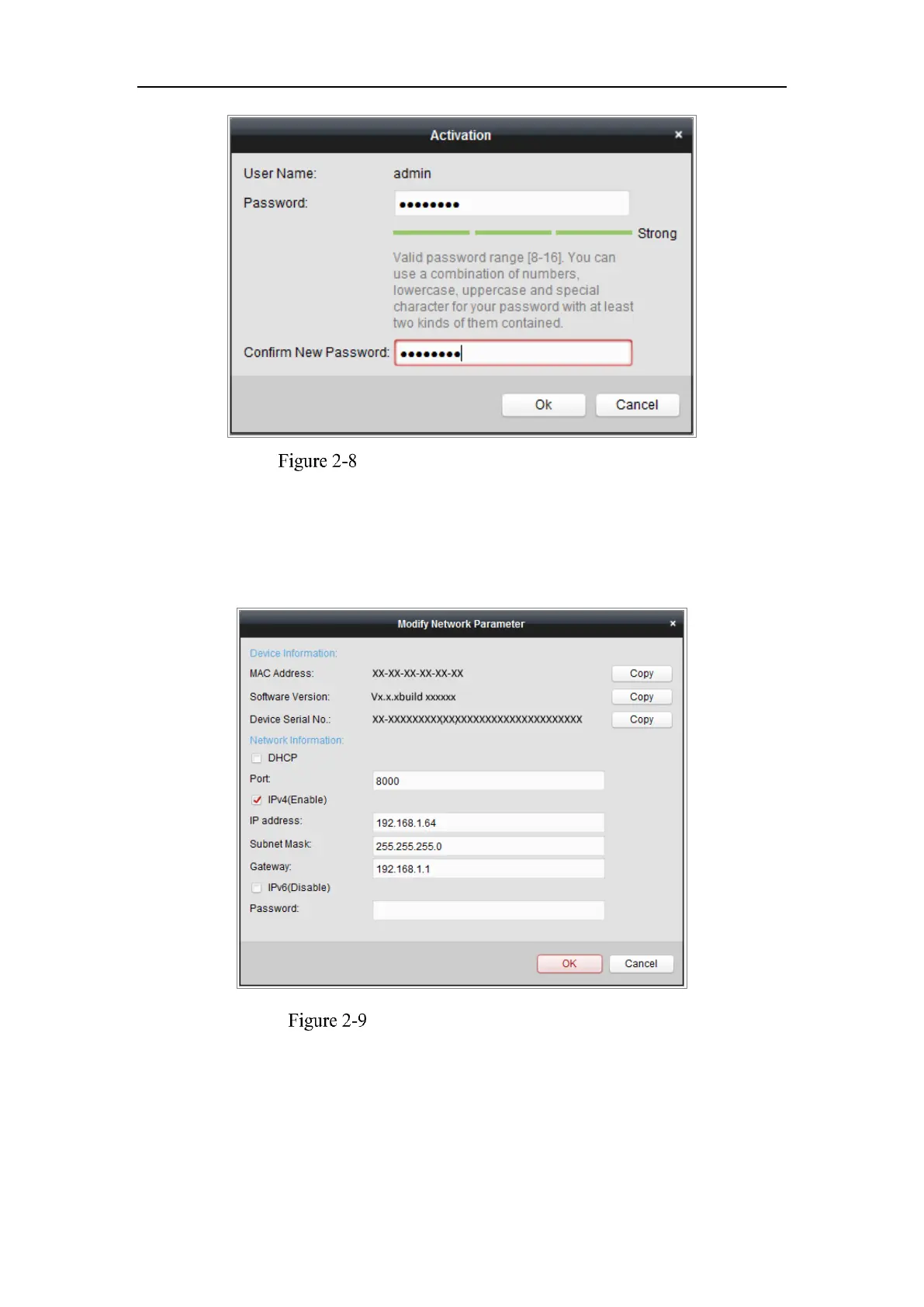

7. Click the Modify Netinfo button to pop up the Network Parameter Modification
interface, as shown in the figure below.
Modifying the Network Parameters
8. Change the device IP address to the same subnet with your computer by either
modifying the IP address manually or checking the checkbox of Enable DHCP.
9. Input the password to activate your IP address modification.

HIKVISION DS-2CD1143G0-I Specifications

General

Video streaming	Yes
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Image quality adjustment	Brightness, Contrast, DNR, Saturation, Sharpness
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Sensor type	CMOS
Number of sensors	-
Optical sensor size	1/3 \
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Maximum operating distance	30 m
DC output current	0.4 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	5 W
Power consumption (Power over Ethernet (PoE))	7 W
IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black, White
Housing material	Metal, Plastic
International Protection (IP) code	IP67
Pan range	0 - 355 °
Tilt angle range	0 - 70 °
Camera shutter speed	1/3 - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	117 °
LED type	IR
Infra-red wavelength	850 nm
Wi-Fi	No
Number of users	32 user(s)
Networking standards	IEEE 802.3af
Ethernet interface type	10 Gigabit Ethernet, 100 Gigabit Ethernet
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Ethernet LAN (RJ-45) ports	1
Operating temperature (T-T)	-30 - 50 °C

Weight and Dimensions

Width	111 mm
Height	82.4 mm
Weight	410 g
Package weight	610 g
