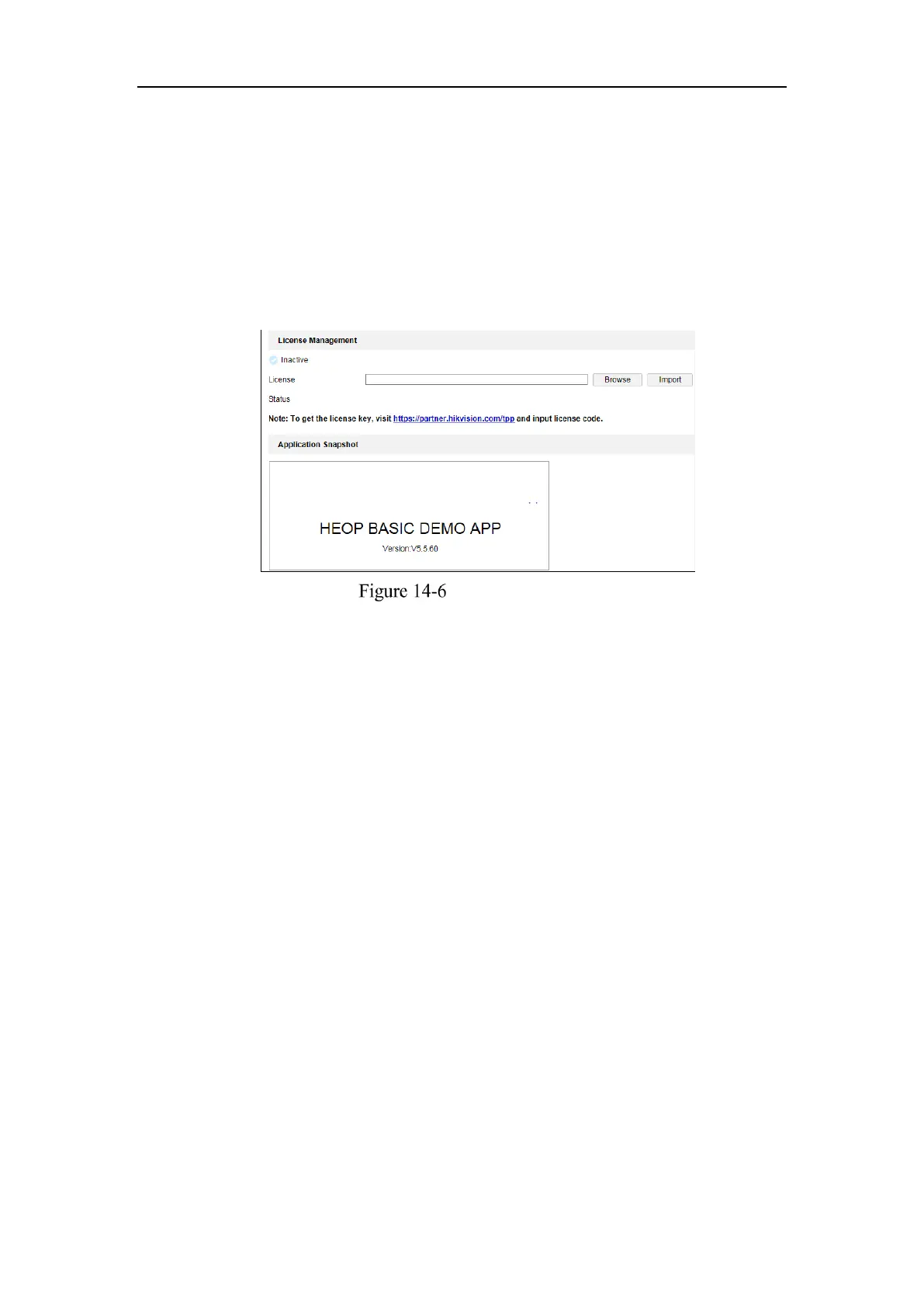

Network Camera User Manual
191
checkbox to enable Camera Setting Authorization.
7. If you have installed the application, you can select the desired application to
view the license or click Browse to import the license for each application. There
are four license status: free, inactive, activated and expired. Free means that the
application is free of use and you need not to import a license key, inactive means
you should import a license key before using the application.
Import License
Note:
Before you import the application package, make sure the following requirements are
met.
The imported applications cannot have the same name.
The flash memory size of the imported application should be less than the free
flash memory of the device.
The memory size of the imported application should be less than the free memory
of the device.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2CD1143G0-I and is the answer not in the manual?

HIKVISION DS-2CD1143G0-I Specifications

General IconGeneral
Video streamingYes
Total megapixels4 MP
Maximum resolution2560 x 1440 pixels
Image quality adjustmentBrightness, Contrast, DNR, Saturation, Sharpness
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Sensor typeCMOS
Number of sensors-
Optical sensor size1/3 \
TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Maximum operating distance30 m
DC output current0.4 A
DC output voltage12
Power source typeDC, PoE
Power consumption (max)5 W
Power consumption (Power over Ethernet (PoE))7 W
IK codeIK10
Form factorDome
Mounting typeCeiling/wall
Product colorBlack, White
Housing materialMetal, Plastic
International Protection (IP) codeIP67
Pan range0 - 355 °
Tilt angle range0 - 70 °
Camera shutter speed1/3 - 1/100000 s
Minimum illumination0.01 lx
Field of view (FOV) angle117 °
LED typeIR
Infra-red wavelength850 nm
Wi-FiNo
Number of users32 user(s)
Networking standardsIEEE 802.3af
Ethernet interface type10 Gigabit Ethernet, 100 Gigabit Ethernet
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Ethernet LAN (RJ-45) ports1
Operating temperature (T-T)-30 - 50 °C
Weight and Dimensions IconWeight and Dimensions
Width111 mm
Height82.4 mm
Weight410 g
Package weight610 g
