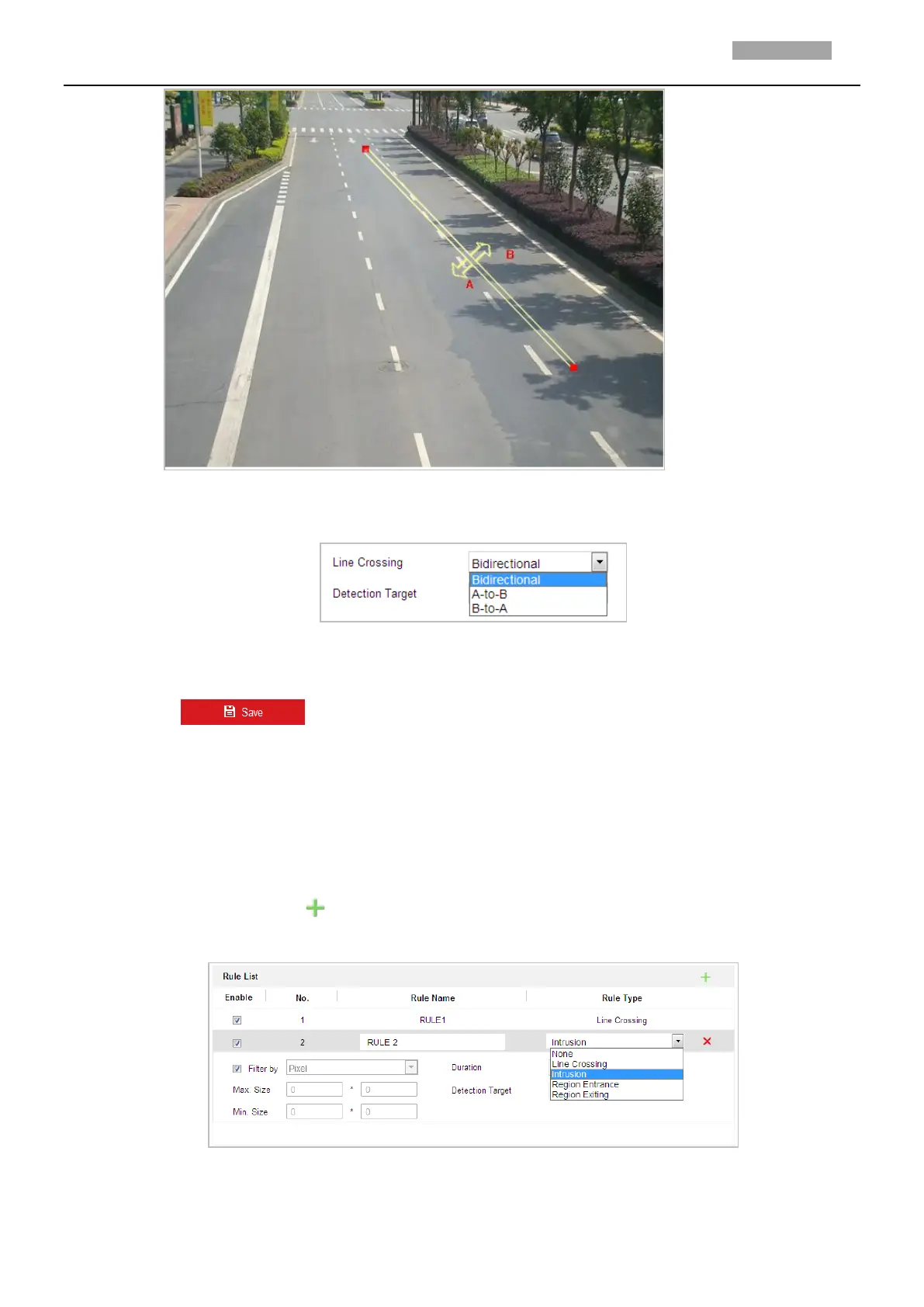

Figure 6-19 Draw Line
4) Click the dropdown list in the rule list to select the crossing direction.
Figure 6-20 Select Crossing Direction
5) Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.
6) Click to save the settings.
Intrusion
Purpose:
This function can be used for detecting whether there are people, vehicles and objects intrude into
the pre-defined region longer than the set duration. The alarm will be triggered if the rule is
broken.
Steps:
1) Create new rule: Click add a new rule.
2) Select rule type: Click the dropdown list and select Intrusion as the rule type.
Figure 6-21 Select Rule Type
3) Configure the rule area:
