Chapter 1 Introduction
1.1 Front Panel
Front Panel 1:

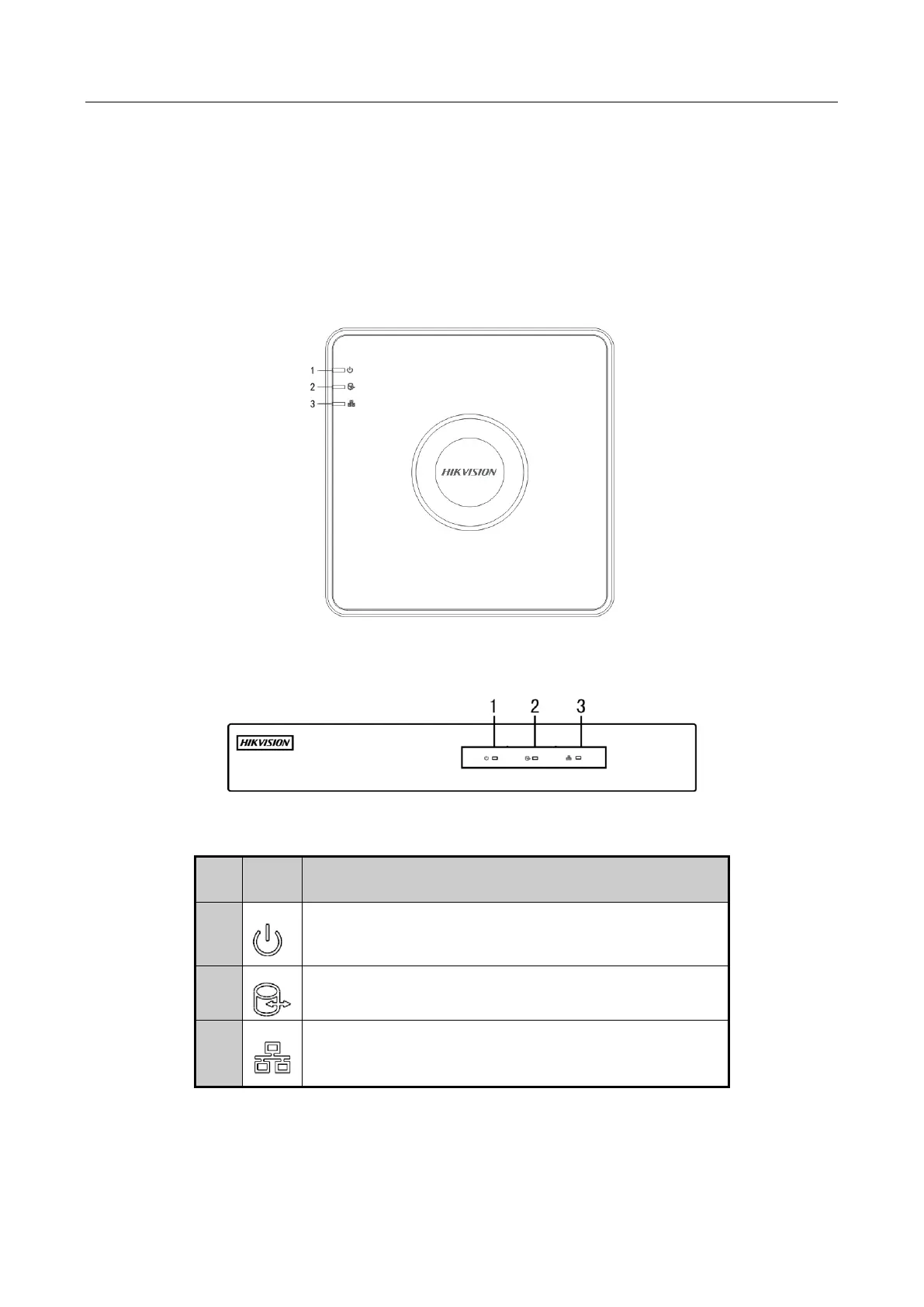

Figure 1-1 Front Panel of DS-7100
Front Panel 2:
Figure 1-2 Front Panel of DS-7200HGHI
Table 1-1 Descriptionon of Front Panel
No.
Icon
Description
1
Turns red when DVR is powered up.
2
Turns red when data is being read from or written to
HDD.
3
Flickers blue when network connection is functioning
properly.
Front Panel 3:
