Digital Video Recorder User Manual
170
You can adjust the size and position of textbox on the live view screen of POS settings interface by
dragging the frame.
Step 8 Click Apply to activate the settings.
Step 9 (Optional) You can click the Copy button to copy the current settings to other POS (s).

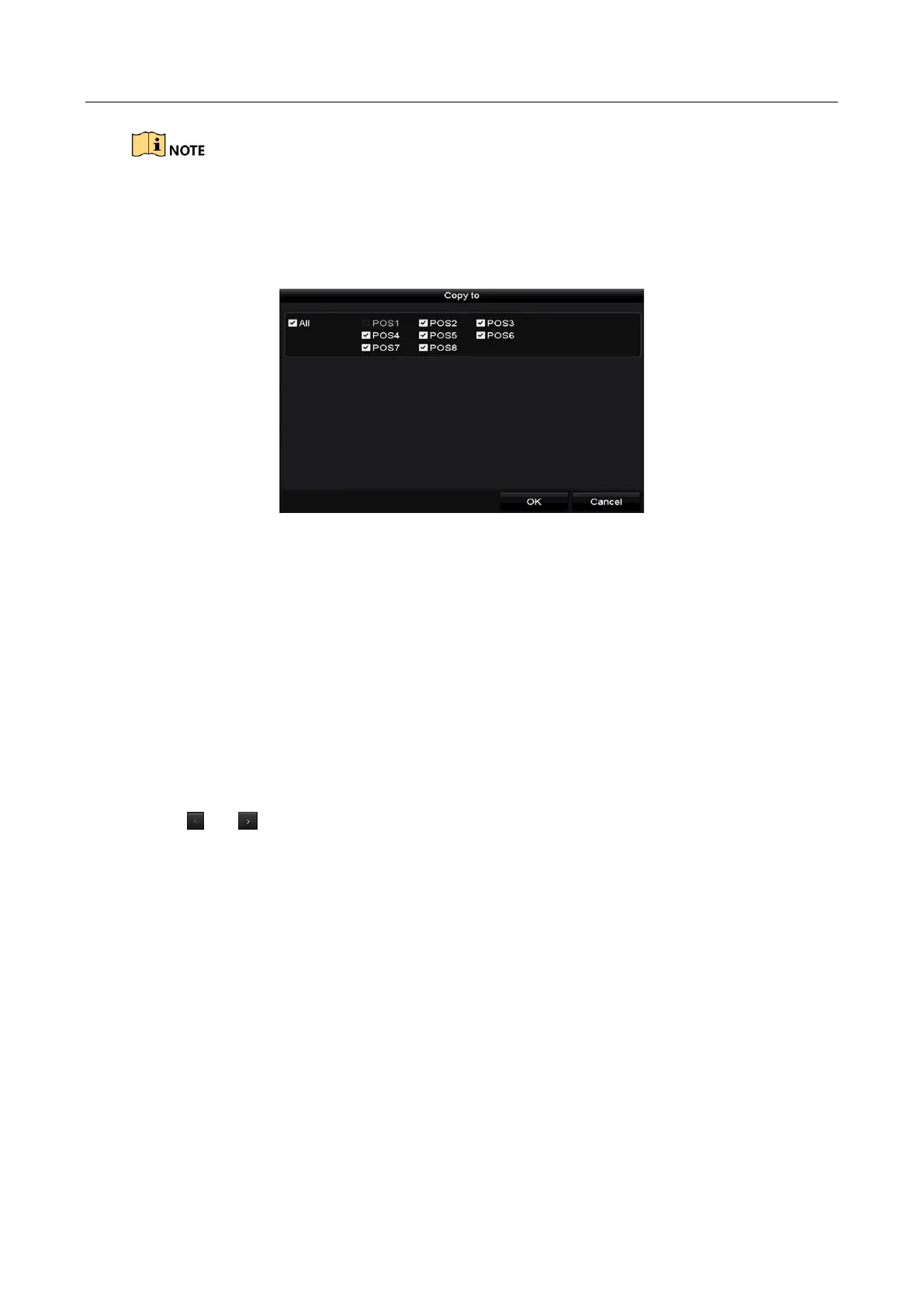

Figure 9-13 Copy POS Settings
9.2 Configuring Overlay Channel
Purpose
You can assign the POS machine to corresponding channel on which you want to overlay.
Step 1 Enter the Overlay Channel interface.
Menu > Configuration > POS > Overlay Channel
Step 2 Click to select an analog or IP camera from the camera list on the right, and then click a POS
item from the POS list you want to overlay on the selected camera.
Click or to go to the previous or next page of cameras.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
