HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
213

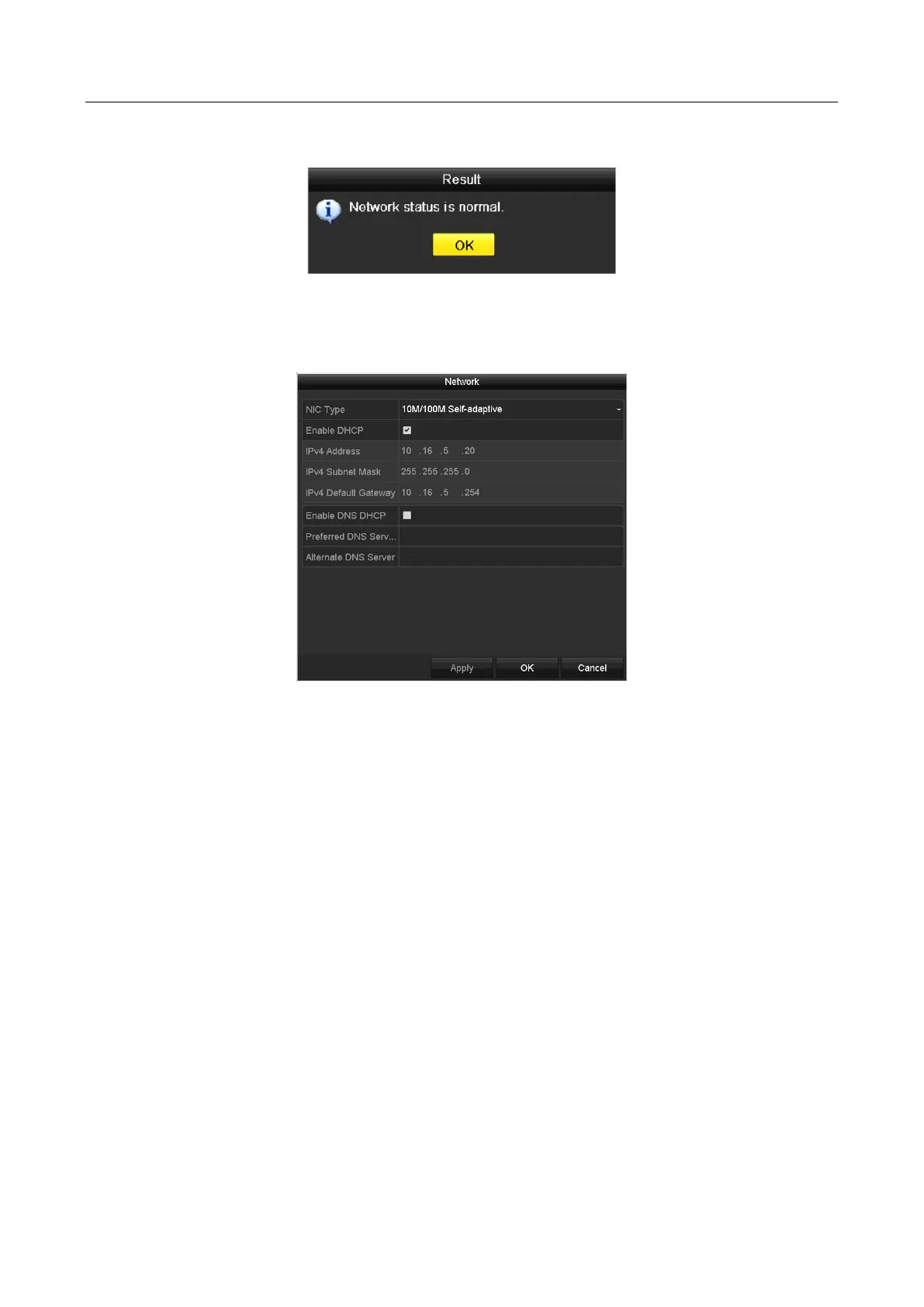

If the network is normal the following message box pops out.
Figure 12-29 Network Status Checking Result
If the message box pops out with other information instead of this one, you can click
Network button to show the quick setting interface of the network parameters.
Figure 12-30 Network Parameters Configuration
12.3.4 Checking Network Statistics
Purpose:
You can check the network statistics to obtain the real-time information of the device.
Step 1 Enter the Network Statistics interface.
Menu > Maintenance> Net Detect
Step 2 Click the Network Stat. tab to enter the Network Statistics interface.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
