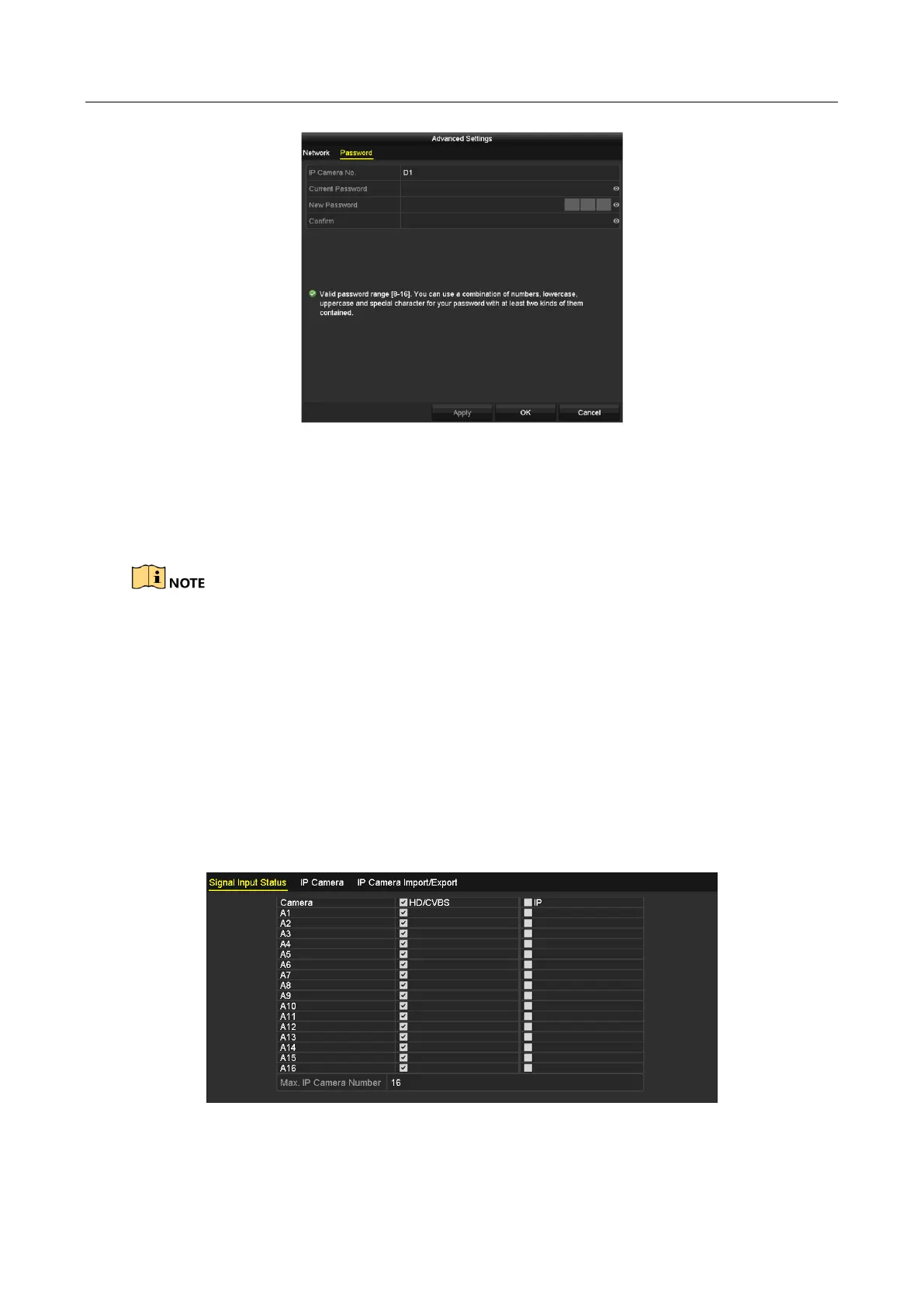

HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
75
Figure 2-45 Password Configuration of the Camera
Step 5 Click OK to save the settings and exit the interface.
2.7 Configuring the Signal Input Channel
For -E series DVR, there is no signal input configuration interface.
Purpose
For all the -F series DVR, you should configure the analog and IP signal input types.
Step 1 Enter the Signal Input Status interface.
Menu > Camera > Signal Input Status
Step 2 Check the checkbox to select different signal input types: HD/CVBS and IP. If you select
HD/CVBS, four kinds of analog signal inputs including HDTVI, AHD, HDCVI and CVBS can be
connected randomly for the selected channel. If you select IP, IP camera can be connected
for the selected channel.
Figure 2-46 Configure Signal Input Type

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
