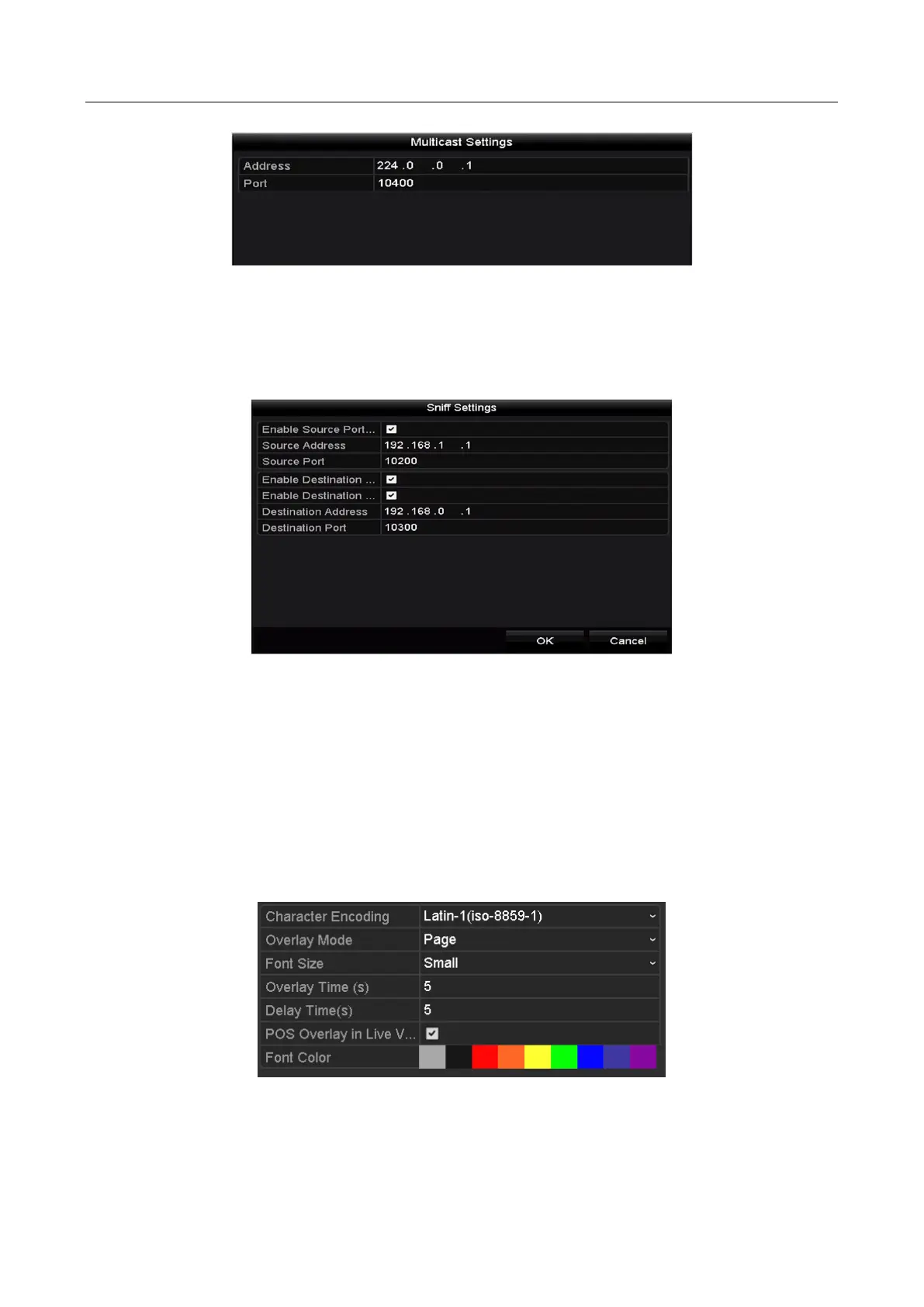

Figure 9-10 Multicast Settings
 Sniff Connection
Connect the DVR and the POS machine via Sniff. Configure the source address and
destination address settings.
Figure 9-11 Sniff Settings
Step 7 Set other parameters of characters overly.
4) Select the character encoding format from the drop-down list.
5) Select the overlay mode of the characters to display in scrolling or page mode.
6) Select the font size to small, medium or large.
7) Set the overlay time of the characters. The value ranges from 5 to 3600 sec.
8) Set the delay time of the characters. The value ranges from 5 to 3600 sec.
9) (Optional) Check the checkbox to enable the POS Overlay in Live View.
10) Select the font color for the characters.
Figure 9-12 Overlay Character Settings

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
