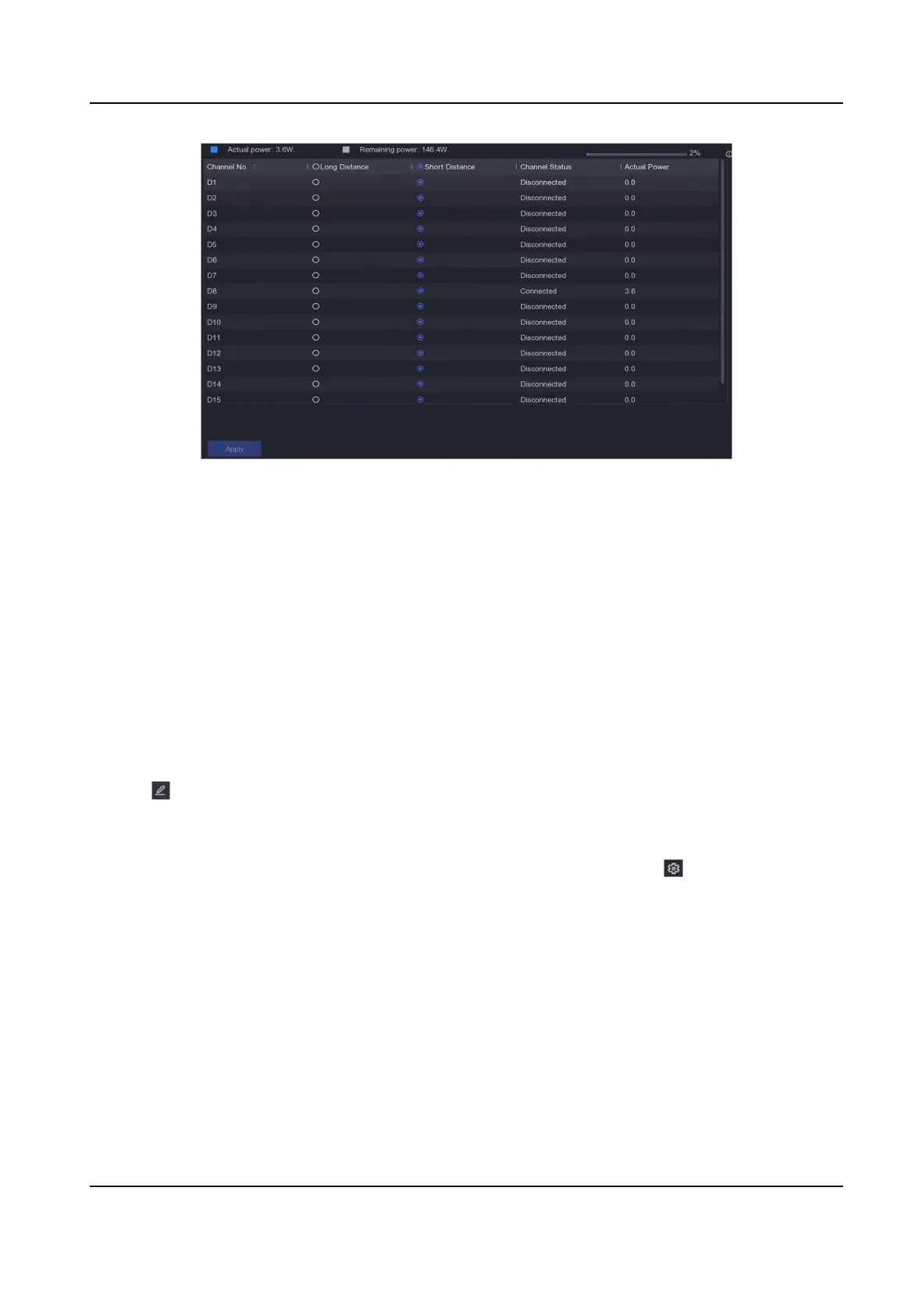

Figure 6-12 Add PoE Camera
3. Click Apply.
4. Connect PoE cameras to your device PoE interfaces with network cables.
What to do next
The connected PoE camera will be displayed in
Conguraon → Camera → Camera → IP Channel .
You can click its status to view live image.
Add Non-PoE Network Camera
You can use the PoE channel resource to connect a non-PoE network camera.
Steps
1. Go to Conguraon → Camera → Camera → IP Channel .
2. Click of a channel with no linked network camera.
3. Select Adding Method as Manual.
Plug-and-Play
The camera is physically connected to the PoE interface. You can click
in the added device
list to edit its parameters.
Manual
Add IP camera without physical
connecon via network cable.
4. Set other parameters, such as user name, password, and IP address.
Congure
Channel Type
You can disable a PoE channel to addionally increase a normal IP channel resource.
