Network Video Recorder User Manual
32

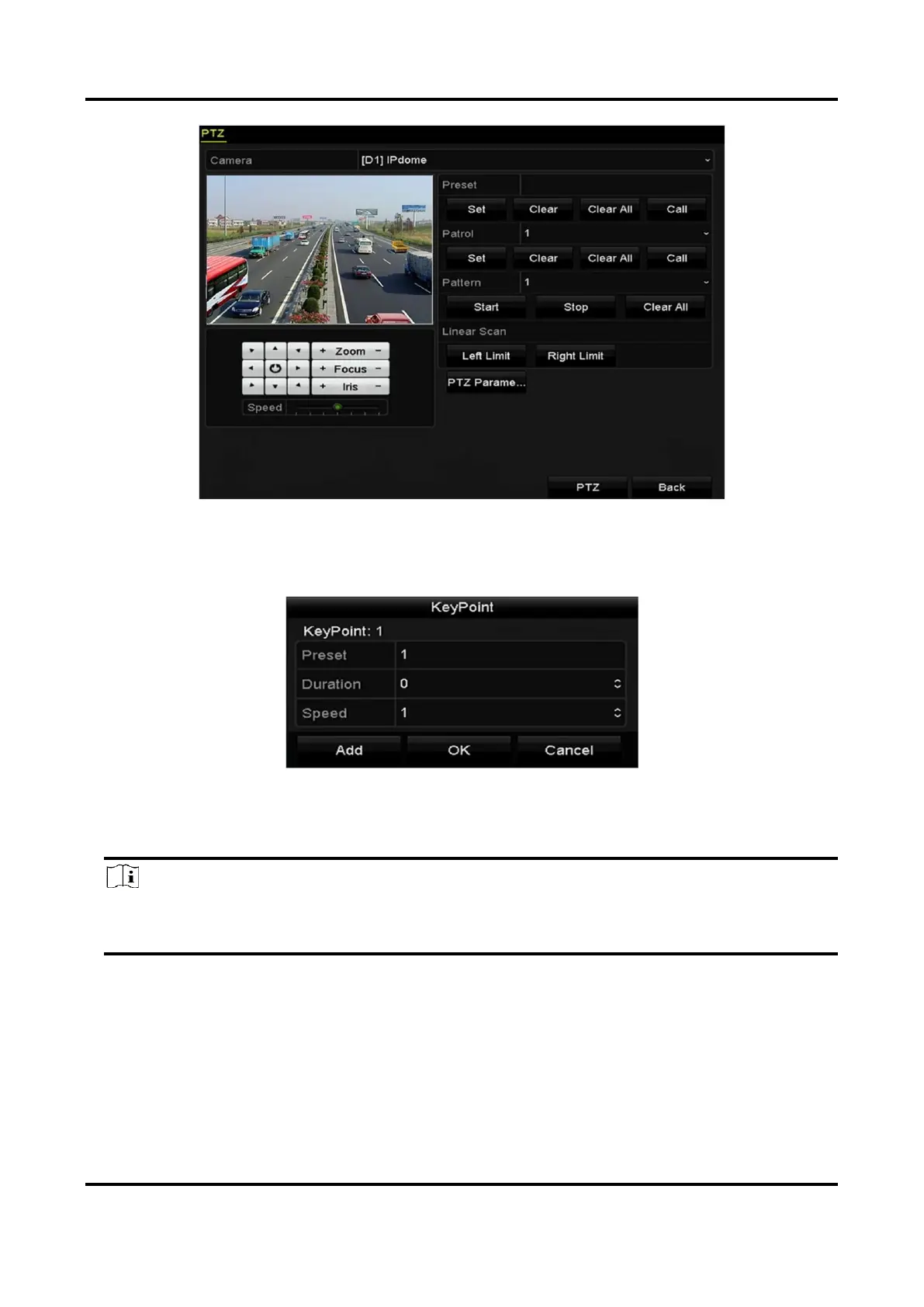

Figure 3-15 PTZ Settings
2. Select patrol No. in the drop-down list of patrol.
3. Click Set to add key points for the patrol.
Figure 3-16 Key point Configuration
4. Configure key point parameters, such as the key point No., duration of staying for one key point
and speed of patrol.
Note
The key point is corresponding to the preset.
Key Point No.
determines the order at which the PTZ will follow while cycling through the patrol.
Duration
refers to the time span to stay at the corresponding key point.
