Network Video Recorder User Manual
49

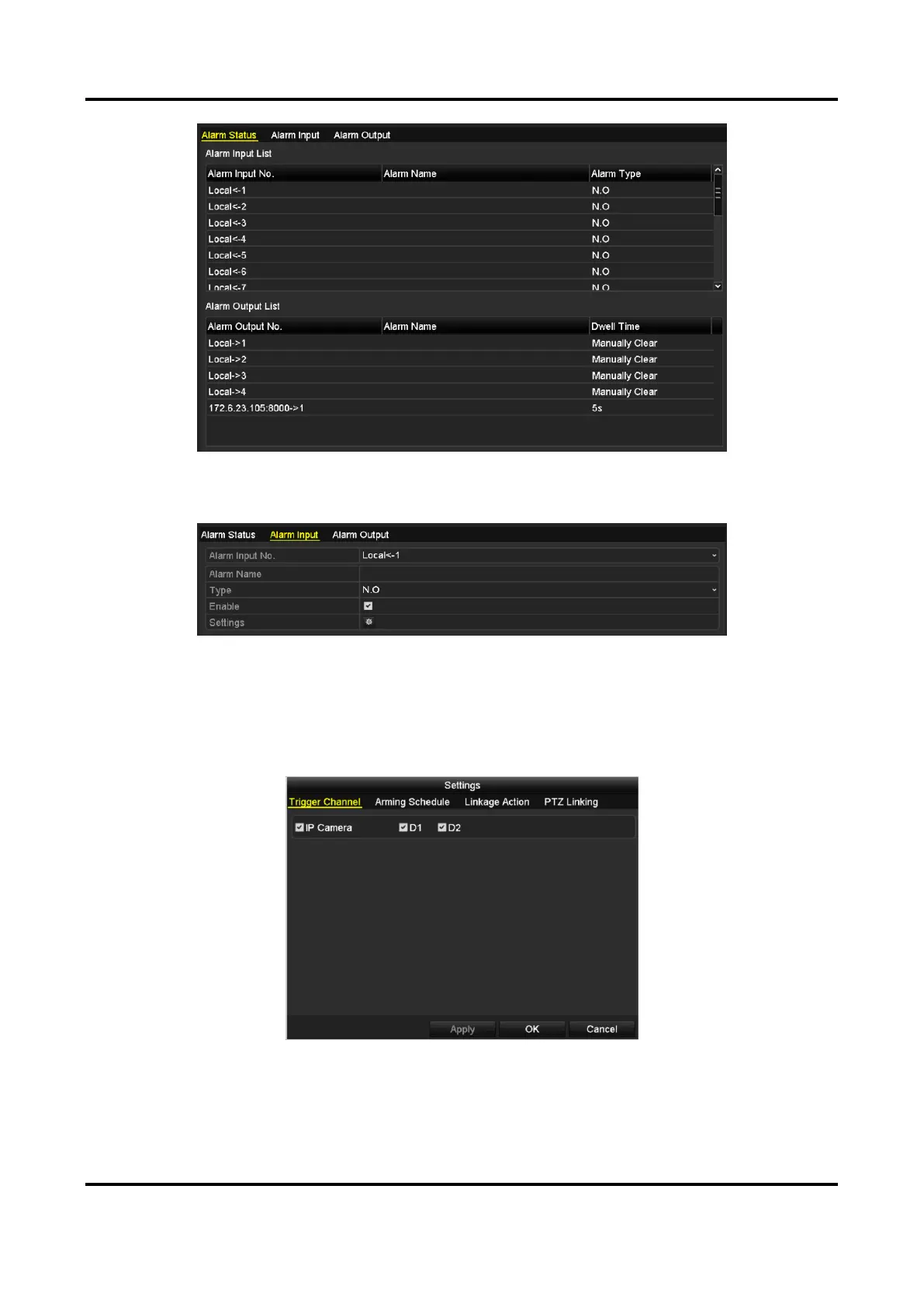

Figure 4-13 Alarm Settings
2. Click Alarm Input.
Figure 4-14 Alarm Settings- Alarm Input
1) Select Alarm Input number and configure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check the checkbox.
4) Click Settings.
Figure 4-15 Alarm Settings
1. Choose the alarm triggered recording channel.
2. Check the checkbox to select channel.
