User Manual of DS-7200-ST Series DVR
38

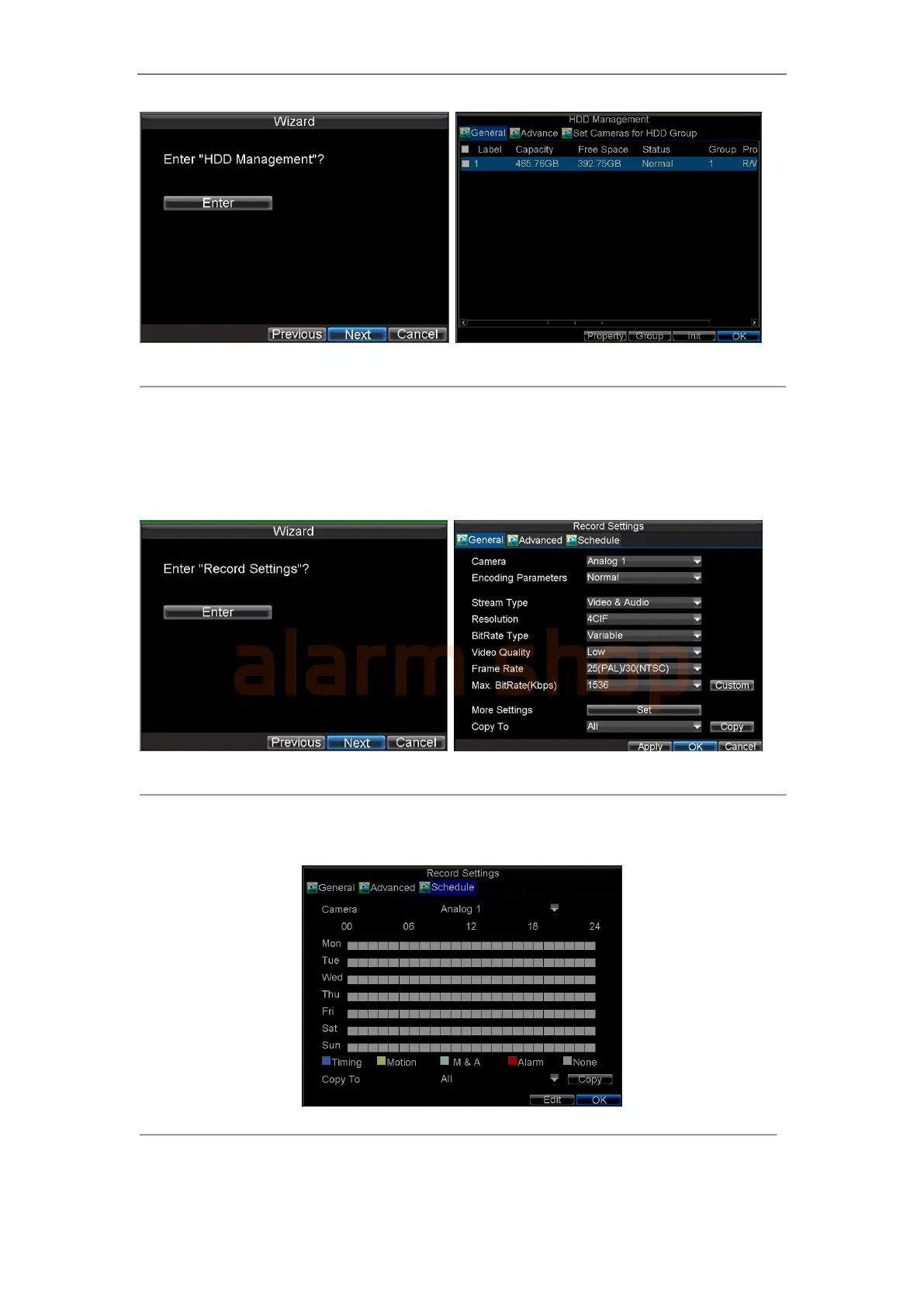

Figure 5. HDD Management
6. To access HDD management interface, click the Enter button.
7. If a new HDD has been recently installed, select the HDD from the list to initialize it. Initializing
the HDD will format and remove all data from it.
8. After the HDD has been initialized, click the OK button which will take you back to the Setup
Wizard window.
9. Click Next button to enter the Record Settings dialogue box, as shown in Figure 6.
Figure 6. Record Settings
10. Click the Enter button to enter Record Settings interface.
11. Select the Schedule tab, shown in Figure 7.
Figure 7. Schedule Settings
12. Click Edit button to enter a new recording schedule, shown in Figure 8.
13. Check both the Enable Schedule and All Day checkbox. This will enable the recording schedule
To Next Page
