1 2 S E T U P R E C O R D I N G ( c o n t i n u e d )
• Video Quality adjusts picture clarity (medium setting = three green squares is
recommended). Medium setting is a balance between good picture and saving HDD space.
• Frame Rate sets recording frame rate (12-15 fps is recommended to save HDD space and
prevent “choppy” video).
• Max Bitrate Mode chooses between pre-set bitrate values and customized values (General
setting is recommended).
• Max Bitrate (KBPS) is the chosen bitrate for streaming the video.
• Max Bitrate Recommended is the recommended bitrate according to the parameters set.
• Record Audio turns audio recording on/off (available only if camera has a connected
microphone or only analog channels 1-4).
• Video Stream changes recording between Main Stream and Sub Stream (requires restart).
Recommended Recording Parameters
Resolution
Video Quality
Frame Rate (
fps
)
Bitrate (K
bps
)
320 x 240 (QVGA)
Medium (3 squares)
12-15
207
352 x 240 (CIF)
384
640 x 480 (VGA)
768
704 x 480 (4CIF)
1024
1280 x 720 (720p)
2048
1280 x 960 (960p)
2048
1600 x 1200 (2 MP)
2560
1920 x 1080 (1080p)
3072
2048 x 1536 (3 MP)
3072
256
0 x 1920 (5 MP)
8
4096
8. Set up the Sub Stream to stream to mobile devices and display multiple cameras locally.
NOTE: If upload speed is insufficient, lower frame rate, bitrate, and/or resolution.


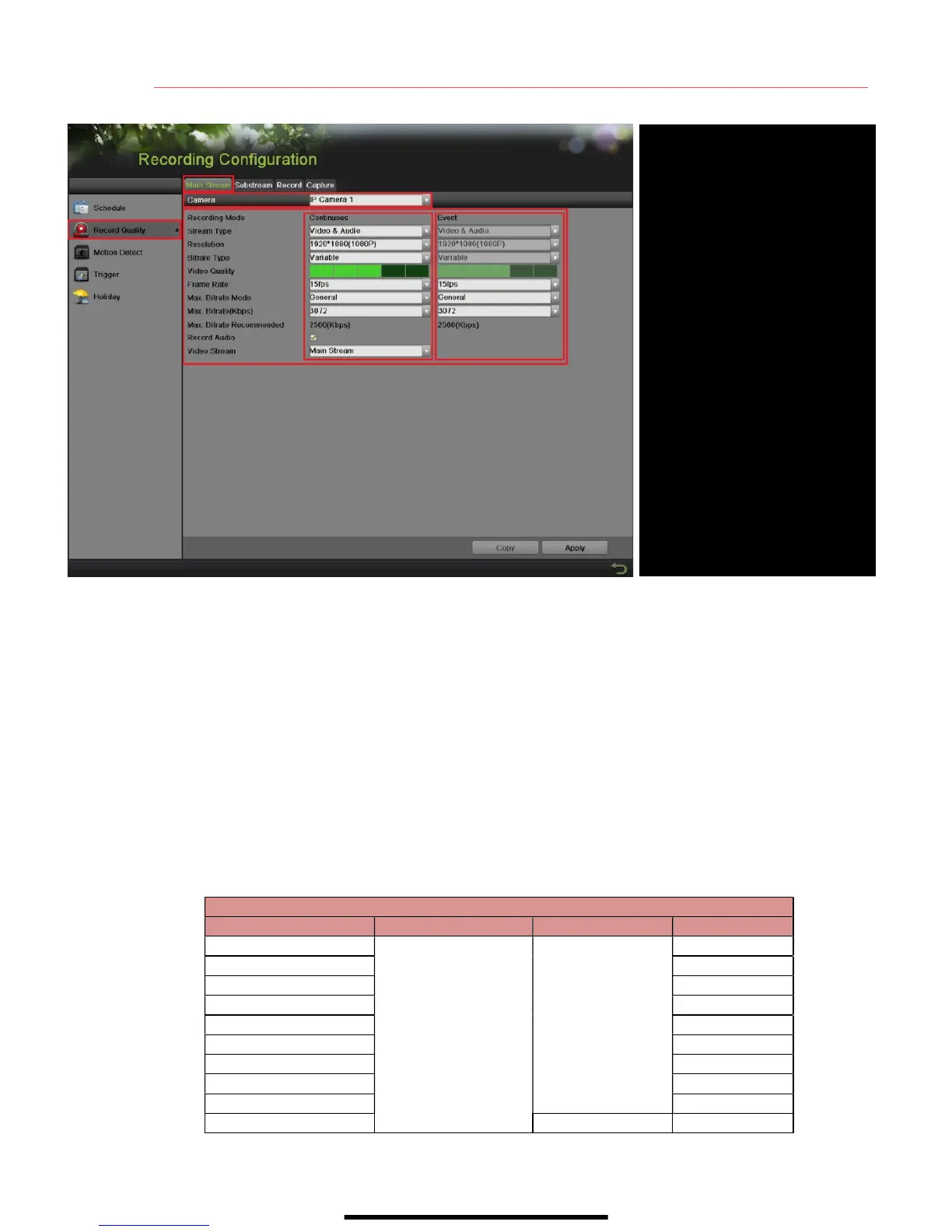

MAIN
STREAM
Select tab
 CAMERA
Select camera
 EVENT
For event recording only (motion
or alarm)
CONTINUOUS
For live view image and
continuous recording
VIDEO QUALITY
Selectnumber of green squares
to set quality (in example,
sensitivity is set to 3)







HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
