HIKVISION DS-7204HGHI-SH Quick Start Guide

9 A D D I P C A M E R A S
1. Right click a window in Live View mode to display the Quick Menu.
2. Highlight Add IP Camera and select Auto or Manual.
• Auto: System will add the first two pre-activated Hikvision cameras automatically
• Manual: Use if there are more than two Hikvision cameras on the network or if the
cameras have not yet been activated
˗ Add the desired camera(s) by clicking the + sign in front of the camera listing(s)
˗ Non-activated cameras will automatically be activated when added

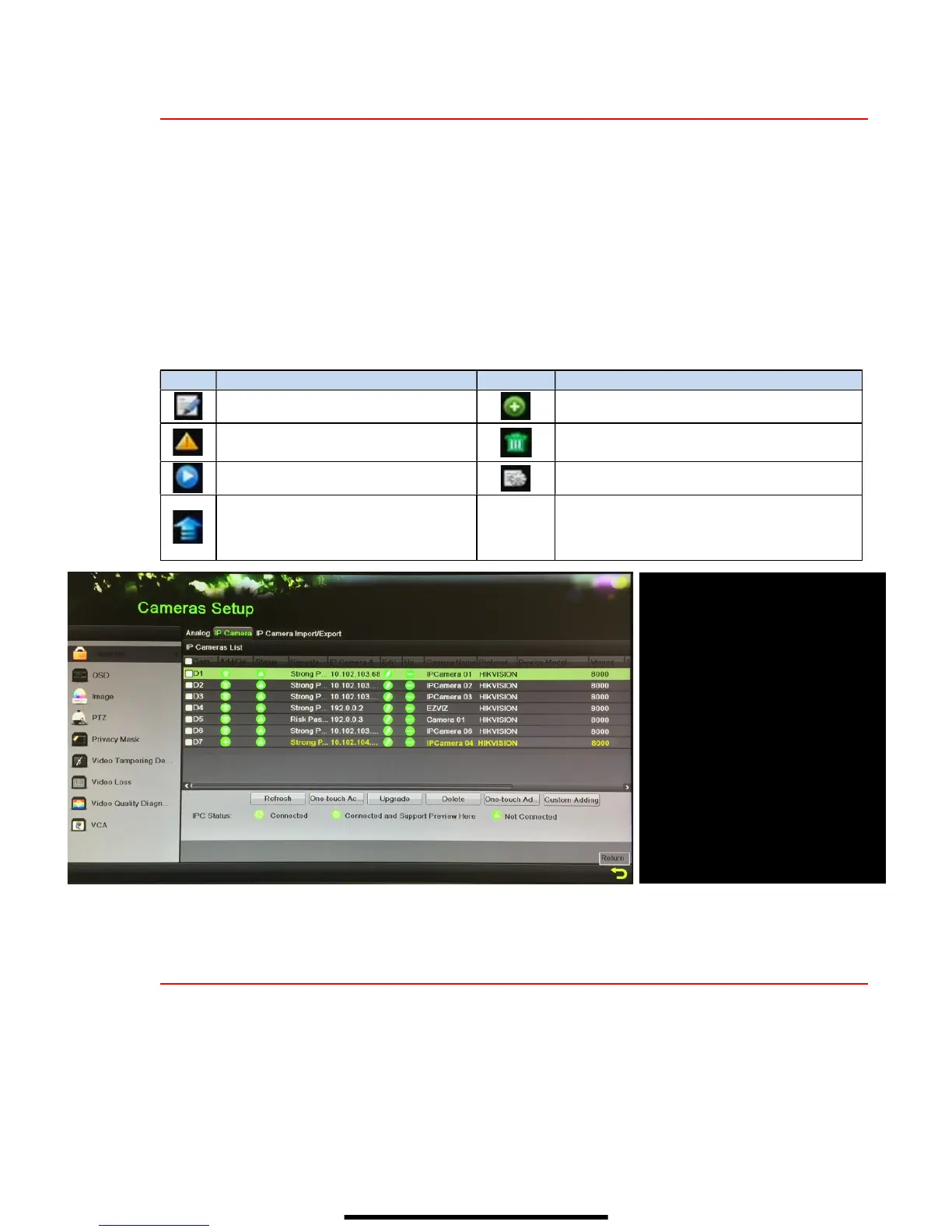

IP Camera Management Icons
Icon
Explanation
Icon
Explanation
Edit basic camera parameters
Add the detected IP camera
Camera is disconnected; click icon
for
camera’s exception information
Delete the IP camera
Play camera’s live video
Advanced camera settings
Upgrade the connected camera Security
Show active/inactive camera security
status or the password strength
10 A D D A N A L O G C A M E R A S
 Adding Analog Cameras
1. Connect analog camera(s) to the “Video In” BNC connectors.
 Enabling Analog Cameras
Analog cameras are enabled by default; no further action is required.

TRASH
CAN
Press to delete camera
 +
 Press to add camera
EDIT
Press to change IP address
CAMERA LIST (WHITE)
Added cameras 
CAMERA LIST (YELLOW)
Detected cameras 
REFRESH
Press to find network cameras 
NOTE: To change camera
name, go to OSD.







HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
