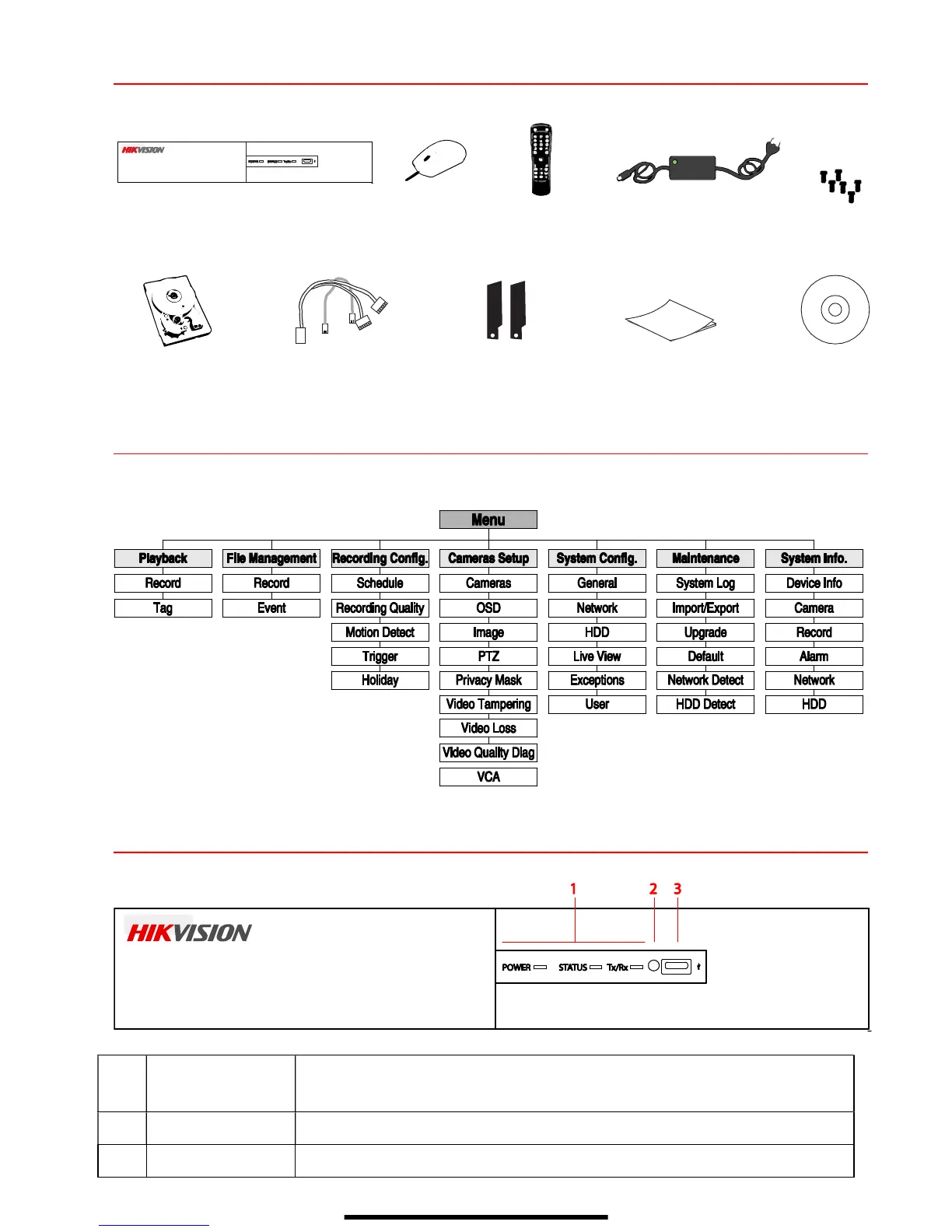

HIKVISION DS-7204HGHI-SH Quick Start Guide


W H A T ’ S I N T H E B O X
Make sure the following items are in your box:
DVR Mouse Remote Power Supply HDD Screws
(Installed)
HDD HDD Cables Ear Mounts QSG DVD-ROM
(Installed) (Installed)

M E N U T R E E
Use this menu tree to navigate the embedded menus.

F R O N T P A N E L
1. Status Indicators
•
Power:
Illuminates
when
rear panel
power switch is turned on.
• Status: Blinks when data is being read from or written to HDD.
•
TX/RX:
B
links when network connection is f
unctioning properly.
2. IR Receiver Receiver for IR remote
3. USB Port Connects USB mouse or USB flash memory devices

HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
