HIKVISION DS-7204HGHI-SH Quick Start Guide

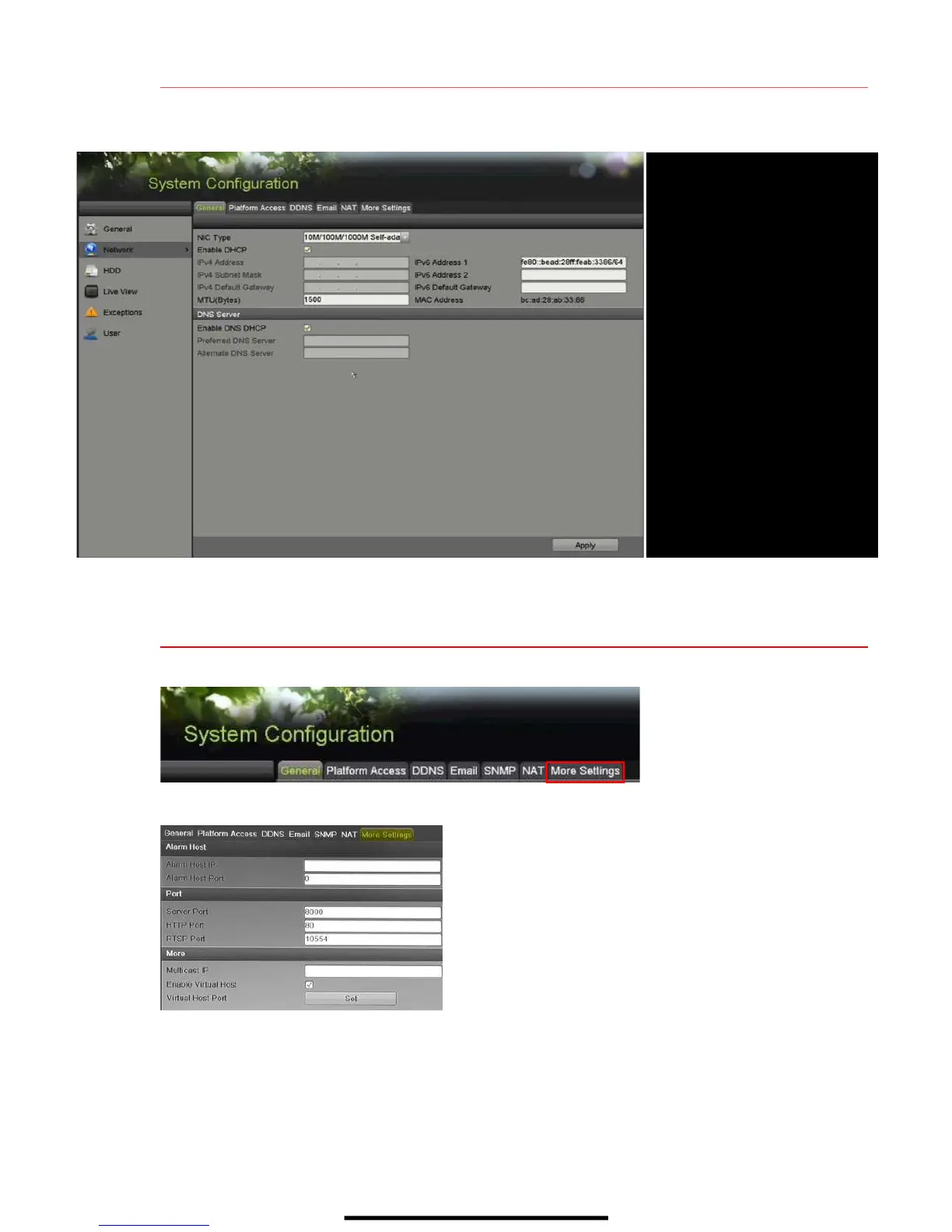

6 S E T U P N E T W O R K A C C E S S ( c o n t i n u e d )
4. Disable DHCP (uncheck the checkbox).
5. Change “Preferred DNS Server” value to 8.8.8.8 (leave Alternate DNS Server blank).
7 S E T C O M M U N I C A T I O N P O R T S
After assigning the IP information, click the More Settings tab.
The More Settings tab contains the ports that need to be forwarded for remote access.
• SERVER PORT is responsible for the mobile app and client software log-in.
• HTTP PORT is responsible for Web browser log-in.
• RTSP PORT is responsible for video/audio streaming.
NOTE: The HTTP port, server port, and RTSP can be changed to avoid conflicts
with the ISP or if multiple devices are installed at a single location.

GENERAL TAB
Select this tab
 NIC TYPE
Not changeable
ENABLE DHCP
Check box so that router will
assign IP address
IP V4 ADDRESS
Default 192.0.0.64
PREFERRED DNS SERVER
Default is 8.8.8.8
ALTERNATE DNS SERVER
Leave blank or use 75.75.75.75
or other known DNS address







HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
