HIKVISION DS-7204HGHI-SH Quick Start Guide

11 V I E W L I V E V I D E O
Live View displays real-time video.
12 S E T U P R E C O R D I N G
Set up recording to capture camera video.
 Continuous Recording (Default)

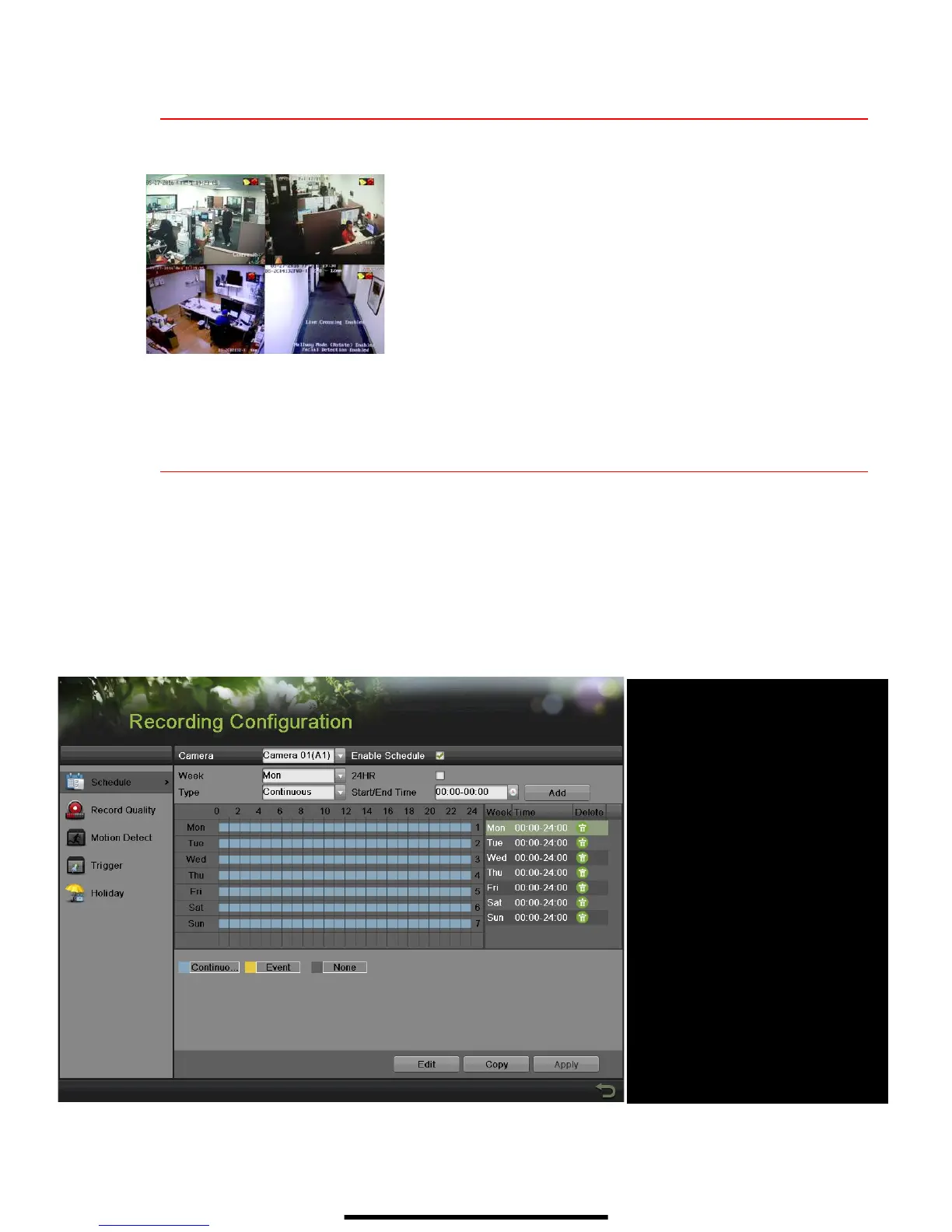

1. Go to MENU > RECORDING CONFIGURATION.
2. Click CONTINUOUS under the calendar (blue) and the cursor will change to a wand.
3. Select the calendar days you wish to record continuously and the days will turn blue.
4. Press APPLY.
Icons in the upper
-
rig
ht of screen show each
camera’s record and alarm status.
• Alarm (video loss, tampering, motion
detection, sensor alarm, or VCA alarm)
• Record (manual record, continuous
record, motion detection, alarm, or VCA
triggered record)
• Event/Exception (event and exception
information appears at lower-left corner of
screen)

COLOR
Shows Recording Schedule:
• Blue=Continuous
• Yellow=Event (motion/alarm)
• Grey=None
 SECTION
Customize part of existing schedule
(ignore for “motion only” recording)
 SCHEDULE TYPE
Motion or Continuous (default)
ENABLE SCHEDULE
If not checked, camera will not record






HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
