Chapter3 Operational Instructions
3.1 Front panel introduce

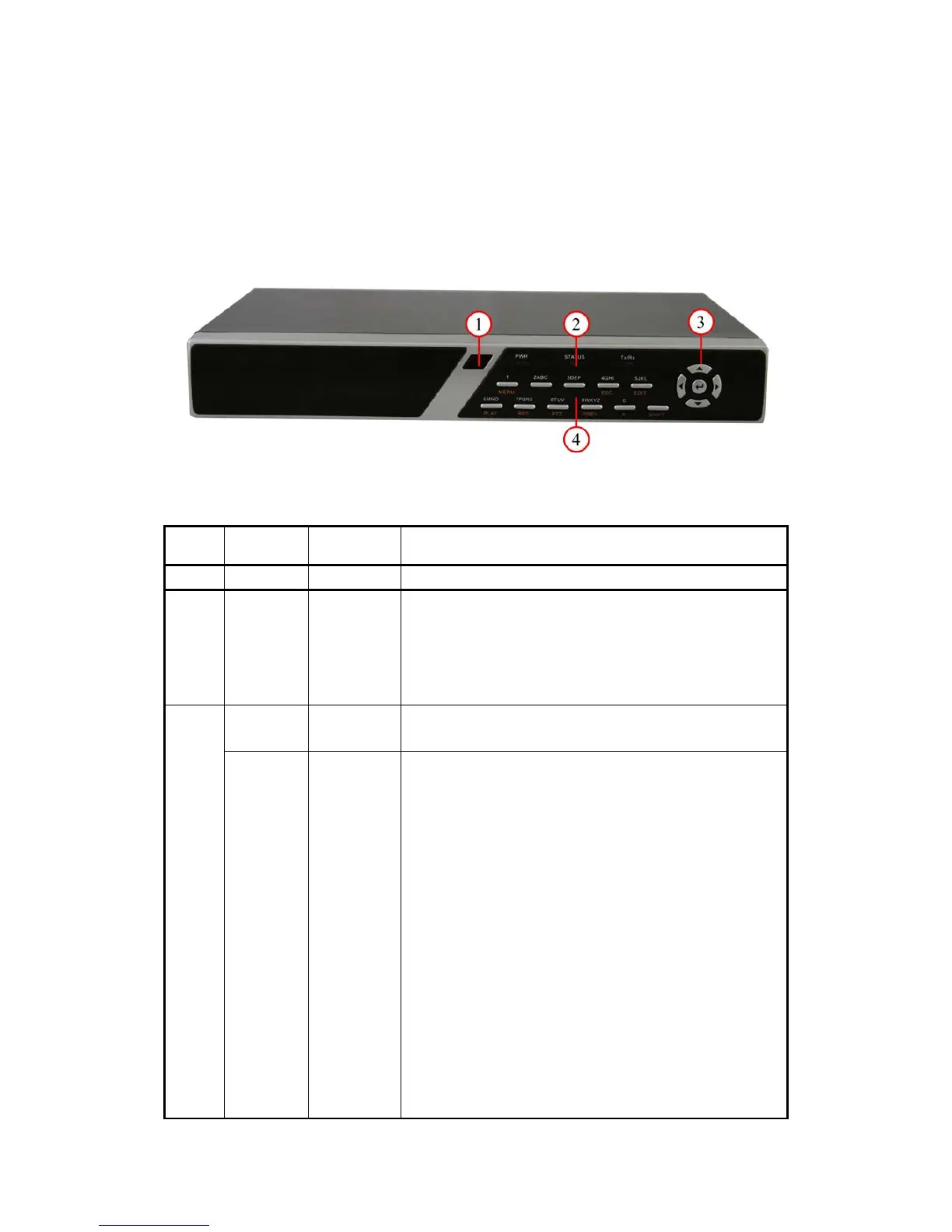

Fig 3-1 Front panel introduce
Form 3-1 Items on front panel
Index Type Name Description
1 Lamp IR receiver.
2 State
Lamps
Power
STATUS
Tx/Rx
Green means DVR is working; Red means DVR is powered
off;
Green means you can use IR remote control.
Twinkle means data are transmitting.
Numeric
Keys
Input number, lower case, upper case character and
symbols.
3
Function
Keys
MENU
2
3
ESC
EDIT
PLAY
REC
PTZ
1. Switch preview mode into menu;
2. Brush control short key【WIPER】.
3. Press 【MENU】for more than 5 seconds to cancel
button beep sound.
【ZOOM-】in PTZ control.
【ZOOM+】in PTZ control.
Cancel and back to parent menu.
1. In edit state, delete the current cursor character;
2. 【IRIS+】in PTZ control;
3. Select 9 or × to enable or disable.
1. Local playback;
2. 【AUTO】in PTZ control.
1. Manual record;
2. 【SHOT】in PTZ control (adjust preset).
1. Enter into PTZ control mode;
2. 【IRIS-】in PTZ control..
8
To Next Page
