HIKVISION DS-7208HGHI-E1 - Rear Panel

Digital Video Recorder User Manual
42
Lowercase/Uppercase
Backspace
Switch the keyboard
Space
Positioning the cursor
Enter
Symbols
Reserved

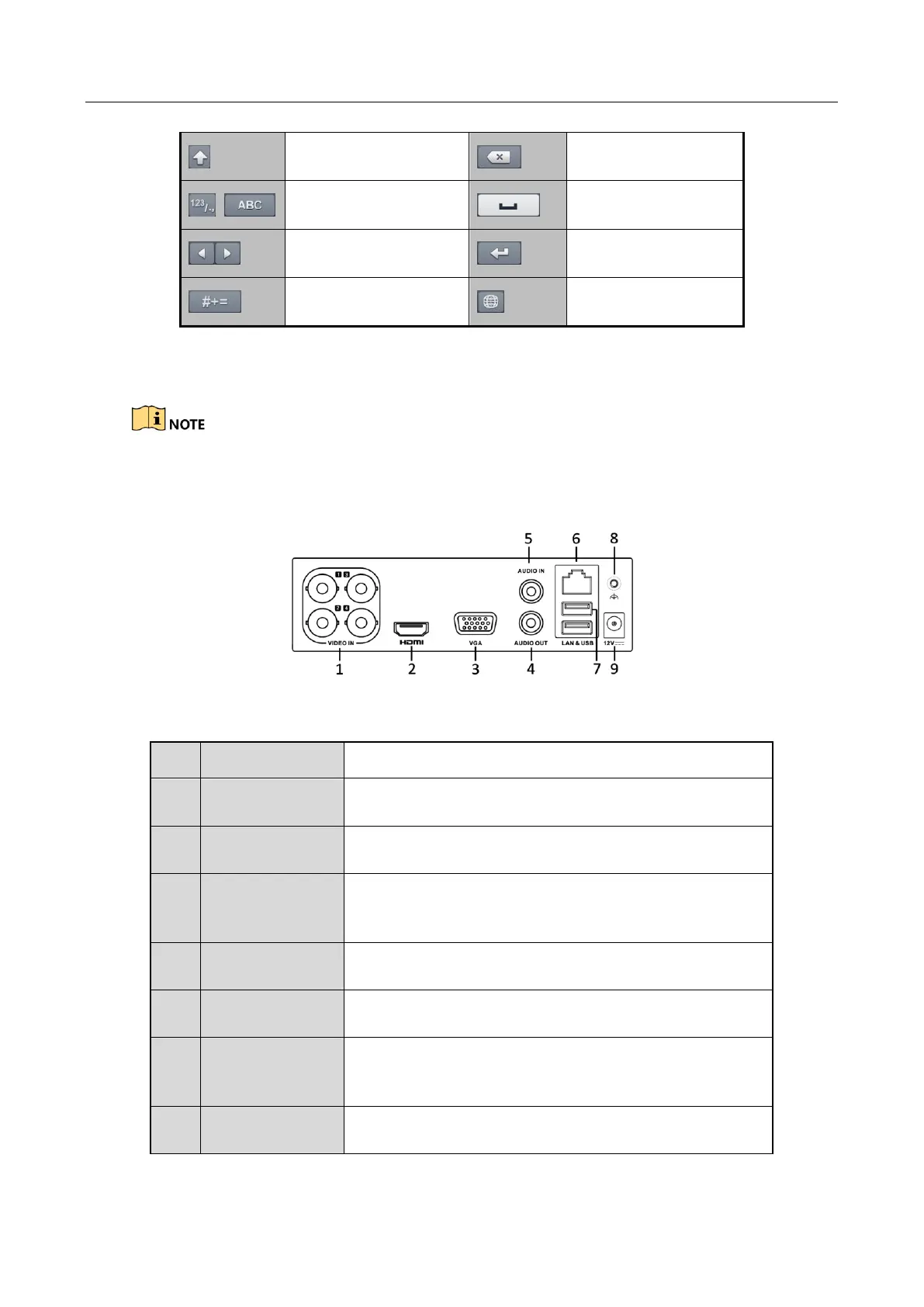

1.5 Rear Panel
The rear panel vaires according to different models. Please refer to the actual product. The
following figures are for reference only.
Rear Panel 1:
Figure 1-11 Rear Panel of DS-7100
Table 1-10 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC interface for HDTVI, and analog video input.
2
HDMI
HDMI video output connector.
3
VGA
DB15 connector for VGA output. Display local video
output and menu.
4
AUDIO OUT
RCA connector.
5
AUDIO IN
RCA connector.
6
Network
Interface
Connector for network
7
USB Port
Universal Serial Bus (USB) port for additional devices.
