HIKVISION DS-7604NI-E1/4P User Manual

Network Video Recorder User Manual
107

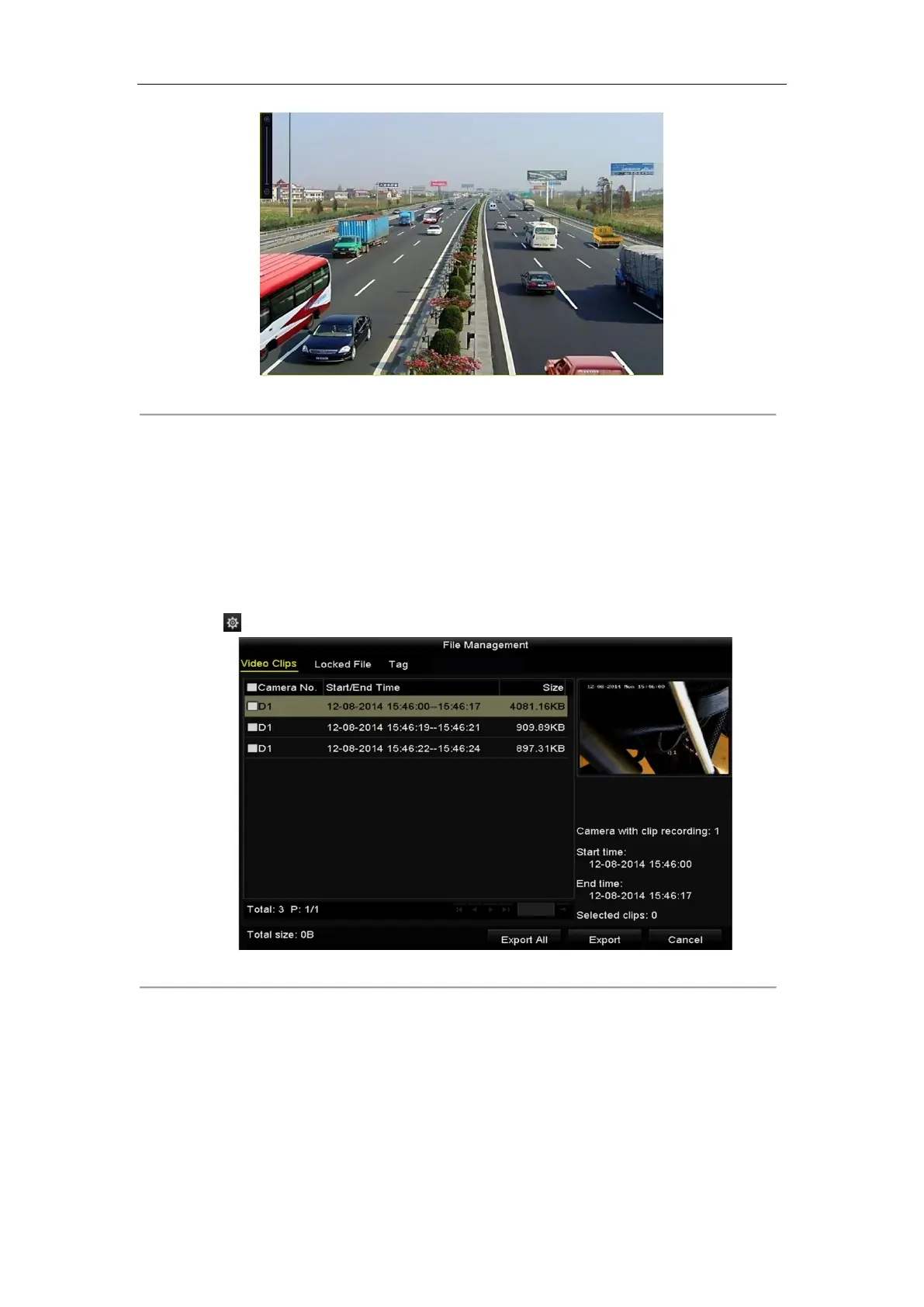

Figure 6. 23 Draw Area for Digital Zoom
5. Right-click the image to exit the digital zoom interface.
6.2.5 File Management
You can manage the video clips, locked files and tags you have added in the playback mode.
Steps:
1. Enter the playback interface.
2. Click on the toolbar to enter the file management interface.
3.
Figure 6. 24 File Management
4. You can view the saved video clip, lock/unlock the files and edit the tags which you added in the playback
mode.
If required, select the items and click Export All or Export to export the clips/files/tags to local storage device.

HIKVISION DS-7604NI-E1/4P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	4 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	5
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	230 mm
Width	315 mm
Height	45 mm
Weight	1000 g
