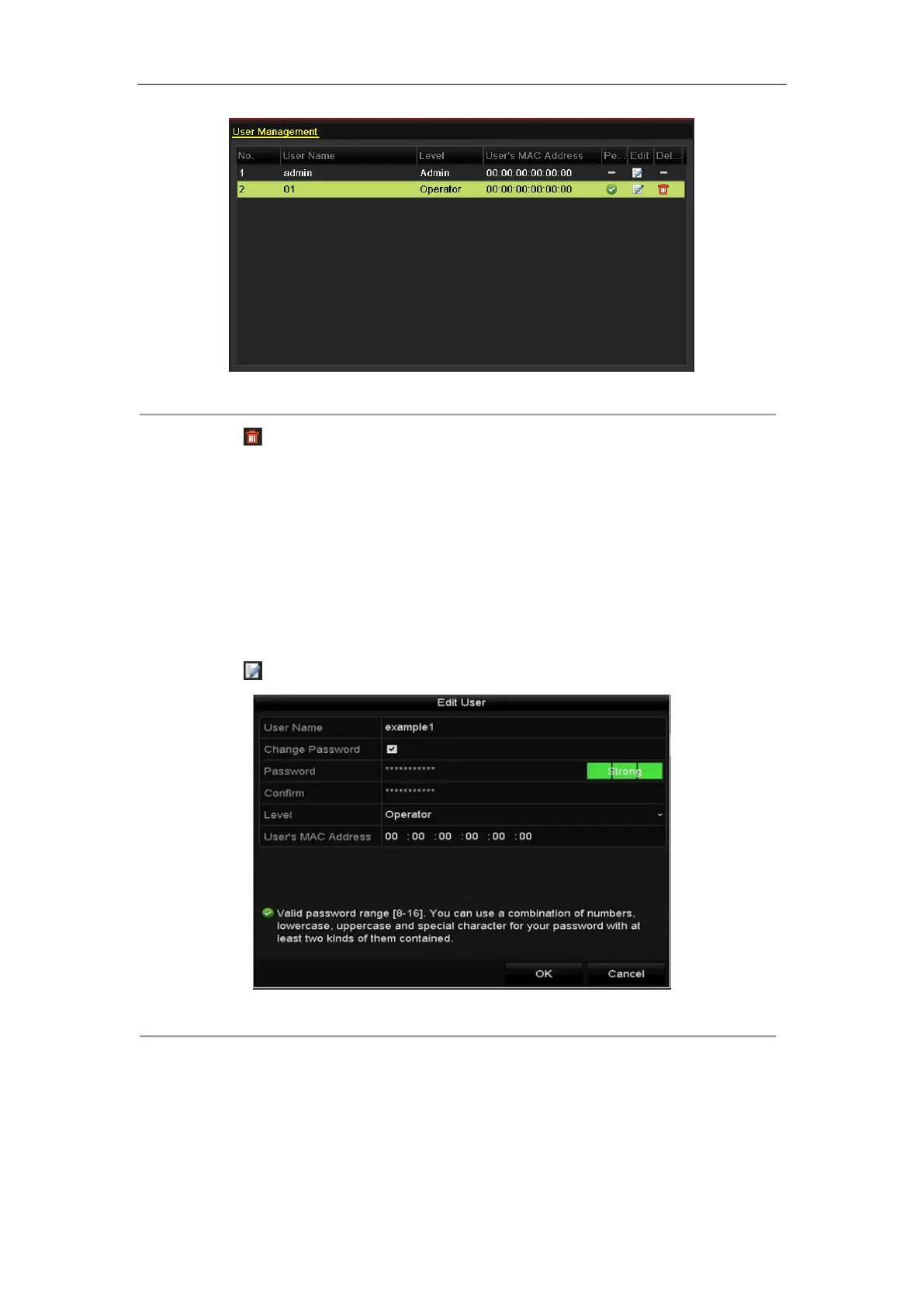

Network Video Recorder User Manual
214
Figure 15. 10 User List
3. Click the icon to delete the selected user account.
15.5.3 Editing a User
For the added user accounts, you can edit the parameters.
Steps:
1. Enter the User Management interface.
Menu >Configuration>User
2. Select the user to be edited from the list, as shown in Figure 15. 10.
3. Click the icon to enter the Edit User interface, as shown in Figure 15.11.
Figure 15. 11 Edit User (Operator/Guest)

Table of Contents

Other manuals for HIKVISION DS-7604NI-E1/4P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7604NI-E1/4P and is the answer not in the manual?

HIKVISION DS-7604NI-E1/4P Specifications

General IconGeneral
Display modesLive view
Maximum frame rate60 fps
Maximum resolution1920 x 1080 pixels
Alarm input channels4
Video input channels4 channels
Alarm output channels1
Resolution at capture speed1920x1080@60fps
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Power consumption (typical)10 W
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports5
HDD interfaceSerial ATA
Maximum storage capacity6 TB
Total installed storage capacity0 GB
Weight and Dimensions IconWeight and Dimensions
Depth230 mm
Width315 mm
Height45 mm
Weight1000 g
