DS-7700NI-E4 Series

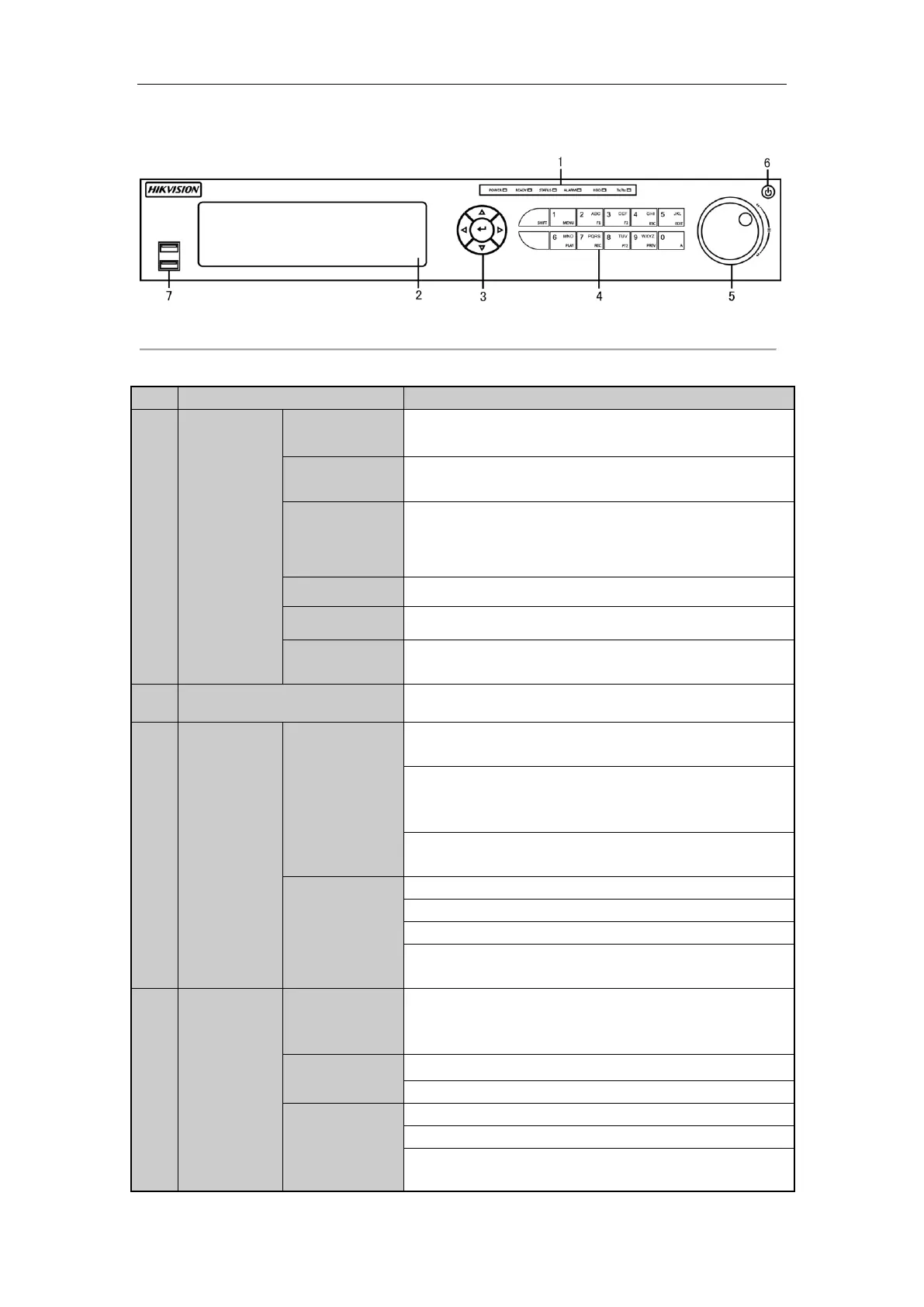

Figure 1. 2 DS-7700NI-E4 Series
Table 1. 2 Description of Control Panel Buttons
No.
Name
Function Description
1
Status
Indicators
POWER
Turns green when NVR is powered up.
READY
Turns green when the device is running normally.
STATUS
Turns green when the IR remote control is enabled;
Turns red when the function of the composite keys (SHIFT) are
used.
ALARM
Turns red when there is an alarm occurring.
HDD
Flickers red when HDD is reading/writing.
Tx/Rx
Flickers green when network connection is functioning normally.
2
DVD-R/W
Slot for DVD-R/W.
3
Control
Buttons
DIRECTION
Navigates between different fields and items in menus.
In the playback mode, use the Up and Down buttons to speed up
and slow down recorded video. Use the Left and Right buttons to
select the next and previous video files.
Cycles through channels in live view mode.
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox fields.
Plays or pauses the video playing in playback mode.
Advances the video by a single frame in single-frame playback
mode.
4
Composite
Keys
SHIFT
Switches between the numeric or letter input and functions of the
composite keys. (Input letter or numbers when the light is out;
Realize functions when the light is red.)
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1
Enters numeral “2”;
Enters letters “ABC”;
Uses the F1 button in a list field to select all items.
