13.3 Configuring Video Parameters
Purpose:
You can customize the image parameters including the brightness, contrast, saturation, image rotate and mirror for
the live view and recording effect.
Steps:
1. Enter the Image Settings interface.
Menu > Camera >Image

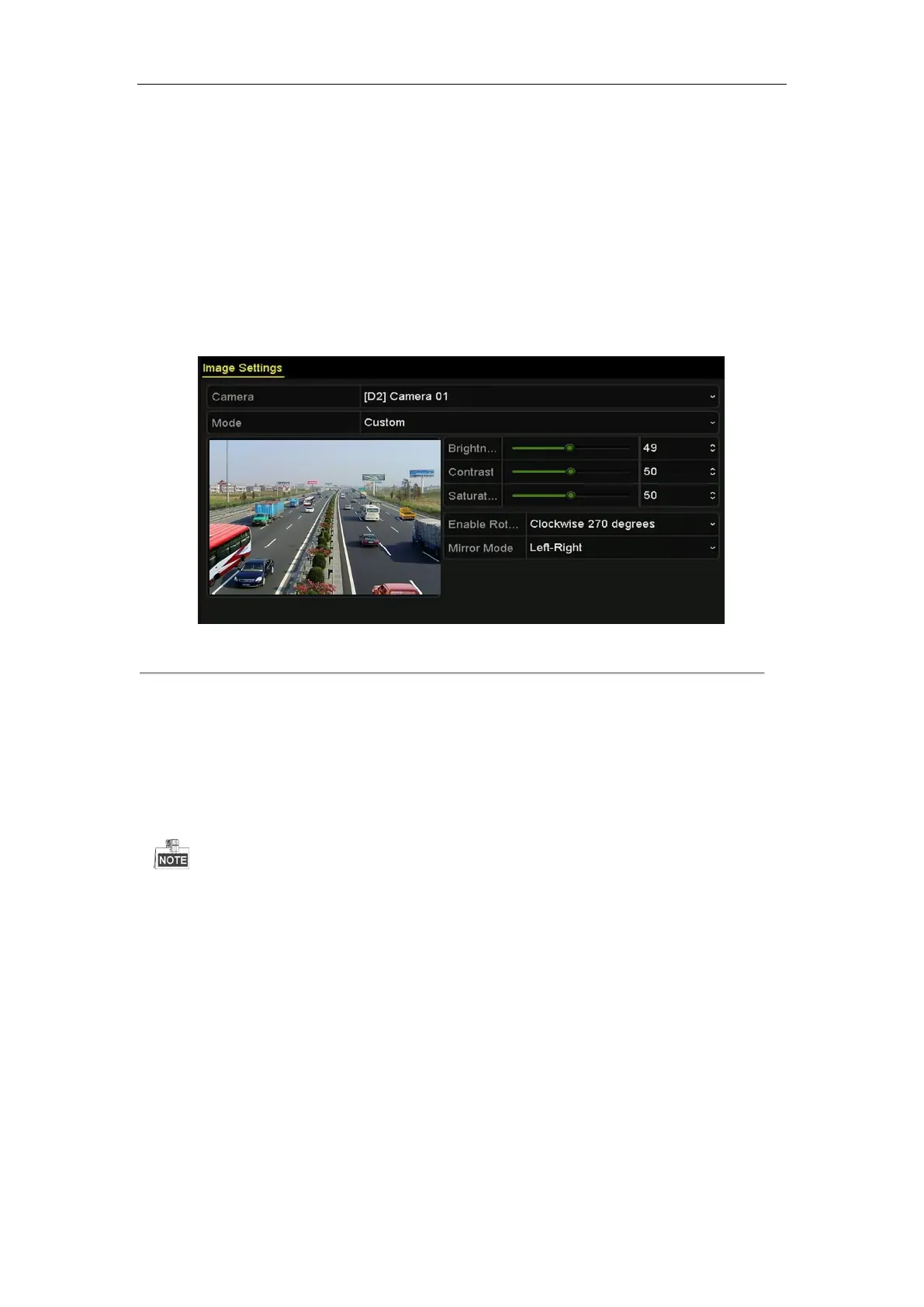

Figure 13. 4 Image Settings Interface
2. Select the camera to set image parameters.
3. Adjust the slider or click on the up/down arrow to set the value of the brightness, contrast or saturation.
4. Select the Enable Rotate function to Clockwise 270 degrees or OFF. When OFF is selected, the image is
restored to original.
5. Select the Mirror Mode to Left-Right, Up-Down, Center or OFF. When OFF is selected, the image is
restored to original.
The Rotate and Mirror functions must be supported by the connected IP camera.
The image parameters adjustment can affect both the live view and the recording quality.
6. Click the Apply button to save the settings.
