Network Video Recorder User Manual
54

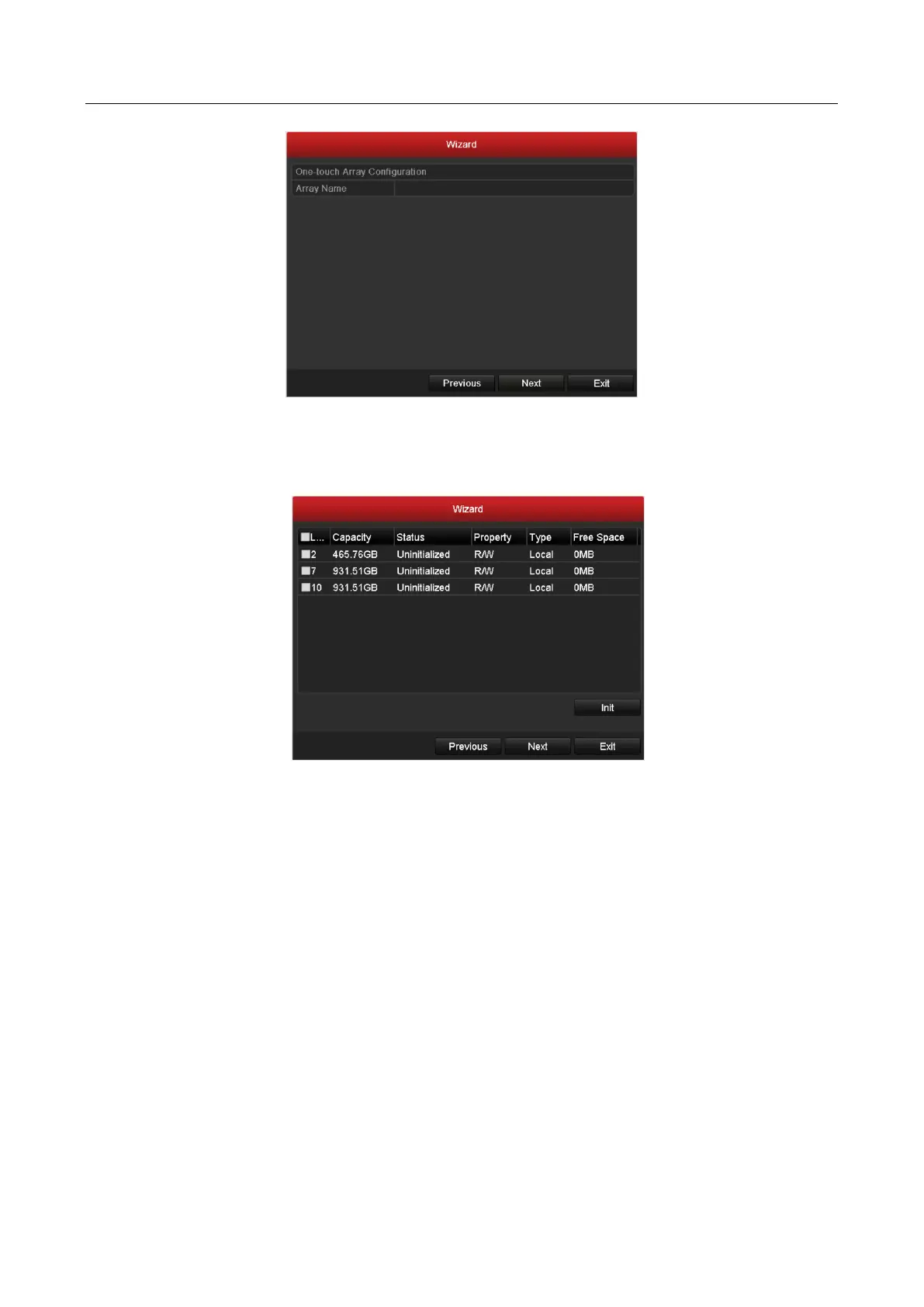

Figure 2-21 Array Management
Step 8 Click Next button after you configured the network parameters, which takes you to the HDD
Management window, shown in Figure 2-22.
Figure 2-22 HDD Management
Step 9 To initialize the HDD, click the Init button. Initialization removes all the data saved in the
HDD.
Step 10 Click Next button. You enter the Adding IP Camera interface.
Step 11 Click Search to search the online IP Camera and the Security status shows whether it is
active or inactive. Before adding the camera, make sure the IP camera to be added is in
active status.
If the camera is in inactive status, you can click the inactive icon of the camera to set the
password to activate it. You can also select multiple cameras from the list and click the
One-touch Activate to activate the cameras in batch.
Click the Add to add the camera.
