HIKVISION DS-7732NI-E4 User Manual

Network Video Recorder User Manual
171

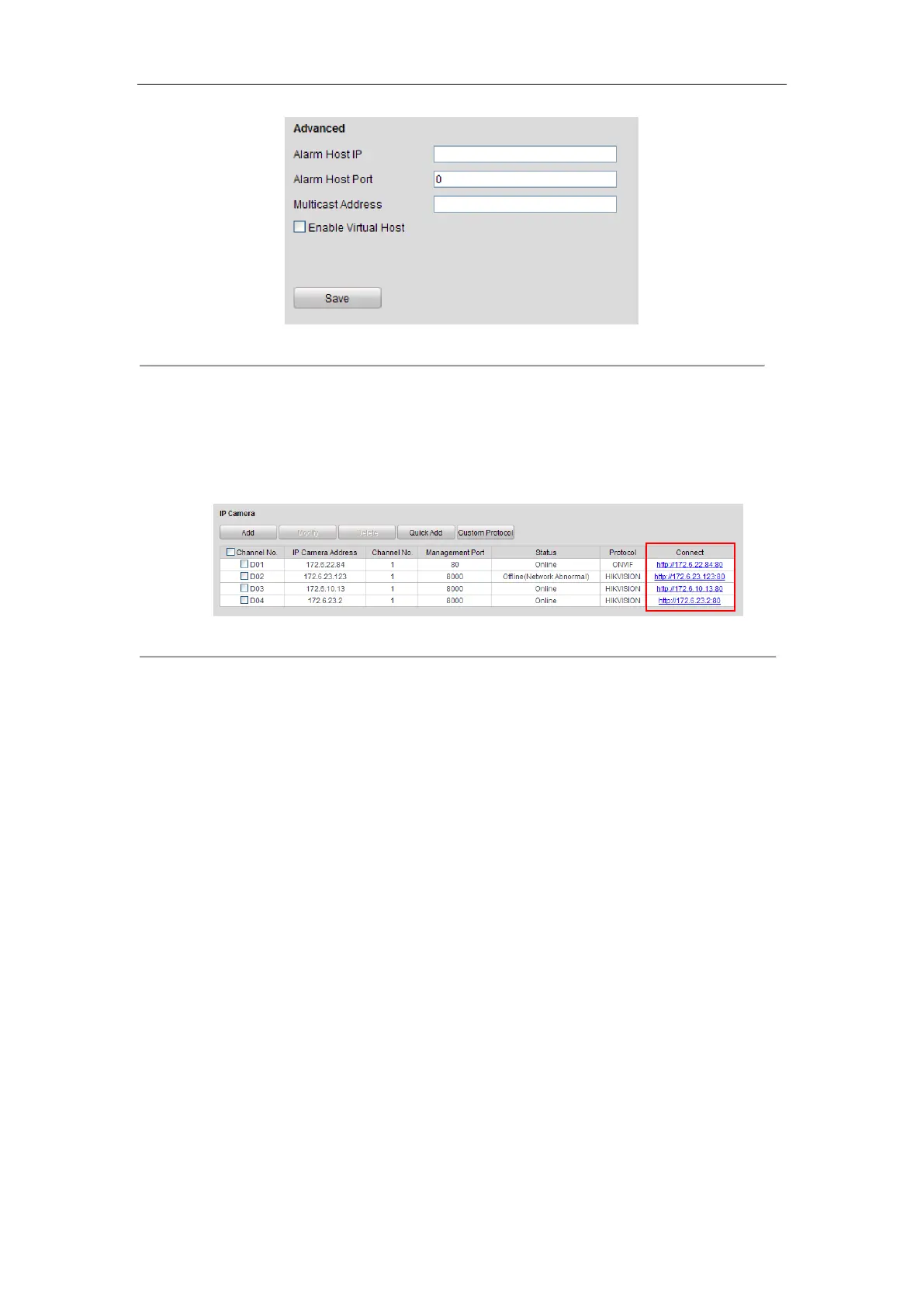

Figure 11. 31 Advanced Settings Interface
2. Check the checkbox of the Enable Virtual Host.
3. Click the Save button to save the setting.
4. Enter the IP camera management interface of NVR. The Connect column appears on the right-most side of
the camera list, as shown in the Figure 11. 32.
Configuration > Remote Configuration > Camera Management > IP Camera
Figure 11. 32 Connect to IP Camera
5. Click the link and the page of IP camera management appears.

HIKVISION DS-7732NI-E4 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
HDD interface	Serial ATA
Maximum storage capacity	24 TB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
