Education Sharing System
9

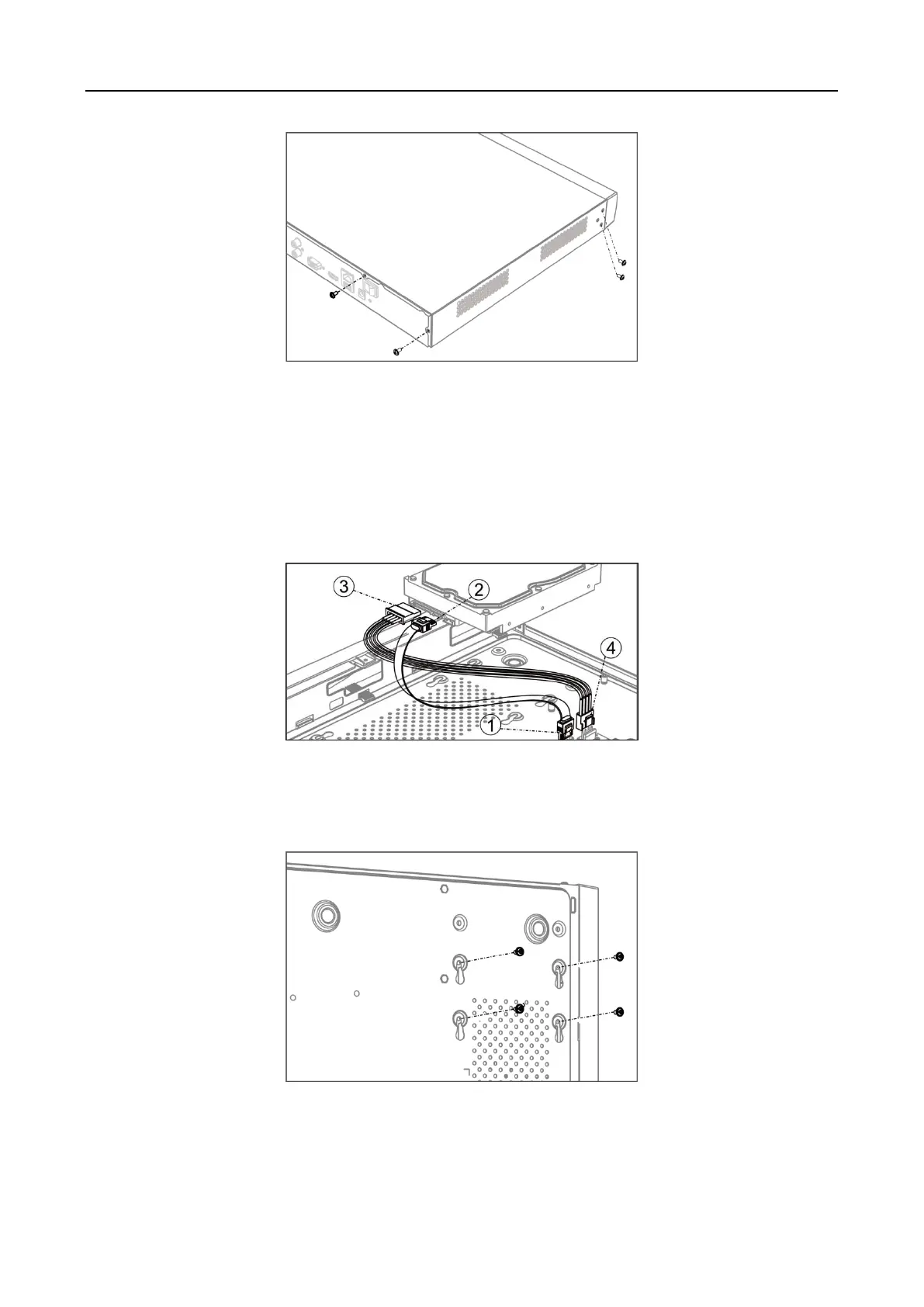

Figure 2-1 Unfasten Screws
Step 2 Connect the data cable and hard disk power cable.
1) Connect the data cable with the device motherboard data port.
2) Connect the data cable with the hard disk data port.
3) Connect the hard disk power cable with the hard disk power port.
4) Connect the hard disk power cable with the device motherboard power supply port.
Figure 2-2 Connect Hard Disk and Motherboard
Step 3 Fix the hard disk on the bottom panel by fastening the screws between the bottom panel
and hard disk.
Figure 2-3 Fix Hard Disk
Step 4 Reinstall the cover and fasten the screws on the rear and side panel.
